Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID 676770582
Organism
Sisymbrium irio
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Sisymbrieae; Sisymbrium
Family MYB_related
Protein Properties Length: 198aa    MW: 22779.8 Da    PI: 9.8575
Description MYB_related family protein
Gene Model
Gene Model ID Type Source Coding Sequence
676770582genomeVEGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding49.51e-153881348
                     SS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHHT CS
  Myb_DNA-binding  3 rWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqkyl 48
                     +++++Ed+l+++++++lG++ W++Ia +++ gRt+++++ +w +yl
        676770582 38 NFSKDEDDLILKLHALLGNR-WSLIAGRLP-GRTDNEVRIHWETYL 81
                     79******************.*********.************997 PP

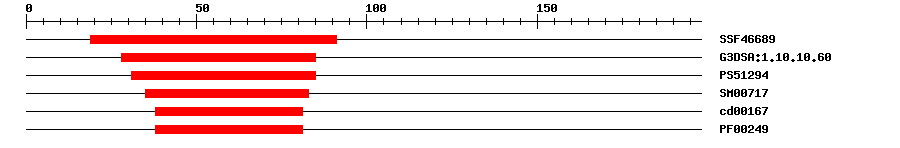

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SuperFamilySSF466891.05E-161991IPR009057Homeodomain-like
Gene3DG3DSA:1.10.10.601.8E-212885IPR009057Homeodomain-like
PROSITE profilePS5129424.3873185IPR017930Myb domain
SMARTSM007175.9E-153583IPR001005SANT/Myb domain
CDDcd001672.94E-123881No hitNo description
PfamPF002491.7E-143881IPR001005SANT/Myb domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0009651Biological Processresponse to salt stress
GO:0009718Biological Processanthocyanin-containing compound biosynthetic process
GO:0009723Biological Processresponse to ethylene
GO:0009737Biological Processresponse to abscisic acid
GO:0009739Biological Processresponse to gibberellin
GO:0009751Biological Processresponse to salicylic acid
GO:0009753Biological Processresponse to jasmonic acid
GO:0010023Biological Processproanthocyanidin biosynthetic process
GO:0046686Biological Processresponse to cadmium ion
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 198 aa     Download sequence    Send to blast
MNKIRHRALS RPSGMLHRAK RYRVRGRNYA KPELKQSNFS KDEDDLILKL HALLGNRWSL  60
IAGRLPGRTD NEVRIHWETY LKRKLMKMGI DPTNHRLYHH TNYISRRYVN SSYKKDETDI  120
ISDQFSSVSE SCDMTLLPVS STNCSEDNAS AGHSRLPDLN IGLLPMKTVT SLPVCSLQES  180
SESSNYDPTS QETLLLFR
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1a5j_A8e-16198542108B-MYB
Search in ModeBase
Cis-element ? help Back to Top
SourceLink
PlantRegMap676770582
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankDQ4683460.0DQ468346.1 Isatis tinctoria putative MYB mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_018461377.11e-117PREDICTED: myb-related protein 308-like
TrEMBLA0A397YSN51e-118A0A397YSN5_BRACM; Uncharacterized protein
STRINGBo6g112670.11e-116(Brassica oleracea)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM4282646
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G71030.11e-101MYB-like 2
