Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID 678342352
Organism
Utricularia gibba
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; asterids; lamiids; Lamiales; Lentibulariaceae; Utricularia
Family bHLH
Protein Properties Length: 201aa    MW: 22395.3 Da    PI: 5.6957
Description bHLH family protein
Gene Model
Gene Model ID Type Source Coding Sequence
678342352genomeUGSPView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1HLH26.61.1e-08120160954
                HHHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHH CS
        HLH   9 ErrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksL 54
                 r RR+ri +++  L++l+P       +K++ a++L +A++Y+k L
  678342352 120 ARHRRERISERIRILQRLVPGG-----TKMDTASMLDEAIHYVKFL 160
                699*****************87.....8****************98 PP

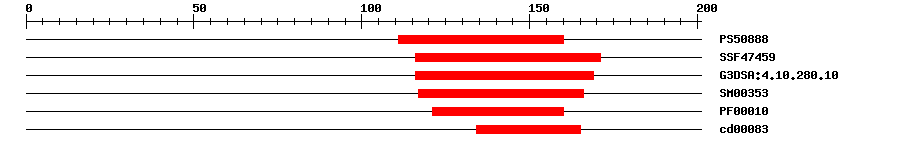

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5088815.123111160IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
SuperFamilySSF474592.09E-14116171IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
Gene3DG3DSA:4.10.280.103.3E-13116169IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
SMARTSM003532.1E-13117166IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
PfamPF000105.1E-6121160IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
CDDcd000833.80E-6134165No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 201 aa     Download sequence    Send to blast
MDFLTPENED QMEMMLMQIE KHLPDFSSPS NNSGSSSNPI IDFSNQPPNP NLPVSSCEPA  60
GATPFLQREG EGKRASPMAA MREMIFRIAA MQPIQIDPES VKPPKRRNVK ISSDPQSVAA  120
RHRRERISER IRILQRLVPG GTKMDTASML DEAIHYVKFL KSQVESLEQV STINGTLPPP  180
ESHFPTGTYF PATNFEDPSS S
Functional Description ? help Back to Top
Source Description
UniProtRequired for the female reproductive tract development and fertility. {ECO:0000269|PubMed:17855426}.
Cis-element ? help Back to Top
SourceLink
PlantRegMap678342352
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Negatively regulated by ARF3/ETT in the abaxial gynoecium. {ECO:0000269|PubMed:17855426}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_022880750.15e-63transcription factor HEC1-like
SwissprotQ9SND42e-46HEC2_ARATH; Transcription factor HEC2
TrEMBLA0A2G9G6X73e-64A0A2G9G6X7_9LAMI; Uncharacterized protein
STRINGAquca_010_00306.11e-56(Aquilegia coerulea)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
AsteridsOGEA75223101
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G50330.15e-43bHLH family protein
Publications ? help Back to Top
  1. Skinner MK,Rawls A,Wilson-Rawls J,Roalson EH
    Basic helix-loop-helix transcription factor gene family phylogenetics and nomenclature.
    Differentiation, 2010. 80(1): p. 1-8
    [PMID:20219281]
  2. Zhu L, et al.
    A Negative Feedback Loop between PHYTOCHROME INTERACTING FACTORs and HECATE Proteins Fine-Tunes Photomorphogenesis in Arabidopsis.
    Plant Cell, 2016. 28(4): p. 855-74
    [PMID:27073231]
