Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID 678453351
Organism
Utricularia gibba
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; asterids; lamiids; Lamiales; Lentibulariaceae; Utricularia
Family MYB_related
Protein Properties Length: 93aa    MW: 10085.3 Da    PI: 5.1441
Description MYB_related family protein
Gene Model
Gene Model ID Type Source Coding Sequence
678453351genomeUGSPView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding30.49e-101153444
                     S-HHHHHHHHHHHHHTTTT...-HHHHHHHHTTTS-HHHHHHHH CS
  Myb_DNA-binding  4 WTteEdellvdavkqlGgg...tWktIartmgkgRtlkqcksrw 44
                     WT+eE + +  a + + ++   +W+ +ar +g gRt++++k ++
        678453351 11 WTAEENKAFEIALAVFDKDtpdRWENVARSVG-GRTPEEVKKHY 53
                     ********************************.**********9 PP

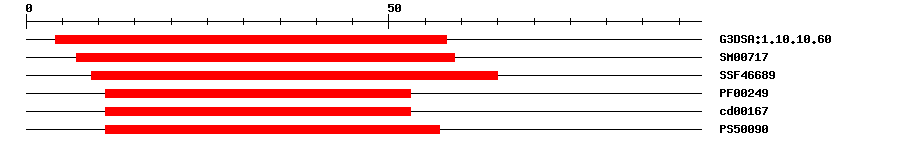

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:1.10.10.603.5E-6458IPR009057Homeodomain-like
SMARTSM007177.4E-8759IPR001005SANT/Myb domain
SuperFamilySSF466891.64E-13965IPR009057Homeodomain-like
PfamPF002493.5E-71153IPR001005SANT/Myb domain
CDDcd001672.72E-81153No hitNo description
PROSITE profilePS500907.1311157IPR017877Myb-like domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0009630Biological Processgravitropism
GO:0009793Biological Processembryo development ending in seed dormancy
GO:0010114Biological Processresponse to red light
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 93 aa     Download sequence    Send to blast
MASRSISGRG WTAEENKAFE IALAVFDKDT PDRWENVARS VGGRTPEEVK KHYDILLEDI  60
MCIESGKVPF PNYITTTVAA PAAAAGGSTE RGK
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
2cjj_A5e-38176176RADIALIS
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtInvolved in the dorsovental asymmetry of flowers. Promotes dorsal identity. {ECO:0000269|PubMed:15790677}.
Cis-element ? help Back to Top
SourceLink
PlantRegMap678453351
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Up-regulated by both CYC and DICH. {ECO:0000269|PubMed:15790677, ECO:0000269|PubMed:16236768}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_011092800.14e-37transcription factor RADIALIS-like isoform X1
SwissprotQ58FS38e-38RAD_ANTMA; Transcription factor RADIALIS
TrEMBLA0A2G9H3T47e-37A0A2G9H3T4_9LAMI; Uncharacterized protein
STRINGXP_009594360.14e-36(Nicotiana tomentosiformis)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
AsteridsOGEA20224231
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G75250.16e-33RAD-like 6
Publications ? help Back to Top
  1. Corley SB,Carpenter R,Copsey L,Coen E
    Floral asymmetry involves an interplay between TCP and MYB transcription factors in Antirrhinum.
    Proc. Natl. Acad. Sci. U.S.A., 2005. 102(14): p. 5068-73
    [PMID:15790677]
  2. Costa MM,Fox S,Hanna AI,Baxter C,Coen E
    Evolution of regulatory interactions controlling floral asymmetry.
    Development, 2005. 132(22): p. 5093-101
    [PMID:16236768]
  3. Stevenson CE, et al.
    Crystallization and preliminary X-ray analysis of the RAD protein from Antirrhinum majus.
    Acta Crystallogr. Sect. F Struct. Biol. Cryst. Commun., 2005. 61(Pt 10): p. 885-8
    [PMID:16511186]
  4. Stevenson CE, et al.
    Crystal structure of the MYB domain of the RAD transcription factor from Antirrhinum majus.
    Proteins, 2006. 65(4): p. 1041-5
    [PMID:17044043]
