Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID 678460538
Organism
Utricularia gibba
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; asterids; lamiids; Lamiales; Lentibulariaceae; Utricularia
Family SBP
Protein Properties Length: 151aa    MW: 16792.8 Da    PI: 9.0957
Description SBP family protein
Gene Model
Gene Model ID Type Source Coding Sequence
678460538genomeUGSPView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SBP135.22e-4229105177
                --SSTT-----TT--HHHHHTT--HHHHT-S-EEETTEEEEE-TTTSSEEETTT--SS--S-STTTT-------S-- CS
        SBP   1 lCqvegCeadlseakeyhrrhkvCevhskapvvlvsgleqrfCqqCsrfhelsefDeekrsCrrrLakhnerrrkkq 77
                +Cq+++C++dls ak+yhrrhkvCe hskap+v+v+g+ qrfCqqCsrfhelsefDe+krsCrrrLa+hnerrrk+
  678460538  29 VCQADRCSVDLSYAKTYHRRHKVCEPHSKAPAVVVAGILQRFCQQCSRFHELSEFDESKRSCRRRLAGHNERRRKNP 105
                6*************************************************************************985 PP

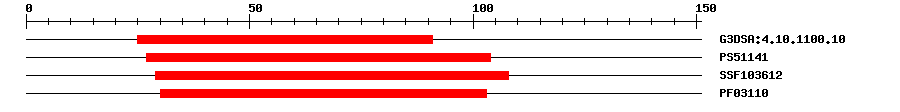

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:4.10.1100.105.4E-342591IPR004333Transcription factor, SBP-box
PROSITE profilePS5114131.92327104IPR004333Transcription factor, SBP-box
SuperFamilySSF1036123.27E-3929108IPR004333Transcription factor, SBP-box
PfamPF031105.5E-3330103IPR004333Transcription factor, SBP-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0010321Biological Processregulation of vegetative phase change
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 151 aa     Download sequence    Send to blast
MSAGAAVVII GDDDQRKMST PRKPPAAKVC QADRCSVDLS YAKTYHRRHK VCEPHSKAPA  60
VVVAGILQRF CQQCSRFHEL SEFDESKRSC RRRLAGHNER RRKNPVDNSA AEGGGGRRKG  120
GVGSGGQGEE EEEDPMRVEE NGDYNKFHVR L
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1ul4_A7e-3724103584squamosa promoter binding protein-like 4
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtTrans-acting factor that binds specifically to the consensus nucleotide sequence 5'-TNCGTACAA-3' of AP1 promoter. Promotes both vegetative phase change and flowering. {ECO:0000269|PubMed:10524240, ECO:0000269|PubMed:16914499}.
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00634PBMTransfer from PK22320.1Download
Motif logo
Cis-element ? help Back to Top
SourceLink
PlantRegMap678460538
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Negatively regulated by microRNAs miR156 and miR157. {ECO:0000305|PubMed:12202040, ECO:0000305|PubMed:16914499}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_011100353.11e-46squamosa promoter-binding protein 1-like
SwissprotQ9S7A91e-39SPL4_ARATH; Squamosa promoter-binding-like protein 4
TrEMBLA0A075BS075e-49A0A075BS07_POGCB; Squamosa promoter binding protein-like 3 (Fragment)
STRINGVIT_12s0028g03350.t012e-43(Vitis vinifera)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
AsteridsOGEA74924105
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G15270.16e-40squamosa promoter binding protein-like 5
Publications ? help Back to Top
  1. Jorgensen SA,Preston JC
    Differential SPL gene expression patterns reveal candidate genes underlying flowering time and architectural differences in Mimulus and Arabidopsis.
    Mol. Phylogenet. Evol., 2014. 73: p. 129-39
    [PMID:24508602]
  2. Hyun Y, et al.
    Site-directed mutagenesis in Arabidopsis thaliana using dividing tissue-targeted RGEN of the CRISPR/Cas system to generate heritable null alleles.
    Planta, 2015. 241(1): p. 271-84
    [PMID:25269397]
  3. Xu M, et al.
    Developmental Functions of miR156-Regulated SQUAMOSA PROMOTER BINDING PROTEIN-LIKE (SPL) Genes in Arabidopsis thaliana.
    PLoS Genet., 2016. 12(8): p. e1006263
    [PMID:27541584]
  4. Ioannidi E, et al.
    Trichome patterning control involves TTG1 interaction with SPL transcription factors.
    Plant Mol. Biol., 2016. 92(6): p. 675-687
    [PMID:27631431]
  5. Jung JH,Lee HJ,Ryu JY,Park CM
    SPL3/4/5 Integrate Developmental Aging and Photoperiodic Signals into the FT-FD Module in Arabidopsis Flowering.
    Mol Plant, 2016. 9(12): p. 1647-1659
    [PMID:27815142]
