Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Achn196271
Organism
Actinidia chinensis
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; asterids; Ericales; Actinidiaceae; Actinidia
Family MIKC_MADS
Protein Properties Length: 246aa    MW: 28044.7 Da    PI: 8.8419
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Achn196271genomeIKGCView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF98.82.2e-31959151
                S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
      SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                krienk+nrqvtf+kRrng+lKKA+ELSvLCdaeva+i+fs++gkl+e++s
  Achn196271  9 KRIENKINRQVTFAKRRNGLLKKAYELSVLCDAEVALIVFSNRGKLHEFCS 59
                79***********************************************96 PP
2K-box951.2e-31871721297
       K-box  12 akaeslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenkaLrkk 97
                 a + s+qqe+ kLk ++e Lqr+qR+llGedL++L+ keL++Le+qL+ slk+iRs++++++l+q+ +lq+ke++l+e+nk+L+++
  Achn196271  87 ALELSSQQEYLKLKGRYEALQRSQRNLLGEDLGPLNSKELESLERQLDMSLKQIRSTRTQYMLDQLTDLQRKEHALNEANKTLKQR 172
                 555689*****************************************************************************997 PP

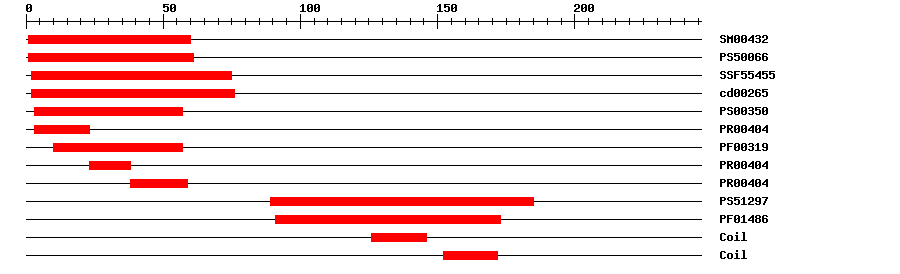

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SMARTSM004321.5E-41160IPR002100Transcription factor, MADS-box
PROSITE profilePS5006633.305161IPR002100Transcription factor, MADS-box
SuperFamilySSF554553.01E-33275IPR002100Transcription factor, MADS-box
CDDcd002656.62E-46276No hitNo description
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PRINTSPR004043.1E-32323IPR002100Transcription factor, MADS-box
PfamPF003193.0E-261057IPR002100Transcription factor, MADS-box
PRINTSPR004043.1E-322338IPR002100Transcription factor, MADS-box
PRINTSPR004043.1E-323859IPR002100Transcription factor, MADS-box
PROSITE profilePS5129715.00589185IPR002487Transcription factor, K-box
PfamPF014861.4E-2591173IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0001708Biological Processcell fate specification
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0010093Biological Processspecification of floral organ identity
GO:0048481Biological Processplant ovule development
GO:0048833Biological Processspecification of floral organ number
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 246 aa     Download sequence    Send to blast
MGRGRVELKR IENKINRQVT FAKRRNGLLK KAYELSVLCD AEVALIVFSN RGKLHEFCST  60
SSMLKTLERY QKCNYGAPEP NVSAREALEL SSQQEYLKLK GRYEALQRSQ RNLLGEDLGP  120
LNSKELESLE RQLDMSLKQI RSTRTQYMLD QLTDLQRKEH ALNEANKTLK QRLWGDSQVN  180
SLQWHPNAQD HVDYSRQPAQ PQGGEAFFHP LDCEPTLQIG YQQNDPITVG GAGPSLNNYM  240
PGWLP*

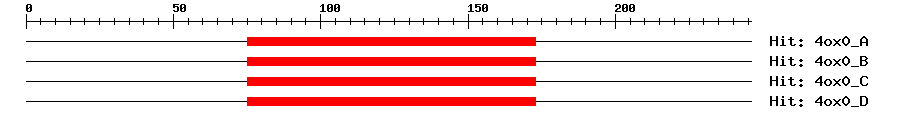

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
4ox0_A3e-46751731101Developmental protein SEPALLATA 3
4ox0_B3e-46751731101Developmental protein SEPALLATA 3
4ox0_C3e-46751731101Developmental protein SEPALLATA 3
4ox0_D3e-46751731101Developmental protein SEPALLATA 3
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor involved in flower development. {ECO:0000250|UniProtKB:Q0HA25}.
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00605ChIP-seqTransfer from AT1G24260Download
Motif logo
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankHQ1133620.0HQ113362.1 Actinidia chinensis SEP3 mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_027096723.11e-155agamous-like MADS-box protein AGL9 homolog isoform X2
SwissprotQ8LLR01e-155MADS4_VITVI; Agamous-like MADS-box protein MADS4
TrEMBLA0A2R6P3850.0A0A2R6P385_ACTCH; Agamous-like MADS-box protein
STRINGSolyc05g015750.2.11e-154(Solanum lycopersicum)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
AsteridsOGEA4024625
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G24260.11e-126MIKC_MADS family protein
Publications ? help Back to Top
  1. Jaillon O, et al.
    The grapevine genome sequence suggests ancestral hexaploidization in major angiosperm phyla.
    Nature, 2007. 449(7161): p. 463-7
    [PMID:17721507]
  2. Díaz-Riquelme J,Lijavetzky D,Martínez-Zapater JM,Carmona MJ
    Genome-wide analysis of MIKCC-type MADS box genes in grapevine.
    Plant Physiol., 2009. 149(1): p. 354-69
    [PMID:18997115]
  3. Varkonyi-Gasic E, et al.
    Identification and characterization of flowering genes in kiwifruit: sequence conservation and role in kiwifruit flower development.
    BMC Plant Biol., 2011. 11: p. 72
    [PMID:21521532]
  4. Grimplet J,Martínez-Zapater JM,Carmona MJ
    Structural and functional annotation of the MADS-box transcription factor family in grapevine.
    BMC Genomics, 2016. 17: p. 80
    [PMID:26818751]
