Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Aqcoe7G053700.4.p
Organism
Aquilegia coerulea
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; stem eudicotyledons; Ranunculales; Ranunculaceae; Thalictroideae; Aquilegia
Family MIKC_MADS
Protein Properties Length: 255aa    MW: 28778.3 Da    PI: 9.7567
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Aqcoe7G053700.4.pgenomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF98.82.2e-31959151
                       S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
             SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                       krienk+nrqvtfskRrng+lKKA+ELSvLCdaev +iifss+gklye++s
  Aqcoe7G053700.4.p  9 KRIENKINRQVTFSKRRNGLLKKAYELSVLCDAEVGLIIFSSRGKLYEFAS 59
                       79***********************************************86 PP
2K-box106.24e-3580175599
              K-box   5 sgks.leeakaeslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenkaLr 95
                        +g+  +++++++ ++qe++kLk+++e+Lqr+qRhllGedL++Ls+keL++Le+qLe +l + R++K+++++eq+e+l++ke+ l ++nk+L+
  Aqcoe7G053700.4.p  80 DGTLaVADRETQGWYQEVSKLKAKYESLQRSQRHLLGEDLGPLSVKELHNLEKQLEGALAQARQRKTQVMMEQMEDLRRKERHLGDINKQLK 171
                        444468999*********************************************************************************** PP

              K-box  96 kkle 99
                        +kl+
  Aqcoe7G053700.4.p 172 NKLD 175
                        *987 PP

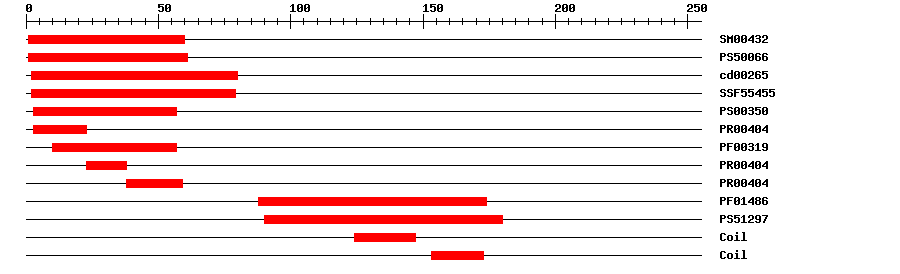

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SMARTSM004321.9E-41160IPR002100Transcription factor, MADS-box
PROSITE profilePS5006633.613161IPR002100Transcription factor, MADS-box
CDDcd002651.12E-43280No hitNo description
SuperFamilySSF554551.83E-32279IPR002100Transcription factor, MADS-box
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PRINTSPR004047.6E-33323IPR002100Transcription factor, MADS-box
PfamPF003198.3E-271057IPR002100Transcription factor, MADS-box
PRINTSPR004047.6E-332338IPR002100Transcription factor, MADS-box
PRINTSPR004047.6E-333859IPR002100Transcription factor, MADS-box
PfamPF014861.2E-3188174IPR002487Transcription factor, K-box
PROSITE profilePS5129717.13290180IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0009553Biological Processembryo sac development
GO:0009911Biological Processpositive regulation of flower development
GO:0010094Biological Processspecification of carpel identity
GO:0010228Biological Processvegetative to reproductive phase transition of meristem
GO:0010582Biological Processfloral meristem determinacy
GO:0045893Biological Processpositive regulation of transcription, DNA-templated
GO:0048455Biological Processstamen formation
GO:0048459Biological Processfloral whorl structural organization
GO:0048509Biological Processregulation of meristem development
GO:0048833Biological Processspecification of floral organ number
GO:0080060Biological Processintegument development
GO:0080112Biological Processseed growth
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 255 aa     Download sequence    Send to blast
MGRGRVELKR IENKINRQVT FSKRRNGLLK KAYELSVLCD AEVGLIIFSS RGKLYEFASA  60
GYGMSRTLER YQRSSYNSQD GTLAVADRET QGWYQEVSKL KAKYESLQRS QRHLLGEDLG  120
PLSVKELHNL EKQLEGALAQ ARQRKTQVMM EQMEDLRRKE RHLGDINKQL KNKLDAEGQA  180
PYRALQGSWE SNALVASNNF SMHASQSSSM DCEPTLQIGY HQFVSPEGGT SIPRTSAGEN  240
NNNNNNNFTQ GWAL*

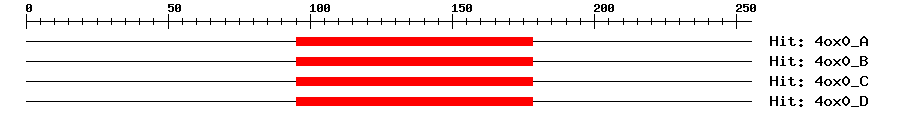

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
4ox0_A3e-229517822104Developmental protein SEPALLATA 3
4ox0_B3e-229517822104Developmental protein SEPALLATA 3
4ox0_C3e-229517822104Developmental protein SEPALLATA 3
4ox0_D3e-229517822104Developmental protein SEPALLATA 3
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor involved in flower development. {ECO:0000250|UniProtKB:Q0HA25}.
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00315DAPTransfer from AT2G45650Download
Motif logo
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankJX6802480.0JX680248.1 Aquilegia coerulea MADS-box protein AGL6 mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_026409535.11e-140MADS-box transcription factor 6-like
SwissprotQ8LLR11e-125MADS3_VITVI; Agamous-like MADS-box protein MADS3
TrEMBLK7X6Q61e-179K7X6Q6_AQUCA; MADS-box protein AGL6
STRINGAquca_013_00477.11e-174(Aquilegia coerulea)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT2G45650.11e-95AGAMOUS-like 6
Publications ? help Back to Top
  1. Jaillon O, et al.
    The grapevine genome sequence suggests ancestral hexaploidization in major angiosperm phyla.
    Nature, 2007. 449(7161): p. 463-7
    [PMID:17721507]
  2. Díaz-Riquelme J,Lijavetzky D,Martínez-Zapater JM,Carmona MJ
    Genome-wide analysis of MIKCC-type MADS box genes in grapevine.
    Plant Physiol., 2009. 149(1): p. 354-69
    [PMID:18997115]
  3. Grimplet J,Martínez-Zapater JM,Carmona MJ
    Structural and functional annotation of the MADS-box transcription factor family in grapevine.
    BMC Genomics, 2016. 17: p. 80
    [PMID:26818751]
