Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Bostr.2128s0112.1.p
Organism
Boechera stricta
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Boechereae; Boechera
Family E2F/DP
Protein Properties Length: 389aa    MW: 42749.9 Da    PI: 6.0947
Description E2F/DP family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Bostr.2128s0112.1.pgenomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1E2F_TDP86.52e-27103185271
              E2F_TDP   2 keksLrlltqkflklleksee.givtlnevakeLvse................dvknkrRRiYDilNVLealnliekkekneirwkg 71
                          ++++Lr++++k   ++ek+e+ g++t+neva+eLv+e                d+kn+rRR+YD+lNVL+a+++i+k +k+ei+w+g
  Bostr.2128s0112.1.p 103 SGRGLRQFSMK---VCEKVESkGRTTYNEVADELVAEfalpnndgtppdqqqyDEKNIRRRVYDALNVLMAMDIISK-DKKEIQWRG 185
                          689********...*****999*******************************************************.*******98 PP

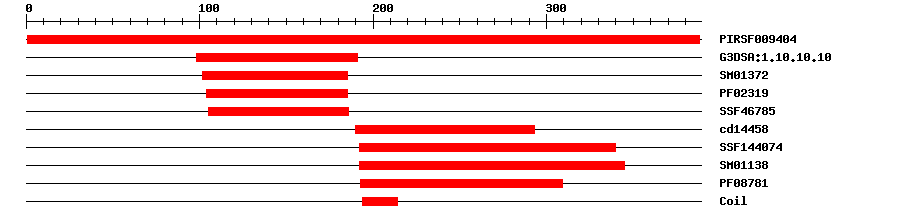

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PIRSFPIRSF0094041.9E-1401388IPR015648Transcription factor DP
Gene3DG3DSA:1.10.10.105.1E-4698191IPR011991Winged helix-turn-helix DNA-binding domain
SMARTSM013721.7E-35102185IPR003316E2F/DP family, winged-helix DNA-binding domain
PfamPF023193.3E-25104185IPR003316E2F/DP family, winged-helix DNA-binding domain
SuperFamilySSF467853.4E-21105186IPR011991Winged helix-turn-helix DNA-binding domain
CDDcd144581.62E-42190293IPR014889Transcription factor DP, C-terminal
SuperFamilySSF1440747.85E-42192340No hitNo description
SMARTSM011385.2E-67192345IPR014889Transcription factor DP, C-terminal
PfamPF087815.5E-42193309IPR014889Transcription factor DP, C-terminal
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0042023Biological ProcessDNA endoreduplication
GO:0005634Cellular Componentnucleus
GO:0005667Cellular Componenttranscription factor complex
GO:0005737Cellular Componentcytoplasm
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046982Molecular Functionprotein heterodimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 389 aa     Download sequence    Send to blast
MTTTGSNSNH NHHEDGFGKN NNNNPSTRSW GTAVSGQSVS TSGSMGSPSS RSEQTTTVAT  60
SASDSTFLRL NNLDIQGDDA GSQGASGGKK KKRGQRAAGP DKSGRGLRQF SMKVCEKVES  120
KGRTTYNEVA DELVAEFALP NNDGTPPDQQ QYDEKNIRRR VYDALNVLMA MDIISKDKKE  180
IQWRGLPRTS LSDIEELKNE RLSLRNRIEK KTAYSQELEE QYVGLQNLIR RNEHLYSSGN  240
APSGGVALPF ILVQTRPHAT VEVEISEDMQ LVHFDFNSTP FELHDDNFVL KTMKFCDQPP  300
QQPNGHNNSQ VSSHNFAPEN RNEGPSTGPA PQPDMYQSHL QPQQHQLHTQ PQIIPTPETN  360
DDASVADTAP VISPSVPGIM NSSVKPEN*
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1cf7_B5e-3796190193PROTEIN (TRANSCRIPTION FACTOR DP-2)
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtInvolved in the regulation of the G1/S transition. Increases the DNA binding activity of E2F proteins after heterodimerization. The complex DPB/E2FC restricts cell division and lateral root initiation and may function as a negative regulator of E2F-regulated genes. The interaction with SKP2A is controlled by auxin. {ECO:0000269|PubMed:11891240, ECO:0000269|PubMed:16920782}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapBostr.2128s0112.1.p
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAJ2945320.0AJ294532.1 Arabidopsis thaliana mRNA for DP-like protein (dpb gene).
GenBankAK2281480.0AK228148.1 Arabidopsis thaliana mRNA for transcription factor - like protein, complete cds, clone: RAFL14-61-J08.
GenBankAY0860180.0AY086018.1 Arabidopsis thaliana clone 206791 mRNA, complete sequence.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_010423720.10.0PREDICTED: transcription factor-like protein DPB isoform X1
RefseqXP_010423721.10.0PREDICTED: transcription factor-like protein DPB isoform X1
RefseqXP_010423722.10.0PREDICTED: transcription factor-like protein DPB isoform X1
RefseqXP_010452220.10.0PREDICTED: transcription factor-like protein DPB isoform X1
SwissprotQ9FNY20.0DPB_ARATH; Transcription factor-like protein DPB
TrEMBLD7LWN70.0D7LWN7_ARALL; Uncharacterized protein
STRINGBostr.2128s0112.1.p0.0(Boechera stricta)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM61392641
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT5G03415.10.0Transcription factor DP
