Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Bostr.24513s0055.1.p
Organism
Boechera stricta
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Boechereae; Boechera
Family bHLH
Protein Properties Length: 154aa    MW: 17138.3 Da    PI: 7.4095
Description bHLH family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Bostr.24513s0055.1.pgenomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1HLH13.50.0001438781055
                          HHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHHH CS
                   HLH 10 rrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksLq 55
                          + R d++ ++++ L++l+ +      +K + a++L + ++YI+ Lq
  Bostr.24513s0055.1.p 38 KERKDKLGERISALQQLVSPY-----GKTDTASVLLEGMQYIQFLQ 78
                          67899999***********99.....9******************9 PP

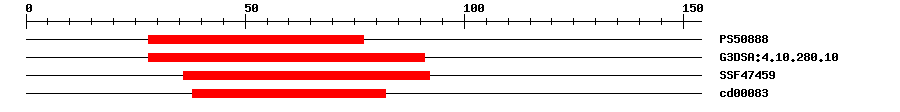

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5088811.0452877IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
Gene3DG3DSA:4.10.280.104.6E-92891IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
SuperFamilySSF474592.88E-113692IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
CDDcd000832.34E-53882No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0009739Biological Processresponse to gibberellin
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 154 aa     Download sequence    Send to blast
MEYSRDSAGV MMDNKRNVCS LEENSIKRHK SDISFSSKER KDKLGERISA LQQLVSPYGK  60
TDTASVLLEG MQYIQFLQEQ VKVLSAPYLQ VTPTTTQEEL EEYSLRSRGL CLVPLEYTSG  120
VAQTNGADIW APVKKTPTSP HAFNLSSSNS PFR*
Cis-element ? help Back to Top
SourceLink
PlantRegMapBostr.24513s0055.1.p
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAJ5760411e-159AJ576041.1 Arabidopsis thaliana mRNA for bHLH transcription factor (bHLH-beta gene).
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_023640042.11e-107transcription factor bHLH154
SwissprotQ7XJU16e-95BH154_ARATH; Transcription factor bHLH154
TrEMBLR0HEN71e-106R0HEN7_9BRAS; Uncharacterized protein
STRINGBostr.24513s0055.1.p1e-111(Boechera stricta)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM33162761
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT2G31730.13e-97bHLH family protein
