Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Bostr.30275s0092.1.p
Organism
Boechera stricta
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Boechereae; Boechera
Family bHLH
Protein Properties Length: 468aa    MW: 52111.7 Da    PI: 6.6031
Description bHLH family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Bostr.30275s0092.1.pgenomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1HLH38.91.6e-12320366455
                           HHHHHHHHHHHHHHHHHHHHHCTSCC.C...TTS-STCHHHHHHHHHHHHHHH CS
                   HLH   4 ahnerErrRRdriNsafeeLrellPk.askapskKlsKaeiLekAveYIksLq 55
                           +h e+Er+RR+++N++f  Lr ++P+ +      K++Ka+ L  A+ YI ++q
  Bostr.30275s0092.1.p 320 NHVEAERQRREKLNQRFYALRAVVPNiS------KMDKASLLADAITYITDMQ 366
                           799***********************66......***************9998 PP

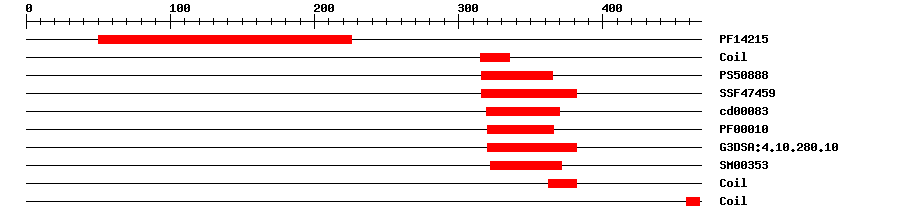

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PfamPF142153.8E-4150226IPR025610Transcription factor MYC/MYB N-terminal
PROSITE profilePS5088816.234316365IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
SuperFamilySSF474591.7E-17316382IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
CDDcd000835.25E-14319370No hitNo description
PfamPF000104.2E-10320366IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
Gene3DG3DSA:4.10.280.101.0E-16320382IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
SMARTSM003531.6E-14322371IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 468 aa     Download sequence    Send to blast
MGQKFWENLE DRAMVESTIG SEACDFFISS ASASNTALTK LVAPPSDPNL QQGLRHVVEG  60
SDWDYALFWL ASNVNSSDGC VLIWGDGHCC VKKGVSGEDY SQQDETKRRV LRKLHLSFVG  120
SDEDHRLVKS GALTDLDMFY LASLYFSFRC DSSKYGPAGT YVSGKPLWAA DLPSCLSYYR  180
VRSFLARSAG FQTVLSVPVN CGVVELGSLR NIPEDKSVIE MVKSVFGGSD FVQAKEAPKI  240
FGRQLSLGGS KPRSMSINFS PKTEDDSGFS LEAYEVQAIG GSNQVYGYEQ GKDETLYLTD  300
EQKPRKRGRK PANGREEALN HVEAERQRRE KLNQRFYALR AVVPNISKMD KASLLADAIT  360
YITDMQKKIR VYETEKQIMK RRETNQITPA EVDYQQRHDD AVLRVSCPLE THPVSKVIQT  420
LRENEVTPHD SNVAVTEEGV VHTFTLRPQG GCTAEQLKDR LLASLSQ*

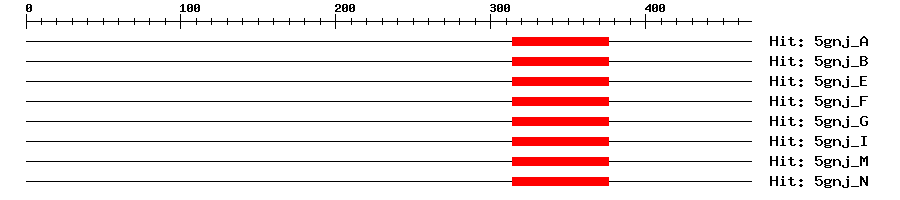

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
5gnj_A5e-26314376264Transcription factor MYC2
5gnj_B5e-26314376264Transcription factor MYC2
5gnj_E5e-26314376264Transcription factor MYC2
5gnj_F5e-26314376264Transcription factor MYC2
5gnj_G5e-26314376264Transcription factor MYC2
5gnj_I5e-26314376264Transcription factor MYC2
5gnj_M5e-26314376264Transcription factor MYC2
5gnj_N5e-26314376264Transcription factor MYC2
Search in ModeBase
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00099PBMTransfer from AT4G16430Download
Motif logo
Cis-element ? help Back to Top
SourceLink
PlantRegMapBostr.30275s0092.1.p
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: By UV treatment. {ECO:0000269|PubMed:12679534}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAL1615440.0AL161544.2 Arabidopsis thaliana DNA chromosome 4, contig fragment No. 44.
GenBankCP0026870.0CP002687.1 Arabidopsis thaliana chromosome 4 sequence.
GenBankZ973410.0Z97341.2 Arabidopsis thaliana DNA chromosome 4, ESSA I FCA contig fragment No. 6.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_010434826.10.0PREDICTED: transcription factor bHLH3
RefseqXP_010434827.10.0PREDICTED: transcription factor bHLH3
SwissprotO234870.0BH003_ARATH; Transcription factor bHLH3
TrEMBLA0A178V6530.0A0A178V653_ARATH; JAM3
STRINGBostr.30275s0092.1.p0.0(Boechera stricta)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM66112741
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT4G16430.10.0bHLH family protein
Publications ? help Back to Top
  1. Skinner MK,Rawls A,Wilson-Rawls J,Roalson EH
    Basic helix-loop-helix transcription factor gene family phylogenetics and nomenclature.
    Differentiation, 2010. 80(1): p. 1-8
    [PMID:20219281]
  2. Sasaki-Sekimoto Y,Saito H,Masuda S,Shirasu K,Ohta H
    Comprehensive analysis of protein interactions between JAZ proteins and bHLH transcription factors that negatively regulate jasmonate signaling.
    Plant Signal Behav, 2014. 9(1): p. e27639
    [PMID:24394987]
  3. Fonseca S, et al.
    bHLH003, bHLH013 and bHLH017 are new targets of JAZ repressors negatively regulating JA responses.
    PLoS ONE, 2014. 9(1): p. e86182
    [PMID:24465948]
  4. Ezer D, et al.
    The G-Box Transcriptional Regulatory Code in Arabidopsis.
    Plant Physiol., 2017. 175(2): p. 628-640
    [PMID:28864470]
