Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Bostr.6864s0212.1.p
Organism
Boechera stricta
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Boechereae; Boechera
Family bHLH
Protein Properties Length: 233aa    MW: 25674.3 Da    PI: 10.0434
Description bHLH family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Bostr.6864s0212.1.pgenomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1HLH26.31.3e-08135175954
                          HHHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHH CS
                  HLH   9 ErrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksL 54
                           r RR+ri +++  L++l+P       +K++ a++L +A++Y+k L
  Bostr.6864s0212.1.p 135 ARHRRERISERIRILQRLVPGG-----TKMDTASMLDEAIHYVKFL 175
                          699*****************87.....8****************98 PP

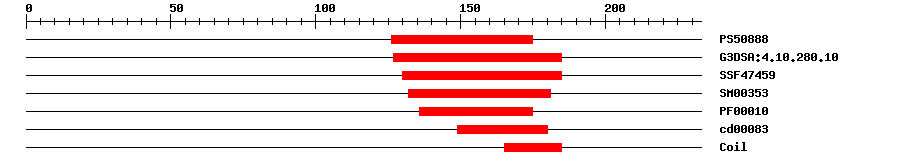

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5088815.434126175IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
Gene3DG3DSA:4.10.280.104.2E-14127185IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
SuperFamilySSF474591.31E-14130185IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
SMARTSM003538.3E-14132181IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
PfamPF000106.4E-6136175IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
CDDcd000831.43E-5149180No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0010500Biological Processtransmitting tissue development
GO:0048462Biological Processcarpel formation
GO:0080126Biological Processovary septum development
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 233 aa     Download sequence    Send to blast
MDNSDILMNM MMQQMEKLPE HFSNSNPNPN SHNTMMLTES NTHPFVFNST HTHHLPLDST  60
ISHHQPGLNF RYAPSTSSSL PEKRGGCSDN ANMAAMREMI FRIAVMQPIH IDPESVKPPK  120
RKNVRISKDP QSVAARHRRE RISERIRILQ RLVPGGTKMD TASMLDEAIH YVKFLKKQVQ  180
SLEEHAVVNG GGMTSVAGVA LAGTGGGGYG GKGCGTMRSD HHQMLGNAQI LR*
Functional Description ? help Back to Top
Source Description
UniProtRequired for the female reproductive tract development and fertility. {ECO:0000269|PubMed:17855426}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapBostr.6864s0212.1.p
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Negatively regulated by ARF3/ETT in the abaxial gynoecium. {ECO:0000269|PubMed:17855426}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAK1756790.0AK175679.1 Arabidopsis thaliana mRNA for putative bHLH transcription factor (bHLH037), complete cds, clone: RAFL22-18-N14.
GenBankAK1759120.0AK175912.1 Arabidopsis thaliana mRNA for putative bHLH transcription factor (bHLH037), complete cds, clone: RAFL22-57-C09.
GenBankAL1329760.0AL132976.2 Arabidopsis thaliana DNA chromosome 3, BAC clone F11C1.
GenBankBT0106070.0BT010607.1 Arabidopsis thaliana At3g50330 gene, complete cds.
GenBankCP0026860.0CP002686.1 Arabidopsis thaliana chromosome 3, complete sequence.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_010503703.11e-128PREDICTED: transcription factor HEC2
SwissprotQ9SND41e-127HEC2_ARATH; Transcription factor HEC2
TrEMBLA0A178VGG71e-125A0A178VGG7_ARATH; HEC2
STRINGBostr.6864s0212.1.p1e-173(Boechera stricta)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM15592791
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G50330.11e-120bHLH family protein
Publications ? help Back to Top
  1. Skinner MK,Rawls A,Wilson-Rawls J,Roalson EH
    Basic helix-loop-helix transcription factor gene family phylogenetics and nomenclature.
    Differentiation, 2010. 80(1): p. 1-8
    [PMID:20219281]
  2. Zhu L, et al.
    A Negative Feedback Loop between PHYTOCHROME INTERACTING FACTORs and HECATE Proteins Fine-Tunes Photomorphogenesis in Arabidopsis.
    Plant Cell, 2016. 28(4): p. 855-74
    [PMID:27073231]
