Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Bradi1g24720.1.p
Common NameBRADI_1g24720, LOC100839461
Organism
Brachypodium distachyon
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; Liliopsida; Petrosaviidae; commelinids; Poales; Poaceae; BOP clade; Pooideae; Brachypodieae; Brachypodium
Family B3
Protein Properties Length: 990aa    MW: 109213 Da    PI: 8.207
Description B3 family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Bradi1g24720.1.pgenomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1B3581.7e-18498597198
                       EEEE-..-HHHHTT-EE--HHH.HTT..---..--SEEEEEETTS-EEEEEE....EEETTEEEE-TTHHHHHHHHT--TT-EEEEEE-SSSE CS
                B3   1 ffkvltpsdvlksgrlvlpkkfaeeh..ggkkeesktltledesgrsWevkliy..rkksgryvltkGWkeFvkangLkegDfvvFkldgrse 89
                       f+k l+ sd+++ grlvlpkk+ae++   ++++e+  l+++d sg++W +++++  +++s++yvl+ G     ++ +L++gD+v+F++++  e
  Bradi1g24720.1.p 498 FEKMLSASDAGRIGRLVLPKKCAEAYfpPISQPEGLPLKVQDGSGKEWVFQFRFwpNNNSRMYVLE-GVTPCIQSMHLQAGDIVTFSRID-PE 588
                       89**************************555566778***************9989999999***9.********************987.66 PP

                       E..EEEEE- CS
                B3  90 felvvkvfr 98
                       ++l +++++
  Bradi1g24720.1.p 589 GKLIMGFRK 597
                       666666655 PP

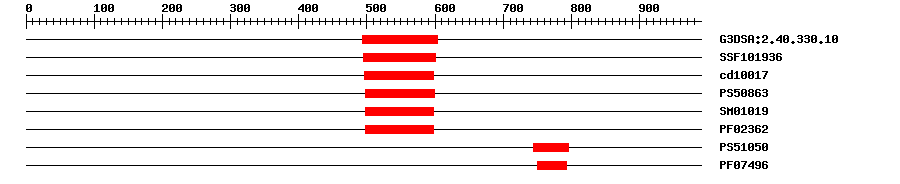

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:2.40.330.102.1E-30494604IPR015300DNA-binding pseudobarrel domain
SuperFamilySSF1019362.22E-20495601IPR015300DNA-binding pseudobarrel domain
CDDcd100175.84E-24496597No hitNo description
PROSITE profilePS5086311.209498599IPR003340B3 DNA binding domain
SMARTSM010195.3E-22498598IPR003340B3 DNA binding domain
PfamPF023624.6E-16498597IPR003340B3 DNA binding domain
PROSITE profilePS5105014.265745795IPR011124Zinc finger, CW-type
PfamPF074962.4E-11750792IPR011124Zinc finger, CW-type
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0008270Molecular Functionzinc ion binding
Sequence ? help Back to Top
Protein Sequence    Length: 990 aa     Download sequence    Send to blast
MSSPAPPRPP PPSAPTPATA PTATPMSVQP PPPQPKPPPP QQPSGSSAPP PPQFHPPASH  60
QQPQPHPAAS HQQPQPHTPV SHQQPQQPHP AGSHQQQQQQ PHPPSSHQQR PRICFNTHCK  120
DPKSEGPRRR GWRLRSGDFA ELCDRCYGSF EQGSFCETFH SEVAGWRNCE ACGKRLHCGC  180
IVSIHAYALL DAGGVDCILC TRKSYAAAAM APNQMCPTPT MHMPQNVADK KDSFVKSWRP  240
PGGPYPSQWR QNSLWSVSGI QSDLQQRLAY EFDRPSGSEK LPPGRTFIHA QEKKFDDMHD  300
RPTTPAGMNQ IIRDRHADGH GQQTSMDPAH SYALYQREGP NPNSLHDHSH HGGESDSTSA  360
RKGIISEGCS SNIVSSSFKL DSRHPLESLL KENISLLPVG VGCTITNCPP VNGRNDIVRI  420
IPHQPTSQTP SSAASSAQKQ FYSHTVIDPE YQSHFRNGKP RMDAKARSQL LPRYWPRITD  480
KELQHLSADS KSVITPLFEK MLSASDAGRI GRLVLPKKCA EAYFPPISQP EGLPLKVQDG  540
SGKEWVFQFR FWPNNNSRMY VLEGVTPCIQ SMHLQAGDIV TFSRIDPEGK LIMGFRKSTT  600
QEQILRQEQP TKPANAAVTA PPEVNVNVAR PHEVNTENKN ISPVDQAAVG KVENGGVAQK  660
EGPGTARSSP GSLKRKATSV GPKIKRFRMD NEESMELKIT WEEAQELLRP PLKAPSVVIV  720
DGHEFEEYEE PPILGRRTYF VTDQSGENHQ WAQCEDCSKW RKLPVGALLP SKWTCSDNKW  780
DPERTSCESA QEATTEELAE LFPIKAGAAK KPKARIEPDS IDVSDGLDTL ANLAILGEGE  840
SLPSQPTTKH PRHRPGCSCI VCIQPPSGKG PKHKQTCTCN VCMTVRRRFK TLMLRREKRL  900
SEKDTEEPRR KEVPQTGSDP PLGSTSPTSS PQKADANPDD AEDMVVDHRM SSSPVKNQID  960
LNIQPEREDE QSPKSNAVGA ARLPRDNPT*
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
6j9a_A1e-614765982124B3 domain-containing transcription repressor VAL1
Search in ModeBase
Cis-element ? help Back to Top
SourceLink
PlantRegMapBradi1g24720.1.p
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_010236989.10.0B3 domain-containing protein Os07g0563300 isoform X2
SwissprotQ0D5G40.0Y7633_ORYSJ; B3 domain-containing protein Os07g0563300
TrEMBLI1GTG40.0I1GTG4_BRADI; Uncharacterized protein
STRINGBRADI1G24720.10.0(Brachypodium distachyon)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT4G32010.11e-142HSI2-like 1
