Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Brast02G311200.1.p
Organism
Brachypodium stacei
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; Liliopsida; Petrosaviidae; commelinids; Poales; Poaceae; BOP clade; Pooideae; Brachypodieae; Brachypodium
Family MIKC_MADS
Protein Properties Length: 234aa    MW: 26647.5 Da    PI: 7.5018
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Brast02G311200.1.pgenomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF885.3e-281059251
                        ---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
              SRF-TF  2 rienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                        rienk+ rqvtf+kRrng+lKKA+ELS+LCdaeva+++fs+ g+ly +ss
  Brast02G311200.1.p 10 RIENKISRQVTFAKRRNGLLKKAYELSILCDAEVALVLFSHAGRLYQFSS 59
                        9***********************************************96 PP
2K-box79.39.2e-2781173799
               K-box   7 ksleeakaeslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenkaLrkk 97
                         +  ++ ++++ + e+  Lk+ +e Lq++qR+llGedL +L   eL qLe+q+ k l++iRs+K+++ l+++ +l++ke++l+++n +L++k
  Brast02G311200.1.p  81 VVPTSDEMQNNYLEYMELKAHVEVLQNSQRNLLGEDLAPLGKTELDQLESQVGKTLRQIRSRKTQVQLDELCDLKRKEQMLEDANLTLKRK 171
                         44677889**********************************************************************************9 PP

               K-box  98 le 99
                         l
  Brast02G311200.1.p 172 LG 173
                         86 PP

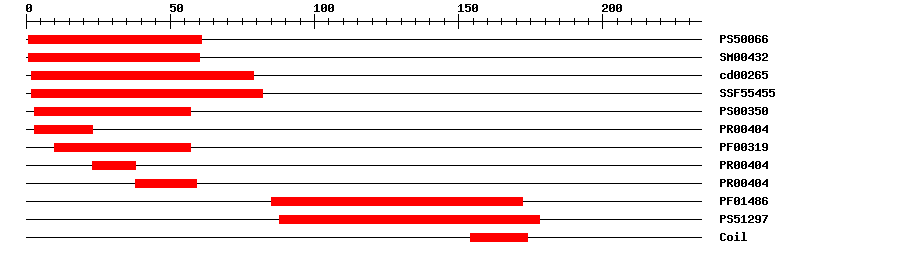

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5006631.02161IPR002100Transcription factor, MADS-box
SMARTSM004322.9E-36160IPR002100Transcription factor, MADS-box
CDDcd002651.73E-42279No hitNo description
SuperFamilySSF554558.5E-31282IPR002100Transcription factor, MADS-box
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PRINTSPR004044.3E-29323IPR002100Transcription factor, MADS-box
PfamPF003191.0E-251057IPR002100Transcription factor, MADS-box
PRINTSPR004044.3E-292338IPR002100Transcription factor, MADS-box
PRINTSPR004044.3E-293859IPR002100Transcription factor, MADS-box
PfamPF014864.0E-2485172IPR002487Transcription factor, K-box
PROSITE profilePS5129713.15888178IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 234 aa     Download sequence    Send to blast
MGRGKVVLQR IENKISRQVT FAKRRNGLLK KAYELSILCD AEVALVLFSH AGRLYQFSSS  60
SNMLKTLERY QRYIYASQDA VVPTSDEMQN NYLEYMELKA HVEVLQNSQR NLLGEDLAPL  120
GKTELDQLES QVGKTLRQIR SRKTQVQLDE LCDLKRKEQM LEDANLTLKR KLGEIPVEAE  180
APPQLPWQDD RGVPSHAPLP QPDHFFQALE CNPSLQPSFR GMDVNQPPPA WMA*

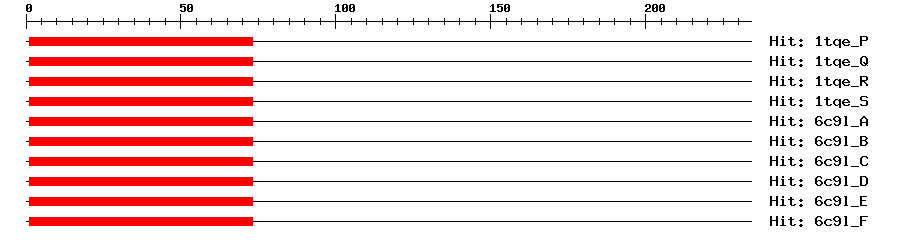

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1tqe_P9e-20173172Myocyte-specific enhancer factor 2B
1tqe_Q9e-20173172Myocyte-specific enhancer factor 2B
1tqe_R9e-20173172Myocyte-specific enhancer factor 2B
1tqe_S9e-20173172Myocyte-specific enhancer factor 2B
6c9l_A9e-20173172Myocyte-specific enhancer factor 2B
6c9l_B9e-20173172Myocyte-specific enhancer factor 2B
6c9l_C9e-20173172Myocyte-specific enhancer factor 2B
6c9l_D9e-20173172Myocyte-specific enhancer factor 2B
6c9l_E9e-20173172Myocyte-specific enhancer factor 2B
6c9l_F9e-20173172Myocyte-specific enhancer factor 2B
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor.
Cis-element ? help Back to Top
SourceLink
PlantRegMapBrast02G311200.1.p
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankKF4692990.0KF469299.1 Brachypodium distachyon MADS-box transcription factor 1 mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_003559391.11e-168MADS-box transcription factor 34-like isoform X1
SwissprotQ6Q9H61e-119MAD34_ORYSJ; MADS-box transcription factor 34
TrEMBLI1GN741e-167I1GN74_BRADI; Uncharacterized protein
STRINGBRADI1G08326.11e-167(Brachypodium distachyon)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MonocotsOGMP136182630
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G02310.13e-75MIKC_MADS family protein
Publications ? help Back to Top
  1. Kobayashi K,Maekawa M,Miyao A,Hirochika H,Kyozuka J
    PANICLE PHYTOMER2 (PAP2), encoding a SEPALLATA subfamily MADS-box protein, positively controls spikelet meristem identity in rice.
    Plant Cell Physiol., 2010. 51(1): p. 47-57
    [PMID:19933267]
  2. Gao X, et al.
    The SEPALLATA-like gene OsMADS34 is required for rice inflorescence and spikelet development.
    Plant Physiol., 2010. 153(2): p. 728-40
    [PMID:20395452]
  3. Khanday I,Yadav SR,Vijayraghavan U
    Rice LHS1/OsMADS1 controls floret meristem specification by coordinated regulation of transcription factors and hormone signaling pathways.
    Plant Physiol., 2013. 161(4): p. 1970-83
    [PMID:23449645]
  4. Lin X, et al.
    The pleiotropic SEPALLATA-like gene OsMADS34 reveals that the 'empty glumes' of rice (Oryza sativa) spikelets are in fact rudimentary lemmas.
    New Phytol., 2014. 202(2): p. 689-702
    [PMID:24372518]
  5. Conrad LJ, et al.
    The polycomb group gene EMF2B is essential for maintenance of floral meristem determinacy in rice.
    Plant J., 2014. 80(5): p. 883-94
    [PMID:25279942]
  6. Liu M,Li H,Su Y,Li W,Shi C
    G1/ELE Functions in the Development of Rice Lemmas in Addition to Determining Identities of Empty Glumes.
    Front Plant Sci, 2016. 7: p. 1006
    [PMID:27462334]
