Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Bv2_035400_pdae.t1
Organism
Beta vulgaris
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; Caryophyllales; Chenopodiaceae; Betoideae; Beta
Family NF-YB
Protein Properties Length: 157aa    MW: 17487.8 Da    PI: 4.3075
Description NF-YB family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Bv2_035400_pdae.t1genomeTBVRView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1NF-YB76.73.4e-241295386
               NF-YB  3 eqdrflPianvsrimkkvlPanakiskdaketvqecvsefisfvtseasdkcqrekrktingddllwalatlGfedyveplkvy 86
                        ++d+ lP a +++i+k++lP + ++++da++++ ec +efi +v+se++d c+re+++ti+++ +l al  lGf +y+e++ +
  Bv2_035400_pdae.t1 12 KEDASLPKATMTKIIKEMLPPDVRVARDAQDLLIECCVEFINLVSSESNDVCNREEKRTIAPEHVLKALEVLGFGEYIEEVYAA 95
                        6899***************************************************************************98654 PP

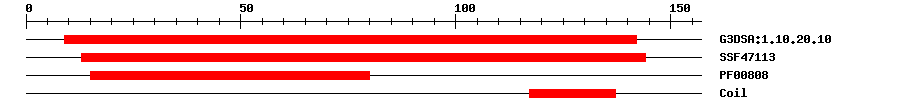

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:1.10.20.104.7E-399142IPR009072Histone-fold
SuperFamilySSF471131.84E-3513144IPR009072Histone-fold
PfamPF008081.9E-211580IPR003958Transcription factor CBF/NF-Y/archaeal histone domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0005634Cellular Componentnucleus
GO:0046982Molecular Functionprotein heterodimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 157 aa     Download sequence    Send to blast
MMDPMDIVGK AKEDASLPKA TMTKIIKEML PPDVRVARDA QDLLIECCVE FINLVSSESN  60
DVCNREEKRT IAPEHVLKAL EVLGFGEYIE EVYAAYEQHK LETMQDGVRG GGKWGNSAEM  120
TEEEAAAEQQ RMFAEARARM NGNAPLPKQD TDPTPES
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1jfi_B1e-331313712133Transcription Regulator NC2 beta chain
Search in ModeBase
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_010669512.11e-114PREDICTED: protein Dr1 homolog isoform X1
SwissprotP495923e-90NC2B_ARATH; Protein Dr1 homolog
TrEMBLI1K1866e-95I1K186_SOYBN; Uncharacterized protein
STRINGXP_010669512.11e-113(Beta vulgaris)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT5G23090.25e-73nuclear factor Y, subunit B13
Publications ? help Back to Top
  1. Zhao H, et al.
    The Arabidopsis thaliana Nuclear Factor Y Transcription Factors.
    Front Plant Sci, 2016. 7: p. 2045
    [PMID:28119722]
