PlantTFDB - Plant Transcription Factor Database @ CBI, PKU

PlantRegMap/PlantTFDB v5.0

Plant Transcription Factor Database

Transcription Factor Information

Basic Information | Signature Domain | Sequence |

Basic Information? help Back to Top

TF ID

Bv3_069100_rxsx.t1

Organism

Beta vulgaris

Taxonomic ID

161934

Taxonomic Lineage

cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; Caryophyllales; Chenopodiaceae; Betoideae; Beta

Family

bHLH

Protein Properties

Length: 202aa MW: 22528 Da PI: 9.7617

Description

bHLH family protein

Gene Model

Gene Model ID	Type	Source	Coding Sequence
Bv3_069100_rxsx.t1	genome	TBVR	View CDS

Signature Domain? help Back to Top

No.	Domain	Score	E-value	Start	End	HMM Start	HMM End
1	HLH	37	6.2e-12	2	49	4	54
HHHHHHHHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHH CS HLH 4 ahnerErrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksL 54 +h ++Er+RR+++N+ + Lr+l P+ + kK + a+i +ve+Ik+L Bv3_069100_rxsx.t1 2 SHIAVERNRRKQMNDNLKVLRSLTPSF---YIKKGDQASIIGGVVEFIKEL 49 89**********************9...9****************99 PP

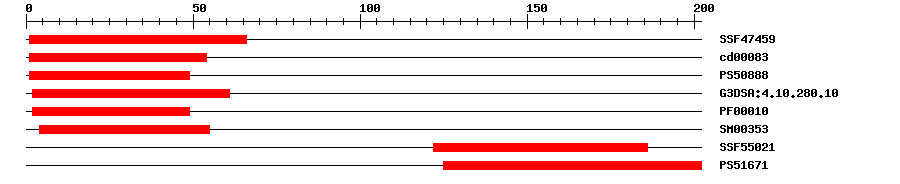

Protein Features ? help Back to Top

Database	Entry ID	E-value	Start	End	InterPro ID	Description
SuperFamily	SSF47459	5.5E-15	1	66	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
CDD	cd00083	8.79E-11	1	54	No hit	No description
PROSITE profile	PS50888	14.227	1	49	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
Gene3D	G3DSA:4.10.280.10	1.0E-12	2	61	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
Pfam	PF00010	7.5E-9	2	49	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
SMART	SM00353	1.1E-8	4	55	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
SuperFamily	SSF55021	2.79E-5	122	186	No hit	No description
PROSITE profile	PS51671	9.178	125	202	IPR002912	ACT domain

Gene Ontology ? help Back to Top
GO Term	GO Category	GO Description
GO:0008152	Biological Process	metabolic process
GO:0009913	Biological Process	epidermal cell differentiation
GO:0010374	Biological Process	stomatal complex development
GO:0005634	Cellular Component	nucleus
GO:0016597	Molecular Function	amino acid binding
GO:0046983	Molecular Function	protein dimerization activity

Sequence ? help Back to Top
Protein Sequence Length: 202 aa Download sequence Send to blast
MSHIAVERNR RKQMNDNLKV LRSLTPSFYI KKGDQASIIG GVVEFIKELH QVLQSLESQK 60 RRKSLSPSPG SGPSPKQLQP SPRQLANANI ITNHSFQFDG GKELVASCNS PVADVEAKIS 120 GSNVVLRVIS KKIRGQLLRI ISVLEKLSFD IIHLNISSMD DTFLYYFVVK IGLECELSME 180 ELAAEVQRSF CTINTISNIT EK

Functional Description ? help Back to Top
Source	Description
UniProt	Transcription factor. Together with FMA and SPCH, regulates the stomata formation. Required for the differentiation of stomatal guard cells, by promoting successive asymmetric cell divisions and the formation of guard mother cells. Promotes the conversion of the leaf epidermis into stomata. {ECO:0000269\|PubMed:17183265, ECO:0000269\|PubMed:17183267}.

Regulation -- Description ? help Back to Top
Source	Description
UniProt	INDUCTION: By UV, flagellin, and jasmonic acid (JA) treatments. {ECO:0000269\|PubMed:12679534}.

Regulation -- PlantRegMap ? help Back to Top
Source	Upstream Regulator	Target Gene
PlantRegMap	Retrieve	-

Annotation -- Protein ? help Back to Top
Source	Hit ID	E-value	Description
Refseq	XP_010693896.1	1e-146	PREDICTED: transcription factor MUTE
Swissprot	Q9M8K6	2e-80	MUTE_ARATH; Transcription factor MUTE
TrEMBL	A0A0K9RA73	1e-104	A0A0K9RA73_SPIOL; Uncharacterized protein
STRING	XP_010693896.1	1e-146	(Beta vulgaris)

Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID	E-value	Description
AT3G06120.1	2e-77	bHLH family protein

Publications ? help Back to Top
Casson S,Gray JE Influence of environmental factors on stomatal development. New Phytol., 2008. 178(1): p. 9-23 [PMID:18266617] Skinner MK,Rawls A,Wilson-Rawls J,Roalson EH Basic helix-loop-helix transcription factor gene family phylogenetics and nomenclature. Differentiation, 2010. 80(1): p. 1-8 [PMID:20219281] Balcerowicz M,Ranjan A,Rupprecht L,Fiene G,Hoecker U Auxin represses stomatal development in dark-grown seedlings via Aux/IAA proteins. Development, 2014. 141(16): p. 3165-76 [PMID:25063454] de Marcos A, et al. Transcriptional profiles of Arabidopsis stomataless mutants reveal developmental and physiological features of life in the absence of stomata. Front Plant Sci, 2015. 6: p. 456 [PMID:26157447] Mahoney AK, et al. Functional analysis of the Arabidopsis thaliana MUTE promoter reveals a regulatory region sufficient for stomatal-lineage expression. Planta, 2016. 243(4): p. 987-98 [PMID:26748914] Klermund C, et al. LLM-Domain B-GATA Transcription Factors Promote Stomatal Development Downstream of Light Signaling Pathways in Arabidopsis thaliana Hypocotyls. Plant Cell, 2016. 28(3): p. 646-60 [PMID:26917680] Fu ZW,Wang YL,Lu YT,Yuan TT Nitric oxide is involved in stomatal development by modulating the expression of stomatal regulator genes in Arabidopsis. Plant Sci., 2016. 252: p. 282-289 [PMID:27717464] Qi X, et al. Autocrine regulation of stomatal differentiation potential by EPF1 and ERECTA-LIKE1 ligand-receptor signaling. Elife, 2018. [PMID:28266915] Raissig MT, et al. Mobile MUTE specifies subsidiary cells to build physiologically improved grass stomata. Science, 2017. 355(6330): p. 1215-1218 [PMID:28302860] Lee JH,Jung JH,Park CM Light Inhibits COP1-Mediated Degradation of ICE Transcription Factors to Induce Stomatal Development in Arabidopsis. Plant Cell, 2017. 29(11): p. 2817-2830 [PMID:29070509] Han SK, et al. MUTE Directly Orchestrates Cell-State Switch and the Single Symmetric Division to Create Stomata. Dev. Cell, 2018. 45(3): p. 303-315.e5 [PMID:29738710]
