Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID C.cajan_09326
Common NameKK1_009590
Organism
Cajanus cajan
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Fabales; Fabaceae; Papilionoideae; Phaseoleae; Cajanus
Family bHLH
Protein Properties Length: 340aa    MW: 37002.6 Da    PI: 6.4212
Description bHLH family protein
Gene Model
Gene Model ID Type Source Coding Sequence
C.cajan_09326genomeIIPGView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1HLH30.95e-10217265355
                    HHHHHHHHHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHHH CS
            HLH   3 rahnerErrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksLq 55
                     +h+ +Er RR++i +++  L+el+P +    +k   Ka +L + ++Y++sLq
  C.cajan_09326 217 NTHSLAERIRREKISERMRLLQELVPGC----DKITGKALMLDEIINYVQSLQ 265
                    58*************************9....899*****************9 PP

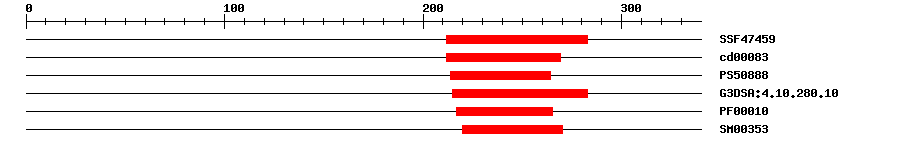

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SuperFamilySSF474599.03E-17212283IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
CDDcd000833.64E-11212269No hitNo description
PROSITE profilePS5088815.262214264IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
Gene3DG3DSA:4.10.280.103.7E-16215283IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
PfamPF000101.7E-7217265IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
SMARTSM003532.1E-9220270IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 340 aa     Download sequence    Send to blast
MGLQHGNKGI LNCPLSGLRT SVSEMTVSSV FKAMPSGVTN PFLDSSAWDP LAPLGQTFGG  60
SLSEFVDSSH PPFVLENQGI SNEPHLVQYI SDSNFACMAP KVPSFGQTGS YYIANTGYHP  120
NHDPCNEQSQ VEGSTSEGVA PGEHKRKREL VSISTFSPNK NDEGEAVKDS PGTSSDDVKE  180
QYVKKPKVEQ NIIANFSGEV PKENFIHVRA RRGQATNTHS LAERIRREKI SERMRLLQEL  240
VPGCDKITGK ALMLDEIINY VQSLQQQVEL LSMKLATVNP ELNFNVEQIC SKDSNIGLGP  300
IGGYGSGISC THPFPSRSLQ GGMPNPSTQF PLMPPVKSKE
Cis-element ? help Back to Top
SourceLink
PlantRegMapC.cajan_09326
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_020213589.10.0transcription factor bHLH74
RefseqXP_020213590.10.0transcription factor bHLH74
TrEMBLA0A151TTP60.0A0A151TTP6_CAJCA; Transcription factor bHLH74
STRINGGLYMA04G05091.11e-145(Glycine max)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF75853345
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G10120.19e-47bHLH family protein
