Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID C.cajan_24257
Common NameKK1_025117
Organism
Cajanus cajan
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Fabales; Fabaceae; Papilionoideae; Phaseoleae; Cajanus
Family MIKC_MADS
Protein Properties Length: 241aa    MW: 27507.3 Da    PI: 8.8308
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
C.cajan_24257genomeIIPGView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF99.91e-31959151
                   S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
         SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                   krienk+nrqvtf+kRrng+lKKA+ELSvLCdaeva+iifs++gklye++s
  C.cajan_24257  9 KRIENKINRQVTFAKRRNGLLKKAYELSVLCDAEVALIIFSNRGKLYEFCS 59
                   79***********************************************96 PP
2K-box98.97.2e-33851741099
          K-box  10 eeakaeslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenkaLrkkle 99
                     ea + s+qqe+ kLk+++e Lqr+qR+l+GedL++L+ keL++Le+qL++slk+iRs++++++l+q+++lq+ke+ l+e+n++Lr++le
  C.cajan_24257  85 REALELSSQQEYLKLKARYEALQRSQRNLMGEDLGPLNSKELESLERQLDSSLKQIRSTRTQFMLDQLSDLQRKEHLLSEANRSLRQRLE 174
                    45556689*******************************************************************************986 PP

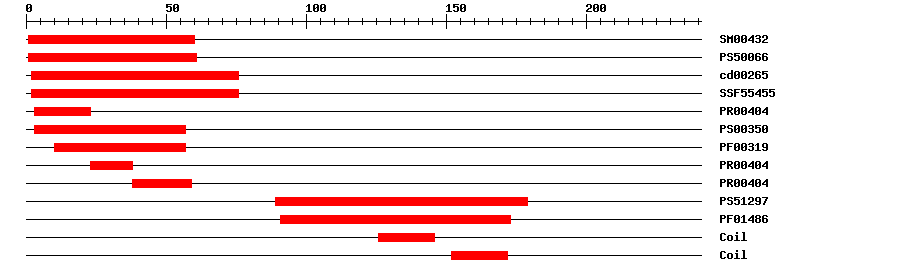

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SMARTSM004321.3E-41160IPR002100Transcription factor, MADS-box
PROSITE profilePS5006633.515161IPR002100Transcription factor, MADS-box
CDDcd002653.77E-45276No hitNo description
SuperFamilySSF554559.42E-34276IPR002100Transcription factor, MADS-box
PRINTSPR004048.5E-33323IPR002100Transcription factor, MADS-box
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PfamPF003192.2E-261057IPR002100Transcription factor, MADS-box
PRINTSPR004048.5E-332338IPR002100Transcription factor, MADS-box
PRINTSPR004048.5E-333859IPR002100Transcription factor, MADS-box
PROSITE profilePS5129715.55289179IPR002487Transcription factor, K-box
PfamPF014862.6E-2691173IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0001708Biological Processcell fate specification
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0010093Biological Processspecification of floral organ identity
GO:0048481Biological Processplant ovule development
GO:0048833Biological Processspecification of floral organ number
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 241 aa     Download sequence    Send to blast
MGRGRVELKR IENKINRQVT FAKRRNGLLK KAYELSVLCD AEVALIIFSN RGKLYEFCSS  60
SSMLKTLERY QKCNYGAPEA NVSTREALEL SSQQEYLKLK ARYEALQRSQ RNLMGEDLGP  120
LNSKELESLE RQLDSSLKQI RSTRTQFMLD QLSDLQRKEH LLSEANRSLR QRLEGYQINP  180
LQLNPGVEDM GYGRHPSQTQ GDALFQPLEC EPTLQIGYQP DPVSVVTAGP SMSNYMAGWL  240
P

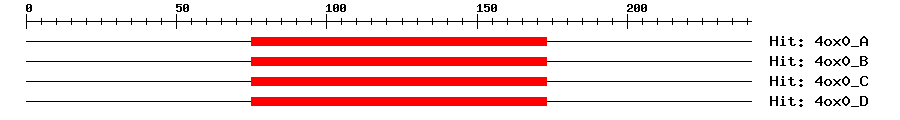

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
4ox0_A2e-46751731101Developmental protein SEPALLATA 3
4ox0_B2e-46751731101Developmental protein SEPALLATA 3
4ox0_C2e-46751731101Developmental protein SEPALLATA 3
4ox0_D2e-46751731101Developmental protein SEPALLATA 3
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor involved in flower development. {ECO:0000250|UniProtKB:Q0HA25}.
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00605ChIP-seqTransfer from AT1G24260Download
Motif logo
Cis-element ? help Back to Top
SourceLink
PlantRegMapC.cajan_24257
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankBT0936170.0BT093617.1 Soybean clone JCVI-FLGm-17F9 unknown mRNA.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_020229792.11e-177MADS-box transcription factor 1 isoform X10
SwissprotQ8LLR01e-154MADS4_VITVI; Agamous-like MADS-box protein MADS4
TrEMBLA0A151SDQ31e-176A0A151SDQ3_CAJCA; MADS-box transcription factor 1
STRINGGLYMA05G28140.31e-168(Glycine max)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF22932178
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G24260.11e-129MIKC_MADS family protein
Publications ? help Back to Top
  1. Jaillon O, et al.
    The grapevine genome sequence suggests ancestral hexaploidization in major angiosperm phyla.
    Nature, 2007. 449(7161): p. 463-7
    [PMID:17721507]
  2. Díaz-Riquelme J,Lijavetzky D,Martínez-Zapater JM,Carmona MJ
    Genome-wide analysis of MIKCC-type MADS box genes in grapevine.
    Plant Physiol., 2009. 149(1): p. 354-69
    [PMID:18997115]
  3. Grimplet J,Martínez-Zapater JM,Carmona MJ
    Structural and functional annotation of the MADS-box transcription factor family in grapevine.
    BMC Genomics, 2016. 17: p. 80
    [PMID:26818751]
