Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID C.cajan_31209
Common NameKK1_030460
Organism
Cajanus cajan
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Fabales; Fabaceae; Papilionoideae; Phaseoleae; Cajanus
Family bHLH
Protein Properties Length: 215aa    MW: 24190.6 Da    PI: 7.8559
Description bHLH family protein
Gene Model
Gene Model ID Type Source Coding Sequence
C.cajan_31209genomeIIPGView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1HLH13.60.000131762150
                   CHHHHHHHHHHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHH CS
            HLH  1 rrrahnerErrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveY 50
                   +r+ + erE+  R+++N+ f  L + l  +     + + Ka++L +A++
  C.cajan_31209 17 KRVHKAEREKMKREHLNELFLGLADALDLN----EQSNGKASTLNEAIRL 62
                   79999**********************987....68899999****9975 PP

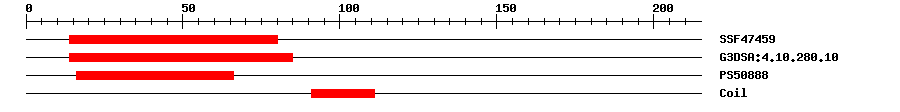

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SuperFamilySSF474599.68E-101480IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
Gene3DG3DSA:4.10.280.104.8E-61485IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
PROSITE profilePS5088810.4931666IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 215 aa     Download sequence    Send to blast
MVDVLCRSYP SKKKVPKRVH KAEREKMKRE HLNELFLGLA DALDLNEQSN GKASTLNEAI  60
RLSKYLLGQI ESLKKDNASL ISETHYVTME KNEVVEENFA LKSQIEKLKD EIKARVAQSR  120
ADLNVSPHME LEQLEKTTKF SGESFQLSTI EPTLQQGHAV LVVPLSHDHQ NALSAHNVAE  180
LTPKSTSTIS KPHARYPTPM DSWPLELLAK QPTSS
Cis-element ? help Back to Top
SourceLink
PlantRegMapC.cajan_31209
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_020234590.11e-151transcription factor bHLH47 isoform X2
TrEMBLA0A151RZB61e-156A0A151RZB6_CAJCA; Transcription factor bHLH47
STRINGXP_004508752.12e-90(Cicer arietinum)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF82232531
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G47640.33e-54bHLH family protein
