Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID CCG014252.1
Organism
Populus euphratica
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Malpighiales; Salicaceae; Saliceae; Populus
Family MYB
Protein Properties Length: 270aa    MW: 30720.5 Da    PI: 5.3936
Description MYB family protein
Gene Model
Gene Model ID Type Source Coding Sequence
CCG014252.1genomeLZUView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding48.71.8e-151461148
                     TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHHT CS
  Myb_DNA-binding  1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqkyl 48
                     +g+WT+eEd++l++ +   G  +W+++++  g++R++k c++rw +yl
      CCG014252.1 14 KGPWTAEEDKKLINFILTNGQCCWRAVPKLAGLRRCGKRCRHRWTNYL 61
                     79********************************************97 PP
2Myb_DNA-binding53.55.6e-1770111447
                      S-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHH CS
  Myb_DNA-binding   4 WTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqky 47
                       T+ E++l +d++++lG++ W++Ia++++ gRt++++k++w+++
      CCG014252.1  70 LTEAEEQLVIDLHARLGNR-WSKIAARLP-GRTDNEIKNHWNTH 111
                      699****************.*********.************97 PP

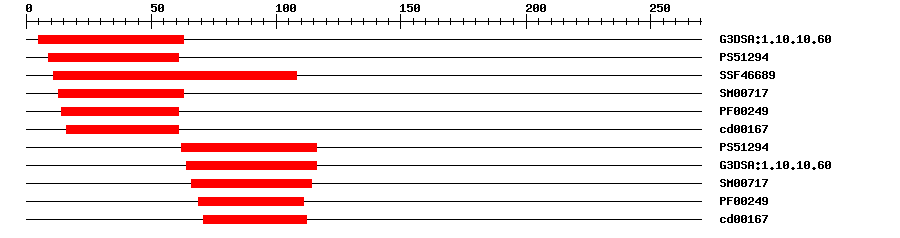

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:1.10.10.606.1E-21563IPR009057Homeodomain-like
PROSITE profilePS5129413.699961IPR017930Myb domain
SuperFamilySSF466895.19E-2711108IPR009057Homeodomain-like
SMARTSM007174.3E-121363IPR001005SANT/Myb domain
PfamPF002491.7E-141461IPR001005SANT/Myb domain
CDDcd001671.98E-81661No hitNo description
PROSITE profilePS5129427.76462116IPR017930Myb domain
Gene3DG3DSA:1.10.10.604.3E-2564116IPR009057Homeodomain-like
SMARTSM007172.7E-1566114IPR001005SANT/Myb domain
PfamPF002492.9E-1569111IPR001005SANT/Myb domain
CDDcd001671.43E-1171112No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:2000652Biological Processregulation of secondary cell wall biogenesis
GO:0005634Cellular Componentnucleus
GO:0044212Molecular Functiontranscription regulatory region DNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 270 aa     Download sequence    Send to blast
MGRQPCCDKL GVKKGPWTAE EDKKLINFIL TNGQCCWRAV PKLAGLRRCG KRCRHRWTNY  60
LRPDLKRGLL TEAEEQLVID LHARLGNRWS KIAARLPGRT DNEIKNHWNT HIKKKLLKRG  120
IDPVTHEPLH KEARPEESSS SHADILPESS NNNVMLENDG IVINSDDNPR SPTENSSSPE  180
DSILLDSICN DEMLLNSLWM DEPPLVDASW NNIIPPAAAN TNDDTGYPSW EENYTWLSDC  240
QDFGVHDFGL ECFDSMELSA LSTLEMEHKH
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1a5j_A8e-29141167108B-MYB
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtR2R3 MYB-type transcription factor controlling the production of volatile benzoides in flowers by regulating the shikimate pathway, namely by activation of the 5-enol-pyruvylshikimate-3-phosphate synthase gene. This scent, mostly produced in the evening and night by the petals, attracts the pollinators. Anthocyanins production is not controlled by ODO1 as color and scent are produced at different stages of development. {ECO:0000269|PubMed:15805488}.
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Increases before the onset of volatile emission at the end of the light period, peaks at night and decreases when volatile emission declines early morning.
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankKP7102140.0KP710214.1 Populus tomentosa MYB092 mRNA, partial cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_011018242.10.0PREDICTED: protein ODORANT1-like
SwissprotQ50EX61e-105ODO1_PETHY; Protein ODORANT1
TrEMBLB9N3N50.0B9N3N5_POPTR; Uncharacterized protein
STRINGPOPTR_0001s07830.10.0(Populus trichocarpa)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF65334142
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT4G12350.11e-104myb domain protein 42
Publications ? help Back to Top
  1. Verdonk JC,Haring MA,van Tunen AJ,Schuurink RC
    ODORANT1 regulates fragrance biosynthesis in petunia flowers.
    Plant Cell, 2005. 17(5): p. 1612-24
    [PMID:15805488]
