Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Cagra.1671s0248.1.p
Organism
Capsella grandiflora
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Camelineae; Capsella
Family bHLH
Protein Properties Length: 418aa    MW: 46813.5 Da    PI: 6.0243
Description bHLH family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Cagra.1671s0248.1.pgenomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1HLH32.61.5e-10217258854
                          HHHHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHH CS
                  HLH   8 rErrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksL 54
                           Er RR + +++f  L++l+P++     +K + a+i+ +A++YIk+L
  Cagra.1671s0248.1.p 217 TERERRVHFKDRFGDLKSLIPNP-----TKHDRASIVGEAIDYIKEL 258
                          6**********************.....9****************98 PP

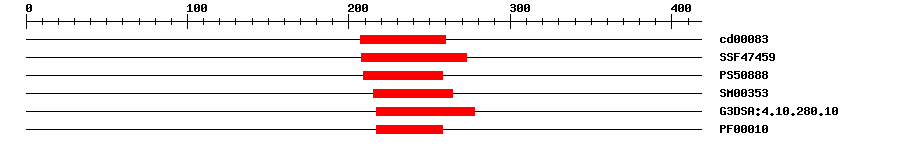

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
CDDcd000833.28E-10207260No hitNo description
SuperFamilySSF474591.96E-12208273IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
PROSITE profilePS5088814.278209258IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
SMARTSM003531.5E-7215264IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
Gene3DG3DSA:4.10.280.103.6E-10217278IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
PfamPF000106.7E-8217258IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0009555Biological Processpollen development
GO:0048658Biological Processanther wall tapetum development
GO:0052543Biological Processcallose deposition in cell wall
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 418 aa     Download sequence    Send to blast
MEGGGGGMFE EIGCFDPNAP AEMTAESSFS PAEPPPTTTV LGSNSNCSLE DLSEFHLSPQ  60
SSSLAASASA YVHQVHINAT TPHCDHHQFQ TLQDPSSYAQ HSNHWDNGYQ DFVNLGPNHT  120
TPDLLSLLQL PRSSLPPFAN PSLQDIIMTS SSVSAYDPLF HLNHPLQPPN GTLLGVDQYQ  180
TETNQGVNLM YDEENNNLDD GLSRKGRGSR KRKVFPTERE RRVHFKDRFG DLKSLIPNPT  240
KHDRASIVGE AIDYIKELLR TIDEFKLLVE KKRIKQRNRE GDDVVDENFK AQSEVVEQCL  300
INKKNNALRC SWLKRKSKFT EVDVRIIDDE VTIKIVQKKK INCLLFVSKV IDQLQLDLHH  360
VAGAQIGEHH SFLFNTKICE GSSVYASAIA DRVMEVLEKQ YMEALSMSNG YHCYSSD*
Cis-element ? help Back to Top
SourceLink
PlantRegMapCagra.1671s0248.1.p
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAF4886190.0AF488619.1 Arabidopsis thaliana clone bHLH089 putative bHLH transcription factor mRNA, complete cds.
GenBankBT0042620.0BT004262.1 Arabidopsis thaliana clone RAFL15-18-B21 (R20806) putative bHLH protein (At1g06170) mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_006307566.20.0transcription factor bHLH89
SwissprotQ9LND00.0BH089_ARATH; Transcription factor bHLH89
TrEMBLR0ID950.0R0ID95_9BRAS; Uncharacterized protein (Fragment)
STRINGCagra.1671s0248.1.p0.0(Capsella grandiflora)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM13552696
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G06170.20.0bHLH family protein
Publications ? help Back to Top
  1. Cui J, et al.
    Feedback Regulation of DYT1 by Interactions with Downstream bHLH Factors Promotes DYT1 Nuclear Localization and Anther Development.
    Plant Cell, 2016. 28(5): p. 1078-93
    [PMID:27113773]
  2. Ezer D, et al.
    The G-Box Transcriptional Regulatory Code in Arabidopsis.
    Plant Physiol., 2017. 175(2): p. 628-640
    [PMID:28864470]
