Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Cla021474
Organism
Citrullus lanatus
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Cucurbitales; Cucurbitaceae; Benincaseae; Citrullus
Family MYB
Protein Properties Length: 246aa    MW: 28929.5 Da    PI: 9.2975
Description MYB family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Cla021474genomeICuGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding58.21.9e-181764148
                     TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHHT CS
  Myb_DNA-binding  1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqkyl 48
                     +g+WT+eEd ll ++v+ +G g+W+++ar  g++R +k+c++rw +yl
        Cla021474 17 KGPWTAEEDRLLMEYVRIYGEGRWNSVARLAGLKRNGKSCRLRWVNYL 64
                     79********************************************97 PP
2Myb_DNA-binding521.7e-1670114147
                      TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHH CS
  Myb_DNA-binding   1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqky 47
                      rg  T+ E+ +++++++++G++ W+tIar ++ gRt++++k++w+++
        Cla021474  70 RGQITPHEESIILELHARWGNR-WSTIARSLP-GRTDNEIKNYWRTH 114
                      7888******************.*********.************97 PP

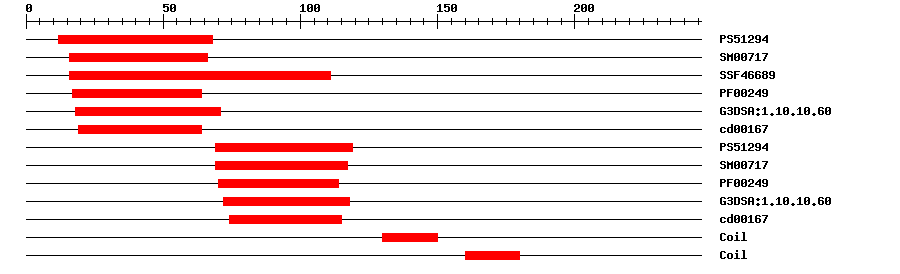

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5129424.911268IPR017930Myb domain
SMARTSM007175.5E-161666IPR001005SANT/Myb domain
SuperFamilySSF466893.01E-3016111IPR009057Homeodomain-like
PfamPF002496.9E-171764IPR001005SANT/Myb domain
Gene3DG3DSA:1.10.10.605.7E-241871IPR009057Homeodomain-like
CDDcd001671.12E-101964No hitNo description
PROSITE profilePS5129419.3569119IPR017930Myb domain
SMARTSM007171.4E-1469117IPR001005SANT/Myb domain
PfamPF002499.7E-1470114IPR001005SANT/Myb domain
Gene3DG3DSA:1.10.10.603.2E-2472118IPR009057Homeodomain-like
CDDcd001672.96E-974115No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 246 aa     Download sequence    Send to blast
MVGHWSWGLM EDEVWRKGPW TAEEDRLLME YVRIYGEGRW NSVARLAGLK RNGKSCRLRW  60
VNYLRPDLKR GQITPHEESI ILELHARWGN RWSTIARSLP GRTDNEIKNY WRTHFKKKAK  120
DSSDANGKAK ARLLRRQQFH QQQMQQQQQQ FNPIEMTKIM ALLEEQHDKS NNNNNKLEAL  180
SSSSAFTEAE KKQNITNFYS QTGDNEQTLI SELNNNHGFV LPEMLNEGLD VGWAMELGGY  240
PWQWEL
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1h8a_C1e-271711927128MYB TRANSFORMING PROTEIN
Search in ModeBase
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankLN6818481e-110LN681848.1 Cucumis melo genomic scaffold, anchoredscaffold00006.
GenBankLN7132601e-110LN713260.1 Cucumis melo genomic chromosome, chr_6.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_008438441.11e-144PREDICTED: transcription factor MYB24-like
TrEMBLA0A1S3AW201e-143A0A1S3AW20_CUCME; transcription factor MYB24-like
STRINGXP_008438441.11e-143(Cucumis melo)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF118234108
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT4G13480.15e-78myb domain protein 79
