Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Cotton_A_32868_BGI-A2_v1.0
Organism
Gossypium arboreum
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Malvales; Malvaceae; Malvoideae; Gossypium
Family C2H2
Protein Properties Length: 465aa    MW: 50841.3 Da    PI: 9.9907
Description C2H2 family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Cotton_A_32868_BGI-A2_v1.0genomeBGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1zf-C2H216.32.8e-056284123
                                EEETTTTEEESSHHHHHHHHHHT CS
                     zf-C2H2  1 ykCpdCgksFsrksnLkrHirtH 23
                                + C++C+k F r  nL+ H r H
  Cotton_A_32868_BGI-A2_v1.0 62 FICEICNKGFQRDQNLQLHRRGH 84
                                89*******************88 PP
2zf-C2H212.90.00034139161123
                                 EEETTTTEEESSHHHHHHHHHHT CS
                     zf-C2H2   1 ykCpdCgksFsrksnLkrHirtH 23
                                 +kC++C+k +  +s+ k H +t+
  Cotton_A_32868_BGI-A2_v1.0 139 WKCEKCSKKYAVQSDWKAHSKTC 161
                                 58*****************9998 PP

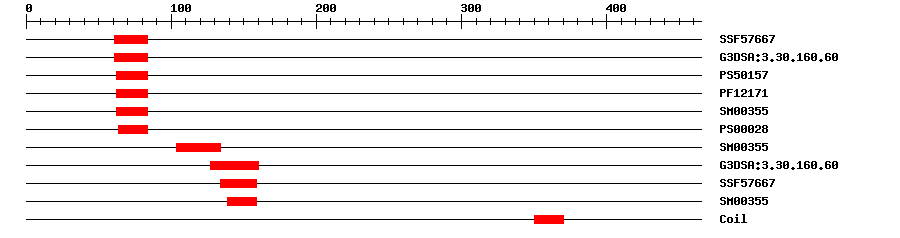

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SuperFamilySSF576673.44E-76184No hitNo description
Gene3DG3DSA:3.30.160.601.2E-56184IPR013087Zinc finger C2H2-type/integrase DNA-binding domain
PROSITE profilePS5015710.8456284IPR007087Zinc finger, C2H2
PfamPF121715.5E-56284IPR022755Zinc finger, double-stranded RNA binding
SMARTSM003550.0226284IPR015880Zinc finger, C2H2-like
PROSITE patternPS0002806484IPR007087Zinc finger, C2H2
SMARTSM00355100104134IPR015880Zinc finger, C2H2-like
Gene3DG3DSA:3.30.160.601.1E-4127160IPR013087Zinc finger C2H2-type/integrase DNA-binding domain
SuperFamilySSF576673.44E-7134159No hitNo description
SMARTSM00355140139159IPR015880Zinc finger, C2H2-like
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0010075Biological Processregulation of meristem growth
GO:0045604Biological Processregulation of epidermal cell differentiation
GO:0048364Biological Processroot development
GO:0051302Biological Processregulation of cell division
GO:0003676Molecular Functionnucleic acid binding
GO:0042803Molecular Functionprotein homodimerization activity
GO:0046872Molecular Functionmetal ion binding
Sequence ? help Back to Top
Protein Sequence    Length: 465 aa     Download sequence    Send to blast
MSGDGFSLPV SIGGFVHQEQ NNTNPNPKSN PVKKKRNLPG NPDPDAEVIA LSPKTLMATN  60
RFICEICNKG FQRDQNLQLH RRGHNLPWKL KQRNNKEPVK KKVYICPEKT CVHHDPSRAL  120
GDLTGIKKHF SRKHGEKKWK CEKCSKKYAV QSDWKAHSKT CGTREYKCDC GTLFSRKDSF  180
ITHRAFCDAL AEESARFSSV AGAATNLNFR NDVVNLPIGF GGIPQFGSGF TQDVSGMTVS  240
GLPEMVQMAS GNLFGSSSLN NFGTDSNPPL LPLPQGLNEE GGSKGKLMES LSPLYSDTQN  300
EQSKPAAPMS ATALLQKAAQ MGSTRSKPTS FFGNSFCVMS STSSQRSASL RSTQNRNDQL  360
QQIYPNVKQQ ESNLMASSSV SMSAYAGLGT SNNFDRLILQ TGVKQNAPNQ LKMHPGSNSI  420
DQSLTRDFLG MGNDQSARPF LPQELAKFVS IGSTMGLNQF SSSNH
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
5b3h_C1e-38135201369Zinc finger protein JACKDAW
5b3h_F1e-38135201369Zinc finger protein JACKDAW
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtTranscription factor that, together with BIB, regulates tissue boundaries and asymmetric cell division by a rapid up-regulation of 'SCARECROW' (SCR), thus controlling the nuclear localization of 'SHORT-ROOT' (SHR) and restricting its action (PubMed:17785527, PubMed:25829440). Binds DNA via its zinc fingers (PubMed:28211915, PubMed:24821766). Recognizes and binds to SCL3 promoter sequence 5'-AGACAA-3' to promotes its expression when in complex with RGA (PubMed:24821766). Confines CYCD6 expression to the cortex-endodermis initial/daughter (CEI/CEID) tissues (PubMed:25829440). Required for radial patterning and stem cell maintenance (PubMed:17785527). Counteracted by 'MAGPIE' (MGP) (PubMed:17785527). Binds to the SCR and MGP promoter sequences (PubMed:21935722). Controls position-dependent signals that regulate epidermal-cell-type patterning (PubMed:20356954). {ECO:0000269|PubMed:17785527, ECO:0000269|PubMed:20356954, ECO:0000269|PubMed:21935722, ECO:0000269|PubMed:24821766, ECO:0000269|PubMed:25829440, ECO:0000269|PubMed:28211915}.
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00485DAPTransfer from AT5G03150Download
Motif logo
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Not regulated by SCR and SHR. {ECO:0000269|PubMed:21935722}.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_017615263.10.0PREDICTED: zinc finger protein JACKDAW-like isoform X1
SwissprotQ700D21e-146IDD10_ARATH; Zinc finger protein JACKDAW
TrEMBLA0A1U8IX110.0A0A1U8IX11_GOSHI; zinc finger protein JACKDAW-like
STRINGGorai.009G418600.10.0(Gossypium raimondii)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM15528306
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT5G03150.11e-123C2H2-like zinc finger protein
Publications ? help Back to Top
  1. Moreno-Risueno MA, et al.
    Transcriptional control of tissue formation throughout root development.
    Science, 2015. 350(6259): p. 426-30
    [PMID:26494755]
  2. Hirano Y, et al.
    Structure of the SHR-SCR heterodimer bound to the BIRD/IDD transcriptional factor JKD.
    Nat Plants, 2017. 3: p. 17010
    [PMID:28211915]
  3. Kobayashi A,Miura S,Kozaki A
    INDETERMINATE DOMAIN PROTEIN binding sequences in the 5'-untranslated region and promoter of the SCARECROW gene play crucial and distinct roles in regulating SCARECROW expression in roots and leaves.
    Plant Mol. Biol., 2017. 94(1-2): p. 1-13
    [PMID:28324206]
  4. Long Y, et al.
    In vivo FRET-FLIM reveals cell-type-specific protein interactions in Arabidopsis roots.
    Nature, 2017. 548(7665): p. 97-102
    [PMID:28746306]
  5. Bustillo-Avendaño E, et al.
    Regulation of Hormonal Control, Cell Reprogramming, and Patterning during De Novo Root Organogenesis.
    Plant Physiol., 2018. 176(2): p. 1709-1727
    [PMID:29233938]
