Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Csa15g050240.1
Organism
Camelina sativa
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Camelineae; Camelina
Family HSF
Protein Properties Length: 333aa    MW: 37746.3 Da    PI: 6.0163
Description HSF family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Csa15g050240.1genomeCSGPView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1HSF_DNA-bind111.75.1e-35171092103
                     HHHHHHHHHCTGGGTTTSEESSSSSEEEES-HHHHHHHTHHHHSTT--HHHHHHHHHHTTEEE---SSBTTTTXTTSEEEEESXXXXXXXXXXXX CS
    HSF_DNA-bind   2 FlkklyeiledeelkeliswsengnsfvvldeeefakkvLpkyFkhsnfaSFvRQLnmYgFkkvkdeekkskskekiweFkhksFkkgkkellek 96
                     F+ k+y++++d++++ li+w    nsf+v+d+ +f++++Lp yFkh+nf+SFvRQLn+YgF+kv+ ++         weF++++F +g+k+ll++
  Csa15g050240.1  17 FIVKTYQMVNDPSTDWLITWGPAHNSFIVVDPLDFSQRILPAYFKHNNFSSFVRQLNTYGFRKVDPDR---------WEFANEHFLRGQKHLLRN 102
                     9********************999*****************************************999.........****************** PP

                     XXXXXXX CS
    HSF_DNA-bind  97 ikrkkse 103
                     i r+k++
  Csa15g050240.1 103 IARRKHA 109
                     ****975 PP

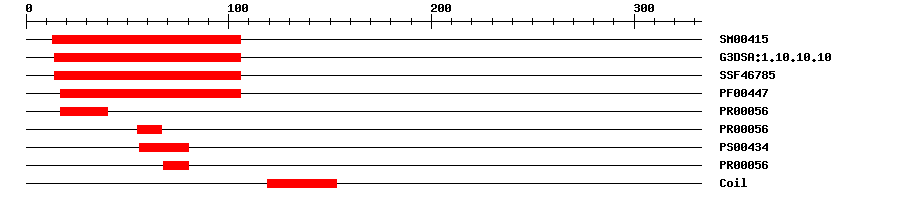

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SMARTSM004157.0E-5513106IPR000232Heat shock factor (HSF)-type, DNA-binding
Gene3DG3DSA:1.10.10.102.3E-3714106IPR011991Winged helix-turn-helix DNA-binding domain
SuperFamilySSF467852.45E-3314106IPR011991Winged helix-turn-helix DNA-binding domain
PfamPF004474.3E-3017106IPR000232Heat shock factor (HSF)-type, DNA-binding
PRINTSPR000562.3E-181740IPR000232Heat shock factor (HSF)-type, DNA-binding
PRINTSPR000562.3E-185567IPR000232Heat shock factor (HSF)-type, DNA-binding
PROSITE patternPS0043405680IPR000232Heat shock factor (HSF)-type, DNA-binding
PRINTSPR000562.3E-186880IPR000232Heat shock factor (HSF)-type, DNA-binding
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0006970Biological Processresponse to osmotic stress
GO:0009737Biological Processresponse to abscisic acid
GO:0005634Cellular Componentnucleus
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0043565Molecular Functionsequence-specific DNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 333 aa     Download sequence    Send to blast
MEDDNSNANT NNVIAPFIVK TYQMVNDPST DWLITWGPAH NSFIVVDPLD FSQRILPAYF  60
KHNNFSSFVR QLNTYGFRKV DPDRWEFANE HFLRGQKHLL RNIARRKHAR GMYGQDLEDG  120
EIVREIERLK EEQRELEAEI QKMNQRIEAT ERRPEQMMAF LYKVVEDPDL LPRMMLEKER  180
TKKLVSDKKK RRVTMSSTVK AEEEEVLEED EGRVFRVISS SPSPSSTENL YRNHSPENSL  240
GWCVPITQQG QFGNYETGLV ANSMISTSSS STSSSLTSTL SLPESVNGGR GGGCGSIQGE  300
ARYKETATFG GVVESNPPTT PPYPFSLFRG GF*

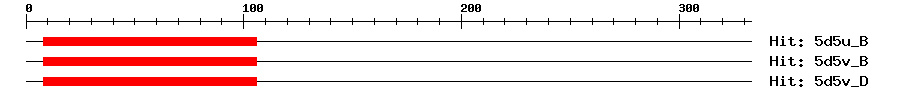

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
5d5u_B4e-26810621129Heat shock factor protein 1
5d5v_B4e-26810621129Heat shock factor protein 1
5d5v_D4e-26810621129Heat shock factor protein 1
Search in ModeBase
Nucleic Localization Signal ? help Back to Top
NLS
No. Start End Sequence
1187191KKKRR
2187192KKKRRV
Functional Description ? help Back to Top
Source Description
UniProtTranscriptional regulator that specifically binds DNA sequence 5'-AGAAnnTTCT-3' known as heat shock promoter elements (HSE).
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00379DAPTransfer from AT3G24520Download
Motif logo
Cis-element ? help Back to Top
SourceLink
PlantRegMapCsa15g050240.1
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_010466868.10.0PREDICTED: heat stress transcription factor C-1
SwissprotQ9LV521e-178HSFC1_ARATH; Heat stress transcription factor C-1
TrEMBLR0HIW01e-179R0HIW0_9BRAS; Uncharacterized protein
STRINGXP_010466868.10.0(Camelina sativa)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM67752743
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G24520.11e-173heat shock transcription factor C1
Publications ? help Back to Top
  1. Ding Y, et al.
    Four distinct types of dehydration stress memory genes in Arabidopsis thaliana.
    BMC Plant Biol., 2013. 13: p. 229
    [PMID:24377444]
  2. Guan Q,Yue X,Zeng H,Zhu J
    The protein phosphatase RCF2 and its interacting partner NAC019 are critical for heat stress-responsive gene regulation and thermotolerance in Arabidopsis.
    Plant Cell, 2014. 26(1): p. 438-53
    [PMID:24415771]
