Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Cucsa.018420.1
Common NameCUM26
Organism
Cucumis sativus
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Cucurbitales; Cucurbitaceae; Benincaseae; Cucumis
Family MIKC_MADS
Protein Properties Length: 169aa    MW: 19697.6 Da    PI: 8.6595
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Cucsa.018420.1genomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF90.77.6e-29959151
                    S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
          SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                    krien+snrqvt+skRrngi+KKA+E+ vLCda+v+++if+s+gk++ey+s
  Cucsa.018420.1  9 KRIENSSNRQVTYSKRRNGIIKKAKEITVLCDAQVSLVIFASSGKMHEYCS 59
                    79***********************************************96 PP
2K-box58.52.9e-20641253798
           K-box  37 hllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenkaLrkkl 98
                     hl Ged++sL++keL+ Le++Le++l+ +R+k++e+++++  + +++e+e+++ n +L +k
  Cucsa.018420.1  64 HLRGEDITSLNYKELMALEEALENGLTGVREKQSEFMKMMRTNERMMEEENKRLNYELYQKE 125
                     99********************************************************9996 PP
Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SMARTSM004325.7E-39160IPR002100Transcription factor, MADS-box
PROSITE profilePS5006631.791161IPR002100Transcription factor, MADS-box
CDDcd002656.40E-37262No hitNo description
SuperFamilySSF554551.7E-29368IPR002100Transcription factor, MADS-box
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PRINTSPR004048.3E-29323IPR002100Transcription factor, MADS-box
PfamPF003198.3E-231057IPR002100Transcription factor, MADS-box
PRINTSPR004048.3E-292338IPR002100Transcription factor, MADS-box
PRINTSPR004048.3E-293859IPR002100Transcription factor, MADS-box
PROSITE profilePS512979.44841127IPR002487Transcription factor, K-box
PfamPF014863.7E-1362120IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0010093Biological Processspecification of floral organ identity
GO:0005634Cellular Componentnucleus
GO:0005737Cellular Componentcytoplasm
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 169 aa     Download sequence    Send to blast
MARGKIEIKR IENSSNRQVT YSKRRNGIIK KAKEITVLCD AQVSLVIFAS SGKMHEYCSP  60
STPHLRGEDI TSLNYKELMA LEEALENGLT GVREKQSEFM KMMRTNERMM EEENKRLNYE  120
LYQKEMVAMG DSVREMDIGY NQRMRDFNSQ MPFAFRVQPI QPNLQERE*

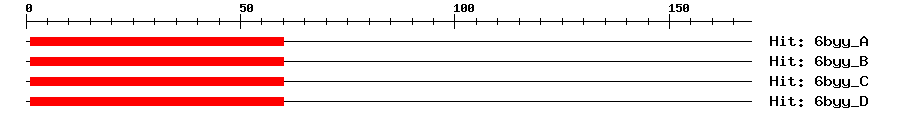

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
6byy_A7e-16160160MEF2 CHIMERA
6byy_B7e-16160160MEF2 CHIMERA
6byy_C7e-16160160MEF2 CHIMERA
6byy_D7e-16160160MEF2 CHIMERA
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor that may play role in specifying stamen and petal organ identity. {ECO:0000269|PubMed:23181568, ECO:0000269|Ref.1, ECO:0000305|PubMed:17920788}.
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00080ChIP-seqTransfer from AT5G20240Download
Motif logo
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAF0432551e-178AF043255.1 Cucumis sativus MADS box protein 26 (CUM26) mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqNP_001292651.11e-113floral homeotic protein PMADS 2
SwissprotQ0HA256e-80MADS9_VITVI; Agamous-like MADS-box protein MADS9
TrEMBLQ9ZTQ91e-112Q9ZTQ9_CUCSA; MADS box protein 26
STRINGXP_004142638.11e-114(Cucumis sativus)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF43553255
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT5G20240.13e-51MIKC_MADS family protein
Publications ? help Back to Top
  1. Jaillon O, et al.
    The grapevine genome sequence suggests ancestral hexaploidization in major angiosperm phyla.
    Nature, 2007. 449(7161): p. 463-7
    [PMID:17721507]
  2. Díaz-Riquelme J,Lijavetzky D,Martínez-Zapater JM,Carmona MJ
    Genome-wide analysis of MIKCC-type MADS box genes in grapevine.
    Plant Physiol., 2009. 149(1): p. 354-69
    [PMID:18997115]
  3. Grimplet J,Martínez-Zapater JM,Carmona MJ
    Structural and functional annotation of the MADS-box transcription factor family in grapevine.
    BMC Genomics, 2016. 17: p. 80
    [PMID:26818751]
