Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Cucsa.327970.4
Organism
Cucumis sativus
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Cucurbitales; Cucurbitaceae; Benincaseae; Cucumis
Family M-type_MADS
Protein Properties Length: 100aa    MW: 11347.2 Da    PI: 10.1945
Description M-type_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Cucsa.327970.4genomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF99.71.1e-31959151
                    S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
          SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                    k+ienk+nrqvtf+kRrng+lKKA+ELS+LCdaeva+iifs +gklye+ss
  Cucsa.327970.4  9 KKIENKINRQVTFTKRRNGLLKKAYELSILCDAEVALIIFSARGKLYEFSS 59
                    78***********************************************96 PP

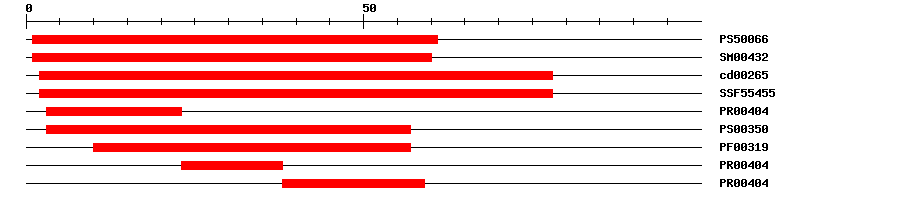

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5006632.927161IPR002100Transcription factor, MADS-box
SMARTSM004322.0E-40160IPR002100Transcription factor, MADS-box
CDDcd002652.07E-42278No hitNo description
SuperFamilySSF554551.27E-32278IPR002100Transcription factor, MADS-box
PRINTSPR004049.3E-33323IPR002100Transcription factor, MADS-box
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PfamPF003194.6E-271057IPR002100Transcription factor, MADS-box
PRINTSPR004049.3E-332338IPR002100Transcription factor, MADS-box
PRINTSPR004049.3E-333859IPR002100Transcription factor, MADS-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 100 aa     Download sequence    Send to blast
MGRGRVELKK IENKINRQVT FTKRRNGLLK KAYELSILCD AEVALIIFSA RGKLYEFSSS  60
PSIAKTLERY ERHSYGALEA SLPPKDTEVI SHPILLFFF*

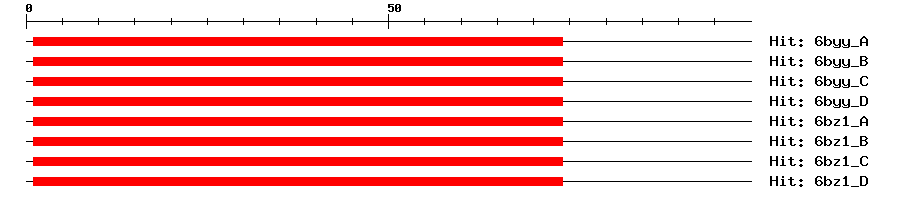

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
6byy_A3e-21174173MEF2 CHIMERA
6byy_B3e-21174173MEF2 CHIMERA
6byy_C3e-21174173MEF2 CHIMERA
6byy_D3e-21174173MEF2 CHIMERA
6bz1_A3e-21174173MEF2 CHIMERA
6bz1_B3e-21174173MEF2 CHIMERA
6bz1_C3e-21174173MEF2 CHIMERA
6bz1_D3e-21174173MEF2 CHIMERA
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor involved in flower development. {ECO:0000250|UniProtKB:Q0HA25}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankLN6818232e-91LN681823.1 Cucumis melo genomic scaffold, anchoredscaffold00014.
GenBankLN7132572e-91LN713257.1 Cucumis melo genomic chromosome, chr_3.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_011657406.12e-57PREDICTED: MADS-box protein CMB1
RefseqXP_011657407.12e-57PREDICTED: MADS-box protein CMB1
SwissprotQ396854e-45CMB1_DIACA; MADS-box protein CMB1
SwissprotQ8LLR25e-45MADS2_VITVI; Agamous-like MADS-box protein MADS2
TrEMBLA0A1S4DVG43e-53A0A1S4DVG4_CUCME; MADS-box protein CMB1
STRINGXP_004144258.18e-57(Cucumis sativus)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G24260.34e-44MIKC_MADS family protein
Publications ? help Back to Top
  1. Jaillon O, et al.
    The grapevine genome sequence suggests ancestral hexaploidization in major angiosperm phyla.
    Nature, 2007. 449(7161): p. 463-7
    [PMID:17721507]
  2. Díaz-Riquelme J,Lijavetzky D,Martínez-Zapater JM,Carmona MJ
    Genome-wide analysis of MIKCC-type MADS box genes in grapevine.
    Plant Physiol., 2009. 149(1): p. 354-69
    [PMID:18997115]
  3. Grimplet J,Martínez-Zapater JM,Carmona MJ
    Structural and functional annotation of the MADS-box transcription factor family in grapevine.
    BMC Genomics, 2016. 17: p. 80
    [PMID:26818751]
