Transcription Factor Information
| Basic Information? help Back to Top | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| TF ID | EMT05224 | ||||||||
| Organism | |||||||||
| Taxonomic ID | |||||||||
| Taxonomic Lineage |
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; Liliopsida; Petrosaviidae; commelinids; Poales; Poaceae; BOP clade; Pooideae; Triticodae; Triticeae; Triticinae; Aegilops
|
||||||||
| Family | HSF | ||||||||
| Protein Properties | Length: 102aa MW: 11126.6 Da PI: 4.9776 | ||||||||
| Description | HSF family protein | ||||||||
| Gene Model |
|
||||||||
| Signature Domain? help Back to Top | |||||||
|---|---|---|---|---|---|---|---|
| No. | Domain | Score | E-value | Start | End | HMM Start | HMM End |
| 1 | HSF_DNA-bind | 81.4 | 1.3e-25 | 40 | 99 | 2 | 61 |
HHHHHHHHHCTGGGTTTSEESSSSSEEEES-HHHHHHHTHHHHSTT--HHHHHHHHHHTT CS
HSF_DNA-bind 2 FlkklyeiledeelkeliswsengnsfvvldeeefakkvLpkyFkhsnfaSFvRQLnmYg 61
Fl+k+y++++d+ +++++sw e+ +fvv+ + efa+++Lp+yFkh+nf+SFvRQLn+Y+
EMT05224 40 FLTKTYQLVDDPCTDHIVSWGEDDATFVVWRPPEFARDLLPNYFKHNNFSSFVRQLNTYN 99
9**********************************************************8 PP
| |||||||

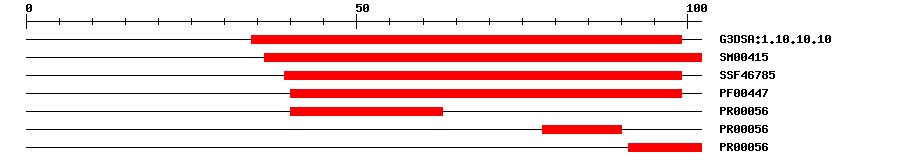

| Protein Features ? help Back to Top | ||||||
|---|---|---|---|---|---|---|
| Database | Entry ID | E-value | Start | End | InterPro ID | Description |
| Gene3D | G3DSA:1.10.10.10 | 4.5E-27 | 34 | 99 | IPR011991 | Winged helix-turn-helix DNA-binding domain |
| SMART | SM00415 | 4.4E-21 | 36 | 102 | IPR000232 | Heat shock factor (HSF)-type, DNA-binding |
| SuperFamily | SSF46785 | 5.3E-23 | 39 | 99 | IPR011991 | Winged helix-turn-helix DNA-binding domain |
| Pfam | PF00447 | 1.9E-21 | 40 | 99 | IPR000232 | Heat shock factor (HSF)-type, DNA-binding |
| PRINTS | PR00056 | 1.6E-16 | 40 | 63 | IPR000232 | Heat shock factor (HSF)-type, DNA-binding |
| PRINTS | PR00056 | 1.6E-16 | 78 | 90 | IPR000232 | Heat shock factor (HSF)-type, DNA-binding |
| PRINTS | PR00056 | 1.6E-16 | 91 | 102 | IPR000232 | Heat shock factor (HSF)-type, DNA-binding |
| Gene Ontology ? help Back to Top | ||||||
|---|---|---|---|---|---|---|
| GO Term | GO Category | GO Description | ||||
| GO:0006355 | Biological Process | regulation of transcription, DNA-templated | ||||
| GO:0008356 | Biological Process | asymmetric cell division | ||||
| GO:0005634 | Cellular Component | nucleus | ||||
| GO:0003700 | Molecular Function | transcription factor activity, sequence-specific DNA binding | ||||
| GO:0043565 | Molecular Function | sequence-specific DNA binding | ||||
| Sequence ? help Back to Top |
|---|
| Protein Sequence Length: 102 aa Download sequence Send to blast |
MAFLVERCGE MVVSMEMGSG AAGAHGAGGG VAGKPVPAPF LTKTYQLVDD PCTDHIVSWG 60 EDDATFVVWR PPEFARDLLP NYFKHNNFSS FVRQLNTYNV TS |

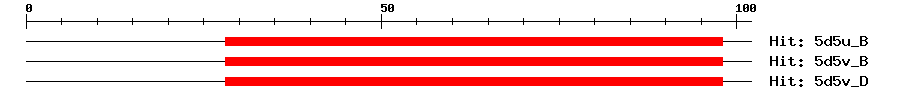

| 3D Structure ? help Back to Top | ||||||
|---|---|---|---|---|---|---|
| PDB ID | Evalue | Query Start | Query End | Hit Start | Hit End | Description |
| 5d5u_B | 1e-16 | 28 | 98 | 17 | 87 | Heat shock factor protein 1 |
| 5d5v_B | 1e-16 | 28 | 98 | 17 | 87 | Heat shock factor protein 1 |
| 5d5v_D | 1e-16 | 28 | 98 | 17 | 87 | Heat shock factor protein 1 |
| Search in ModeBase | ||||||
| Functional Description ? help Back to Top | ||||||
|---|---|---|---|---|---|---|
| Source | Description | |||||
| UniProt | Transcriptional activator that specifically binds DNA of heat shock promoter elements (HSE). {ECO:0000269|PubMed:16202242}. | |||||
| Regulation -- PlantRegMap ? help Back to Top | ||||||
|---|---|---|---|---|---|---|
| Source | Upstream Regulator | Target Gene | ||||
| PlantRegMap | Retrieve | - | ||||
| Annotation -- Nucleotide ? help Back to Top | ||||||
|---|---|---|---|---|---|---|
| Source | Hit ID | E-value | Description | |||
| GenBank | KF208550 | 1e-163 | KF208550.1 Triticum aestivum heat shock factor B4a (HsfB4a) mRNA, complete cds. | |||
| Annotation -- Protein ? help Back to Top | |||||||
|---|---|---|---|---|---|---|---|
| Source | Hit ID | E-value | Description | ||||
| Refseq | XP_020186930.1 | 5e-68 | heat stress transcription factor B-4b-like | ||||
| Swissprot | Q7XHZ0 | 9e-55 | HFB4B_ORYSJ; Heat stress transcription factor B-4b | ||||
| TrEMBL | M8AUY0 | 3e-71 | M8AUY0_AEGTA; Heat stress transcription factor B-4b | ||||
| STRING | EMT05224 | 5e-72 | (Aegilops tauschii) | ||||
| Orthologous Group ? help Back to Top | |||
|---|---|---|---|
| Lineage | Orthologous Group ID | Taxa Number | Gene Number |
| Monocots | OGMP121 | 37 | 394 |
| Best hit in Arabidopsis thaliana ? help Back to Top | ||||||
|---|---|---|---|---|---|---|
| Hit ID | E-value | Description | ||||
| AT1G46264.1 | 7e-41 | heat shock transcription factor B4 | ||||
