Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID EPS63708.1
Organism
Genlisea aurea
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; asterids; lamiids; Lamiales; Lentibulariaceae; Genlisea
Family M-type_MADS
Protein Properties Length: 95aa    MW: 10835.4 Da    PI: 10.6865
Description M-type_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
EPS63708.1genomeLSMUView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF95.81.9e-30959151
                S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
      SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                krienk+nrqvtf+kRr g+lKKA+ELS+LCdaevavii+s++g+l+eyss
  EPS63708.1  9 KRIENKINRQVTFAKRRVGLLKKAKELSILCDAEVAVIIYSNRGRLFEYSS 59
                79***********************************************96 PP

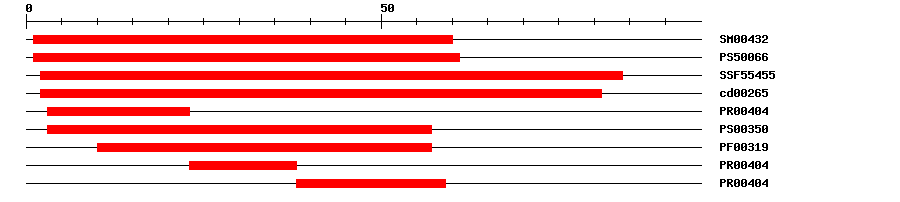

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SMARTSM004323.6E-38160IPR002100Transcription factor, MADS-box
PROSITE profilePS5006631.441161IPR002100Transcription factor, MADS-box
SuperFamilySSF554555.49E-31284IPR002100Transcription factor, MADS-box
CDDcd002654.56E-38281No hitNo description
PRINTSPR004041.7E-30323IPR002100Transcription factor, MADS-box
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PfamPF003191.4E-241057IPR002100Transcription factor, MADS-box
PRINTSPR004041.7E-302338IPR002100Transcription factor, MADS-box
PRINTSPR004041.7E-303859IPR002100Transcription factor, MADS-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 95 aa     Download sequence    Send to blast
MGRGKVQLKR IENKINRQVT FAKRRVGLLK KAKELSILCD AEVAVIIYSN RGRLFEYSSH  60
SSGNMMETIR RYEKSNGGAH QAHVSSREAE QVGEW

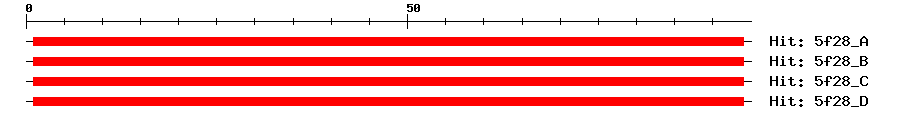

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
5f28_A5e-21194190MEF2C
5f28_B5e-21194190MEF2C
5f28_C5e-21194190MEF2C
5f28_D5e-21194190MEF2C
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor involved in flower development. {ECO:0000250|UniProtKB:Q0HA25}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_007158665.16e-39hypothetical protein PHAVU_002G1723001g, partial
RefseqXP_007158666.17e-39hypothetical protein PHAVU_002G1723001g, partial
RefseqXP_022880858.12e-39developmental protein SEPALLATA 3
RefseqXP_022891279.11e-38agamous-like MADS-box protein AGL9 homolog
SwissprotQ8LLR02e-38MADS4_VITVI; Agamous-like MADS-box protein MADS4
TrEMBLS8DLE98e-63S8DLE9_9LAMI; Uncharacterized protein
STRINGXP_007158666.13e-38(Phaseolus vulgaris)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
AsteridsOGEA4024625
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G24260.32e-40MIKC_MADS family protein
Publications ? help Back to Top
  1. Jaillon O, et al.
    The grapevine genome sequence suggests ancestral hexaploidization in major angiosperm phyla.
    Nature, 2007. 449(7161): p. 463-7
    [PMID:17721507]
  2. Díaz-Riquelme J,Lijavetzky D,Martínez-Zapater JM,Carmona MJ
    Genome-wide analysis of MIKCC-type MADS box genes in grapevine.
    Plant Physiol., 2009. 149(1): p. 354-69
    [PMID:18997115]
  3. Leushkin EV, et al.
    The miniature genome of a carnivorous plant Genlisea aurea contains a low number of genes and short non-coding sequences.
    BMC Genomics, 2013. 14: p. 476
    [PMID:23855885]
  4. Grimplet J,Martínez-Zapater JM,Carmona MJ
    Structural and functional annotation of the MADS-box transcription factor family in grapevine.
    BMC Genomics, 2016. 17: p. 80
    [PMID:26818751]
