Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID EcC017267.10
Organism
Eucalyptus camaldulensis
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Myrtales; Myrtaceae; Myrtoideae; Eucalypteae; Eucalyptus
Family M-type_MADS
Protein Properties Length: 64aa    MW: 7144.29 Da    PI: 11.236
Description M-type_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
EcC017267.10genomeECGDView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF94.35.6e-301059251
                  ---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
        SRF-TF  2 rienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                  ri+n++ rqvtfskRrng+lKKA ELS+LCdaev viifsstgkly+++s
  EcC017267.10 10 RIDNSTSRQVTFSKRRNGLLKKARELSILCDAEVGVIIFSSTGKLYDFAS 59
                  8***********************************************86 PP
Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5006632.142161IPR002100Transcription factor, MADS-box
SMARTSM004323.6E-41160IPR002100Transcription factor, MADS-box
SuperFamilySSF554552.49E-29261IPR002100Transcription factor, MADS-box
CDDcd002654.70E-38260No hitNo description
PRINTSPR004045.0E-30323IPR002100Transcription factor, MADS-box
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PfamPF003192.4E-271057IPR002100Transcription factor, MADS-box
PRINTSPR004045.0E-302338IPR002100Transcription factor, MADS-box
PRINTSPR004045.0E-303859IPR002100Transcription factor, MADS-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003677Molecular FunctionDNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 64 aa     Download sequence    Send to blast
MGRGKIAIRR IDNSTSRQVT FSKRRNGLLK KARELSILCD AEVGVIIFSS TGKLYDFASS  60
RLDP

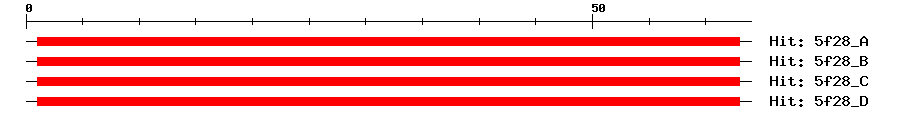

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
5f28_A3e-21163163MEF2C
5f28_B3e-21163163MEF2C
5f28_C3e-21163163MEF2C
5f28_D3e-21163163MEF2C
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor. Required for root plasticity in response to nitrate, NO(3)(-). Promotes lateral root growth in a NRT1.1-dependent manner. {ECO:0000269|PubMed:15667327, ECO:0000269|PubMed:17148611, ECO:0000269|PubMed:9430595}.
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Induced by nitrate in root cell culture, (PubMed:9430595, PubMed:17148611). In roots, seems induced by nitrogen (N) deprivation (e.g. nitrate free medium) but rapidly repressed by N re-supply (e.g. nitrate, glutamine and ammonium) (PubMed:16021502). Slight repression in shoots during nitrogen (N) deprivation. {ECO:0000269|PubMed:16021502, ECO:0000269|PubMed:17148611, ECO:0000269|PubMed:9430595}.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_007148344.11e-34hypothetical protein PHAVU_006G200400g
RefseqXP_014620691.13e-34MADS-box transcription factor NMHC5 isoform X4
RefseqXP_028803841.12e-34MADS-box transcription factor ANR1-like isoform X6
SwissprotQ9SI386e-33ANR1_ARATH; MADS-box transcription factor ANR1
TrEMBLA0A0L9UYB21e-33A0A0L9UYB2_PHAAN; Uncharacterized protein
TrEMBLA0A1L5YEI12e-33A0A1L5YEI1_PRUPE; MADS-box protein 12
STRINGXP_007148344.14e-34(Phaseolus vulgaris)
STRINGcassava4.1_032220m4e-34(Manihot esculenta)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT2G14210.12e-35AGAMOUS-like 44
Publications ? help Back to Top
  1. Heyndrickx KS,Vandepoele K
    Systematic identification of functional plant modules through the integration of complementary data sources.
    Plant Physiol., 2012. 159(3): p. 884-901
    [PMID:22589469]
  2. Yan Y,Wang H,Hamera S,Chen X,Fang R
    miR444a has multiple functions in the rice nitrate-signaling pathway.
    Plant J., 2014. 78(1): p. 44-55
    [PMID:24460537]
  3. Lei L, et al.
    Nitrogen use efficiency is regulated by interacting proteins relevant to development in wheat.
    Plant Biotechnol. J., 2018. 16(6): p. 1214-1226
    [PMID:29193541]
  4. Sun CH, et al.
    Chrysanthemum MADS-box transcription factor CmANR1 modulates lateral root development via homo-/heterodimerization to influence auxin accumulation in Arabidopsis.
    Plant Sci., 2018. 266: p. 27-36
    [PMID:29241564]
