Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID EcC052959.30
Organism
Eucalyptus camaldulensis
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Myrtales; Myrtaceae; Myrtoideae; Eucalypteae; Eucalyptus
Family MIKC_MADS
Protein Properties Length: 253aa    MW: 28962 Da    PI: 8.2034
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
EcC052959.30genomeECGDView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF99.71.1e-31959151
                  S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
        SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                  krienk+nrqvtf+kRrng+lKKA+ELSvLCdaeva+iifs++gklye++s
  EcC052959.30  9 KRIENKINRQVTFAKRRNGLLKKAYELSVLCDAEVALIIFSNRGKLYEFCS 59
                  79***********************************************96 PP
2K-box93.82.8e-318517510100
         K-box  10 eeakaeslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenkaLrkklee 100
                    e+ + s+qqe+ +Lk+++e Lqr+qR+llGe+L++Ls keL++Le+qL+ slk+iRs++++++l+q+ +lq++e+ l+e+n++L+++l+e
  EcC052959.30  85 RESLELSCQQEYLRLKARYEALQRTQRNLLGEELGQLSSKELESLERQLDGSLKQIRSRRTQYMLDQLTDLQHREQLLHEANRTLNQRLME 175
                   55556689*******************************************************************************9986 PP

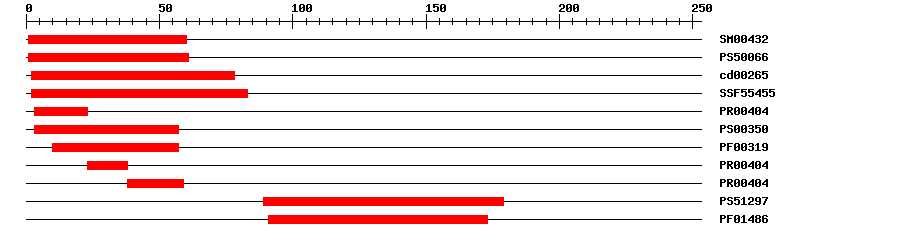

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SMARTSM004321.3E-41160IPR002100Transcription factor, MADS-box
PROSITE profilePS5006633.515161IPR002100Transcription factor, MADS-box
CDDcd002652.89E-45278No hitNo description
SuperFamilySSF554556.41E-34283IPR002100Transcription factor, MADS-box
PRINTSPR004049.5E-33323IPR002100Transcription factor, MADS-box
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PfamPF003192.4E-261057IPR002100Transcription factor, MADS-box
PRINTSPR004049.5E-332338IPR002100Transcription factor, MADS-box
PRINTSPR004049.5E-333859IPR002100Transcription factor, MADS-box
PROSITE profilePS5129714.83689179IPR002487Transcription factor, K-box
PfamPF014862.2E-2491173IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 253 aa     Download sequence    Send to blast
MGRGRVELKR IENKINRQVT FAKRRNGLLK KAYELSVLCD AEVALIIFSN RGKLYEFCSS  60
SSMLKTLERY QKCNYGALEP NVSARESLEL SCQQEYLRLK ARYEALQRTQ RNLLGEELGQ  120
LSSKELESLE RQLDGSLKQI RSRRTQYMLD QLTDLQHREQ LLHEANRTLN QRLMEGYQVN  180
ALQLNQHAEE VGGYGHPPPP PLPPQPLAQP HSEAFFHPLE CEPTLQMGYQ PDPVSSVITG  240
GPSINNFMPG WLP

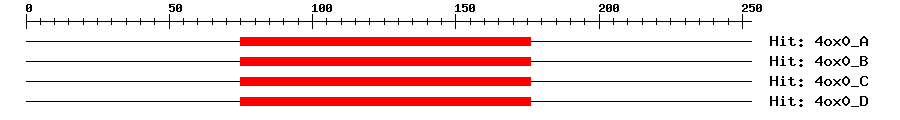

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
4ox0_A1e-41751761104Developmental protein SEPALLATA 3
4ox0_B1e-41751761104Developmental protein SEPALLATA 3
4ox0_C1e-41751761104Developmental protein SEPALLATA 3
4ox0_D1e-41751761104Developmental protein SEPALLATA 3
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor involved in flower development. {ECO:0000250|UniProtKB:Q0HA25}.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_010025292.10.0PREDICTED: agamous-like MADS-box protein AGL9 homolog isoform X1
SwissprotQ8LLR01e-140MADS4_VITVI; Agamous-like MADS-box protein MADS4
TrEMBLA0A059B7E10.0A0A059B7E1_EUCGR; Uncharacterized protein
STRINGXP_010025292.10.0(Eucalyptus grandis)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G24260.11e-124MIKC_MADS family protein
Publications ? help Back to Top
  1. Jaillon O, et al.
    The grapevine genome sequence suggests ancestral hexaploidization in major angiosperm phyla.
    Nature, 2007. 449(7161): p. 463-7
    [PMID:17721507]
  2. Díaz-Riquelme J,Lijavetzky D,Martínez-Zapater JM,Carmona MJ
    Genome-wide analysis of MIKCC-type MADS box genes in grapevine.
    Plant Physiol., 2009. 149(1): p. 354-69
    [PMID:18997115]
  3. Grimplet J,Martínez-Zapater JM,Carmona MJ
    Structural and functional annotation of the MADS-box transcription factor family in grapevine.
    BMC Genomics, 2016. 17: p. 80
    [PMID:26818751]
