Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Eucgr.E02051.1.p
Common NameEUGRSUZ_E02051, LOC104446583
Organism
Eucalyptus grandis
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Myrtales; Myrtaceae; Myrtoideae; Eucalypteae; Eucalyptus
Family B3
Protein Properties Length: 162aa    MW: 18414.3 Da    PI: 9.9865
Description B3 family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Eucgr.E02051.1.pgenomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1B338.42.2e-1250156296
                       EEE-..-HHHHTT-EE--HHH.HTT...........---..--SEEEEEETTS.-EEEEEE..EEETTEEEE-TTH.HHHHHHHT--TT-EEE CS
                B3   2 fkvltpsdvlksgrlvlpkkfaeeh...........ggkkeesktltledesg.rsWevkliyrkksgryvltkGW.keFvkangLkegDfvv 81
                       +k lt+sd + ++rl + ++f+++h           + ++ ++ +++++d +   + ++ + ++ +sg++v+++GW keFvk  gL +gD v
  Eucgr.E02051.1.p  50 KKRLTQSDLGHLSRLLIRRDFVKSHflrwmneetvrQVESSKGADVIVRDMDTcSEHRMVFVFWASSGSHVFKGGWiKEFVKRRGLAVGDEVG 142
                       5889************************98888877444457788999997767666677777*************999***********999 PP

                       EEE-SS.SEE..EEEE CS
                B3  82 Fkldgr.sefelvvkv 96
                       ++   + s  ++++++
  Eucgr.E02051.1.p 143 IYW--EpSASKFHFSL 156
                       995..44555457666 PP

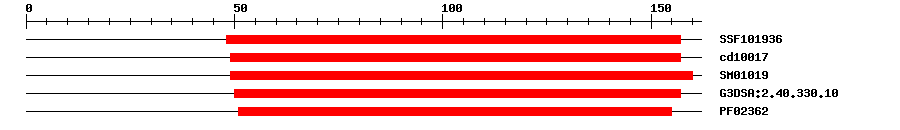

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SuperFamilySSF1019366.87E-1648157IPR015300DNA-binding pseudobarrel domain
CDDcd100175.66E-1749157No hitNo description
SMARTSM010190.003249160IPR003340B3 DNA binding domain
Gene3DG3DSA:2.40.330.107.4E-1650157IPR015300DNA-binding pseudobarrel domain
PfamPF023626.0E-951155IPR003340B3 DNA binding domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 162 aa     Download sequence    Send to blast
MASLTNAESF IVEKKAKCKR TQKGKKEASG CGAEEVCTEL TLLFDPYKIK KRLTQSDLGH  60
LSRLLIRRDF VKSHFLRWMN EETVRQVESS KGADVIVRDM DTCSEHRMVF VFWASSGSHV  120
FKGGWIKEFV KRRGLAVGDE VGIYWEPSAS KFHFSLLHKA N*
Cis-element ? help Back to Top
SourceLink
PlantRegMapEucgr.E02051.1.p
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_010058724.11e-116PREDICTED: putative B3 domain-containing protein At1g78640
TrEMBLA0A059C4Z61e-115A0A059C4Z6_EUCGR; Uncharacterized protein
STRINGXP_010058724.11e-116(Eucalyptus grandis)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM456952
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT2G33720.16e-29B3 family protein
