Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Eucgr.G01683.1.p
Common NameEUGRSUZ_G01683
Organism
Eucalyptus grandis
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Myrtales; Myrtaceae; Myrtoideae; Eucalypteae; Eucalyptus
Family bHLH
Protein Properties Length: 398aa    MW: 43635.1 Da    PI: 5.7228
Description bHLH family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Eucgr.G01683.1.pgenomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1HLH27.55.5e-09240287455
                       HHHHHHHHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHHH CS
               HLH   4 ahnerErrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksLq 55
                       +h+ +Er RR++i ++   L++l+P +    +k   Ka +L + ++Y++sLq
  Eucgr.G01683.1.p 240 SHSLAERARREKISQRTKYLQDLVPGC----NKIAGKAGMLDEIINYVQSLQ 287
                       8**************************....999*****************9 PP

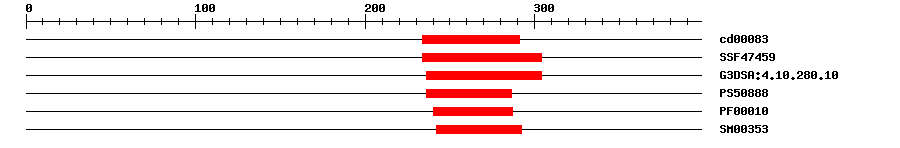

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
CDDcd000834.35E-8234291No hitNo description
SuperFamilySSF474598.11E-15234304IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
Gene3DG3DSA:4.10.280.109.8E-16236304IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
PROSITE profilePS5088814.551236286IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
PfamPF000101.2E-6240287IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
SMARTSM003532.7E-7242292IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 398 aa     Download sequence    Send to blast
MMNLGLQPEM FFHLNAPQVN LAVAGECSDM TVLERQRTRF LWLHEQQQLL QKGHFGAGQF  60
AAGYGDGFMM MSGGGVANLN RHLKVDPGFL KYTSEVGGYE IPGQGFVACE IEVGTGPEIT  120
SPISRTSSCP PPPAASVDTG CGEMASSEKA GSRVRKDSCK KRKYDKAKDT KVEDDLKDKK  180
FKGSAEEGES KTTEQTNDKD SNNNNRETSA STSKENSRVS EVEKPDYIHV RARRGQATDS  240
HSLAERARRE KISQRTKYLQ DLVPGCNKIA GKAGMLDEII NYVQSLQGQV EFLSMKLAAV  300
TSRVDFNMDP LLAKEMLPNC TASFPAIDIP TEMINAAYLQ YNPAHQVVSC QESEVIPNAN  360
VQRTISAPAL MAEEFFDPSS FAPLQPSSAW NFDVQNI*
Functional Description ? help Back to Top
Source Description
UniProtTranscription factor that binds DNA to G box 5'-CACGTG-3' and, to a lower extent, to E-box 5'-CANNTG-3' in vitro. Binds to chromatin DNA of the FT gene and promotes its expression, and thus triggers flowering in response to blue light. {ECO:0000269|PubMed:18988809, ECO:0000269|PubMed:24130508}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapEucgr.G01683.1.p
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Accumulates strongly in response to blue light due to reduced preventing 26S proteasome-mediated degradation in an ADO1/ZTL and ADO2/LKP2 dependent manner, but levels decrease in the absence of blue light via 26S proteasome degradation (at protein level). {ECO:0000269|PubMed:24101505}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_010066167.20.0PREDICTED: transcription factor bHLH63
SwissprotQ8GY612e-54BH063_ARATH; Transcription factor bHLH63
TrEMBLA0A059BEA50.0A0A059BEA5_EUCGR; Uncharacterized protein
STRINGXP_010066167.10.0(Eucalyptus grandis)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM59472543
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT4G34530.15e-54cryptochrome-interacting basic-helix-loop-helix 1
Publications ? help Back to Top
  1. Skinner MK,Rawls A,Wilson-Rawls J,Roalson EH
    Basic helix-loop-helix transcription factor gene family phylogenetics and nomenclature.
    Differentiation, 2010. 80(1): p. 1-8
    [PMID:20219281]
  2. Yang D,Zhao W,Meng Y,Li H,Liu B
    A CIB1-LIKE transcription factor GmCIL10 from soybean positively regulates plant flowering.
    Sci China Life Sci, 2015. 58(3): p. 261-9
    [PMID:25651969]
  3. Katsura Y, et al.
    An optogenetic system for interrogating the temporal dynamics of Akt.
    Sci Rep, 2015. 5: p. 14589
    [PMID:26423353]
  4. Taslimi A, et al.
    Optimized second-generation CRY2-CIB dimerizers and photoactivatable Cre recombinase.
    Nat. Chem. Biol., 2016. 12(6): p. 425-30
    [PMID:27065233]
  5. Liu Q, et al.
    The Blue Light-Dependent Polyubiquitination and Degradation of Arabidopsis Cryptochrome2 Requires Multiple E3 Ubiquitin Ligases.
    Plant Cell Physiol., 2016. 57(10): p. 2175-2186
    [PMID:27516416]
  6. Pathak GP, et al.
    Bidirectional approaches for optogenetic regulation of gene expression in mammalian cells using Arabidopsis cryptochrome 2.
    Nucleic Acids Res., 2017. 45(20): p. e167
    [PMID:28431041]
  7. Duan L, et al.
    Understanding CRY2 interactions for optical control of intracellular signaling.
    Nat Commun, 2017. 8(1): p. 547
    [PMID:28916751]
  8. Quejada JR, et al.
    Optimized light-inducible transcription in mammalian cells using Flavin Kelch-repeat F-box1/GIGANTEA and CRY2/CIB1.
    Nucleic Acids Res., 2017. 45(20): p. e172
    [PMID:29040770]
  9. Liu Y, et al.
    CIB1 and CO interact to mediate CRY2-dependent regulation of flowering.
    EMBO Rep., 2019.
    [PMID:30126927]
