Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Eucgr.K02546.1.p
Common NameEUGRSUZ_K02546
Organism
Eucalyptus grandis
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Myrtales; Myrtaceae; Myrtoideae; Eucalypteae; Eucalyptus
Family MIKC_MADS
Protein Properties Length: 246aa    MW: 28149.1 Da    PI: 9.0931
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Eucgr.K02546.1.pgenomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF99.81.1e-31959151
                      S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
            SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                      krienk+nrqvtf+kRrng+lKKA+ELSvLCdaeva+iifs++gklye++s
  Eucgr.K02546.1.p  9 KRIENKINRQVTFAKRRNGLLKKAYELSVLCDAEVALIIFSNRGKLYEFCS 59
                      79***********************************************96 PP
2K-box103.23.3e-34811738100
             K-box   8 sleeakaeslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenkaLrkklee 100
                       + + +++++++q++ kLk ++e Lqr+qR+llGe+L++L+ keL+qLe+qLe+slk+iRs K++++++q+ +lq+ke++l e+n++Lrkklee
  Eucgr.K02546.1.p  81 NCSINEMQNSYQDYLKLKTRVEVLQRSQRNLLGEELGPLNSKELEQLEHQLENSLKQIRSAKTQFMFDQLAHLQHKEQMLVEANRELRKKLEE 173
                       467899************************************************************************************987 PP

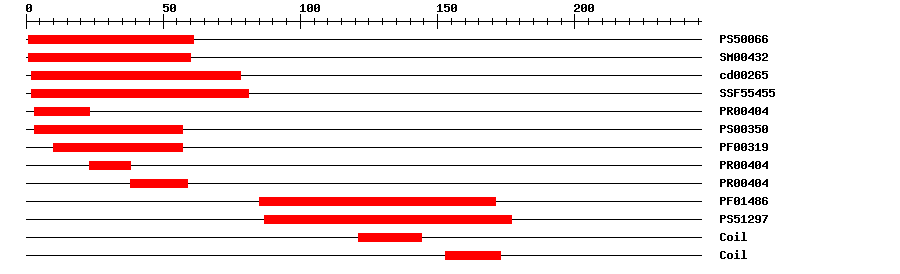

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5006633.726161IPR002100Transcription factor, MADS-box
SMARTSM004322.0E-42160IPR002100Transcription factor, MADS-box
CDDcd002658.56E-46278No hitNo description
SuperFamilySSF554551.96E-34281IPR002100Transcription factor, MADS-box
PRINTSPR004044.7E-33323IPR002100Transcription factor, MADS-box
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PfamPF003192.3E-261057IPR002100Transcription factor, MADS-box
PRINTSPR004044.7E-332338IPR002100Transcription factor, MADS-box
PRINTSPR004044.7E-333859IPR002100Transcription factor, MADS-box
PfamPF014863.9E-2785171IPR002487Transcription factor, K-box
PROSITE profilePS5129715.22887177IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 246 aa     Download sequence    Send to blast
MGRGKVELKR IENKINRQVT FAKRRNGLLK KAYELSVLCD AEVALIIFSN RGKLYEFCSS  60
SSMMKTIEKY QKCSYGSLET NCSINEMQNS YQDYLKLKTR VEVLQRSQRN LLGEELGPLN  120
SKELEQLEHQ LENSLKQIRS AKTQFMFDQL AHLQHKEQML VEANRELRKK LEESNTRIPL  180
RLGWEAEDHN NISYSRLPTQ SQGLIFQPLG GNPTLQIGYN PAGSNELNVS AADQHPNGFI  240
PGWML*

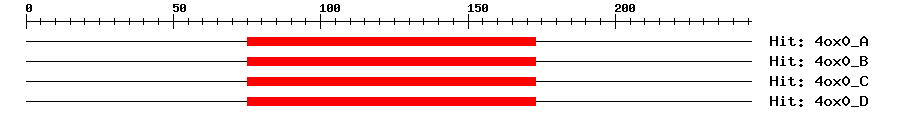

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
4ox0_A1e-29751731103Developmental protein SEPALLATA 3
4ox0_B1e-29751731103Developmental protein SEPALLATA 3
4ox0_C1e-29751731103Developmental protein SEPALLATA 3
4ox0_D1e-29751731103Developmental protein SEPALLATA 3
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor involved in flower development. {ECO:0000250|UniProtKB:Q0HA25}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapEucgr.K02546.1.p
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAF0299770.0AF029977.1 Eucalyptus grandis MADS box protein (EGM3) mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqNP_001289642.11e-176developmental protein SEPALLATA 1-like
SwissprotQ8LLR21e-119MADS2_VITVI; Agamous-like MADS-box protein MADS2
TrEMBLA0A059A6I60.0A0A059A6I6_EUCGR; Uncharacterized protein
STRINGXP_010037259.10.0(Eucalyptus grandis)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM32892765
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G02310.11e-109MIKC_MADS family protein
Publications ? help Back to Top
  1. Jaillon O, et al.
    The grapevine genome sequence suggests ancestral hexaploidization in major angiosperm phyla.
    Nature, 2007. 449(7161): p. 463-7
    [PMID:17721507]
  2. Díaz-Riquelme J,Lijavetzky D,Martínez-Zapater JM,Carmona MJ
    Genome-wide analysis of MIKCC-type MADS box genes in grapevine.
    Plant Physiol., 2009. 149(1): p. 354-69
    [PMID:18997115]
  3. Grimplet J,Martínez-Zapater JM,Carmona MJ
    Structural and functional annotation of the MADS-box transcription factor family in grapevine.
    BMC Genomics, 2016. 17: p. 80
    [PMID:26818751]
