Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID GRMZM2G020254_P02
Common NameZEAMMB73_343636, Zm.32914
Organism
Zea mays
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; Liliopsida; Petrosaviidae; commelinids; Poales; Poaceae; PACMAD clade; Panicoideae; Andropogonodae; Andropogoneae; Tripsacinae; Zea
Family WRKY
Protein Properties Length: 201aa    MW: 22412.3 Da    PI: 8.583
Description WRKY family protein
Gene Model
Gene Model ID Type Source Coding Sequence
GRMZM2G020254_P02genomeMaizeSequenceView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1WRKY101.84e-32112167359
                        -SS-EEEEEEE--TT-SS-EEEEEE-STT---EEEEEE-SSSTTEEEEEEES--SS- CS
               WRKY   3 DgynWrKYGqKevkgsefprsYYrCtsagCpvkkkversaedpkvveitYegeHnhe 59
                        Dgy+WrKYGqK+vkgsefprsYY+Ct+++Cpvk+kve++  d++v ei+Y+geHnh
  GRMZM2G020254_P02 112 DGYSWRKYGQKKVKGSEFPRSYYKCTHPSCPVKRKVETTP-DGQVAEIVYSGEHNHL 167
                        9***************************************.***************5 PP

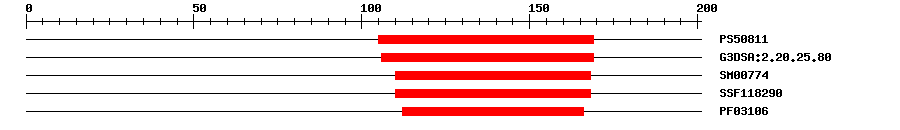

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5081122.55105169IPR003657WRKY domain
Gene3DG3DSA:2.20.25.802.8E-27106169IPR003657WRKY domain
SMARTSM007747.5E-33110168IPR003657WRKY domain
SuperFamilySSF1182903.4E-24110168IPR003657WRKY domain
PfamPF031064.5E-25112166IPR003657WRKY domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0010214Biological Processseed coat development
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0043565Molecular Functionsequence-specific DNA binding
Plant Ontology ? help Back to Top
PO Term PO Category PO Description
PO:0000037anatomyshoot apex
PO:0006310anatomytassel floret
PO:0006339anatomyjuvenile vascular leaf
PO:0006340anatomyadult vascular leaf
PO:0006341anatomyprimary shoot system
PO:0006354anatomyear floret
PO:0006505anatomycentral spike of ear inflorescence
PO:0008018anatomytransition vascular leaf
PO:0009001anatomyfruit
PO:0009009anatomyplant embryo
PO:0009025anatomyvascular leaf
PO:0009054anatomyinflorescence bract
PO:0009066anatomyanther
PO:0009074anatomystyle
PO:0009084anatomypericarp
PO:0009089anatomyendosperm
PO:0020040anatomyleaf base
PO:0020104anatomyleaf sheath
PO:0020126anatomytassel inflorescence
PO:0020127anatomyprimary root
PO:0020136anatomyear inflorescence
PO:0020142anatomystem internode
PO:0020148anatomyshoot apical meristem
PO:0025142anatomyleaf tip
PO:0025287anatomyseedling coleoptile
PO:0001007developmental stagepollen development stage
PO:0001009developmental stageD pollen mother cell meiosis stage
PO:0001052developmental stagevascular leaf expansion stage
PO:0001053developmental stagevascular leaf post-expansion stage
PO:0001083developmental stageinflorescence development stage
PO:0001094developmental stageplant embryo coleoptilar stage
PO:0001095developmental stageplant embryo true leaf formation stage
PO:0001180developmental stageplant proembryo stage
PO:0007001developmental stageearly whole plant fruit ripening stage
PO:0007003developmental stageIL.03 full inflorescence length reached stage
PO:0007006developmental stageIL.00 inflorescence just visible stage
PO:0007015developmental stageradicle emergence stage
PO:0007016developmental stagewhole plant flowering stage
PO:0007022developmental stageseed imbibition stage
PO:0007031developmental stagemid whole plant fruit ripening stage
PO:0007032developmental stagewhole plant fruit formation stage up to 10%
PO:0007045developmental stagecoleoptile emergence stage
PO:0007063developmental stageLP.07 seven leaves visible stage
PO:0007065developmental stageLP.05 five leaves visible stage
PO:0007072developmental stageLP.18 eighteen leaves visible stage
PO:0007094developmental stageLP.01 one leaf visible stage
PO:0007101developmental stageLP.09 nine leaves visible stage
PO:0007104developmental stageLP.15 fifteen leaves visible stage
PO:0007106developmental stageLP.03 three leaves visible stage
PO:0007112developmental stage1 main shoot growth stage
PO:0007116developmental stageLP.11 eleven leaves visible stage
PO:0007633developmental stageendosperm development stage
PO:0021004developmental stageinflorescence initiation stage
Sequence ? help Back to Top
Protein Sequence    Length: 201 aa     Download sequence    Send to blast
MQPHEKVAVL KPVASRPFSS FWPFPKFLHD FNATCSPTIT FPQETELIRP KATRLASLPG  60
DLPTQIAATT DAGSDTMSEE VEGYAKHHTY RDHATACQAA RRNGERSRLS LDGYSWRKYG  120
QKKVKGSEFP RSYYKCTHPS CPVKRKVETT PDGQVAEIVY SGEHNHLKPG KPCPPRKPLL  180
STSTDAVMCD THGIDDMTPP E
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
2ayd_A4e-161121691674WRKY transcription factor 1
Search in ModeBase
Expression -- Microarray ? help Back to Top
Source ID
Expression AtlasGRMZM2G020254
Expression -- Description ? help Back to Top
Source Description
UniprotTISSUE SPECIFICITY: Leaf promordia, trichomes, atrichoblasts, fertilized eggs, seed coat.
Functional Description ? help Back to Top
Source Description
UniProtTranscription factor. Interacts specifically with the W box (5'-(T)TGAC[CT]-3'), a frequently occurring elicitor-responsive cis-acting element. Regulates trichome development, production of mucilage and tannin in seed coats, and maybe root hair development. {ECO:0000269|PubMed:12084832}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapGRMZM2G020254_P02
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Not induced by salicylic acid or wounding. {ECO:0000269|PubMed:12084832}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankEU9521970.0EU952197.1 Zea mays clone 1219862 mRNA sequence.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_008662747.11e-150probable WRKY transcription factor 3 isoform X2
SwissprotQ9ZUU05e-29WRK44_ARATH; WRKY transcription factor 44
TrEMBLK7TH291e-148K7TH29_MAIZE; Putative WRKY DNA-binding domain superfamily protein
STRINGGRMZM2G020254_P031e-149(Zea mays)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT2G37260.21e-31WRKY family protein
Publications ? help Back to Top
  1. Kim K,Jiang K,Teng SL,Feldman LJ,Huang H
    Using biologically interrelated experiments to identify pathway genes in Arabidopsis.
    Bioinformatics, 2012. 28(6): p. 815-22
    [PMID:22271267]
  2. Simon M, et al.
    Tissue-specific profiling reveals transcriptome alterations in Arabidopsis mutants lacking morphological phenotypes.
    Plant Cell, 2013. 25(9): p. 3175-85
    [PMID:24014549]
  3. Ranocha P,Francoz E,Burlat V,Dunand C
    Expression of PRX36, PMEI6 and SBT1.7 is controlled by complex transcription factor regulatory networks for proper seed coat mucilage extrusion.
    Plant Signal Behav, 2014. 9(11): p. e977734
    [PMID:25531128]
  4. Verweij W, et al.
    Functionally Similar WRKY Proteins Regulate Vacuolar Acidification in Petunia and Hair Development in Arabidopsis.
    Plant Cell, 2016. 28(3): p. 786-803
    [PMID:26977085]
  5. Gonzalez A, et al.
    TTG2 controls the developmental regulation of seed coat tannins in Arabidopsis by regulating vacuolar transport steps in the proanthocyanidin pathway.
    Dev. Biol., 2016. 419(1): p. 54-63
    [PMID:27046632]
  6. Hassani-Pak K, et al.
    Developing integrated crop knowledge networks to advance candidate gene discovery.
    Appl Transl Genom, 2016. 11: p. 18-26
    [PMID:28018846]
