Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID GRMZM2G087095_P01
Common NameMADS24, zmm24
Organism
Zea mays
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; Liliopsida; Petrosaviidae; commelinids; Poales; Poaceae; PACMAD clade; Panicoideae; Andropogonodae; Andropogoneae; Tripsacinae; Zea
Family MIKC_MADS
Protein Properties Length: 240aa    MW: 27335.2 Da    PI: 8.3029
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
GRMZM2G087095_P01genomeMaizeSequenceView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF87.95.5e-281059251
                       ---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
             SRF-TF  2 rienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                       rienk+ rqvtf+kRrng+lKKA+ELS+LCdaeva+++fs+ g+ly +ss
  GRMZM2G087095_P01 10 RIENKISRQVTFAKRRNGLLKKAYELSILCDAEVALVLFSHAGRLYQFSS 59
                       9***********************************************96 PP
2K-box97.12.7e-3283173999
              K-box   9 leeakaeslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenkaLrkkle 99
                         ++ ++++ +qe+ kLk+++e Lq++qR+llGedL  Ls  eL qLe+q++k lk+iRs+K+++ll+++ +l++ke++lq++n+ L++kl
  GRMZM2G087095_P01  83 PSSDQMQNNYQEYVKLKARVEVLQHSQRNLLGEDLALLSPSELDQLENQVDKTLKQIRSRKTQVLLDELCDLKRKEQMLQDANRVLKRKLG 173
                        567889**********************************************************************************986 PP
Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5006631.02161IPR002100Transcription factor, MADS-box
SMARTSM004322.9E-36160IPR002100Transcription factor, MADS-box
CDDcd002653.65E-41279No hitNo description
SuperFamilySSF554552.49E-30287IPR002100Transcription factor, MADS-box
PRINTSPR004044.6E-29323IPR002100Transcription factor, MADS-box
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PfamPF003191.1E-251057IPR002100Transcription factor, MADS-box
PRINTSPR004044.6E-292338IPR002100Transcription factor, MADS-box
PRINTSPR004044.6E-293859IPR002100Transcription factor, MADS-box
PfamPF014862.8E-2885172IPR002487Transcription factor, K-box
PROSITE profilePS5129715.27988178IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 240 aa     Download sequence    Send to blast
MGRGKVVLQR IENKISRQVT FAKRRNGLLK KAYELSILCD AEVALVLFSH AGRLYQFSSS  60
SNLLKTLERY QRYIYASADA AVPSSDQMQN NYQEYVKLKA RVEVLQHSQR NLLGEDLALL  120
SPSELDQLEN QVDKTLKQIR SRKTQVLLDE LCDLKRKEQM LQDANRVLKR KLGEFEAEAA  180
SPPQLAWQGE GGMLSHDPPQ PEHFFQALES NPCLQPTYHT MDMNQQPVPA PGGCYPAWMS

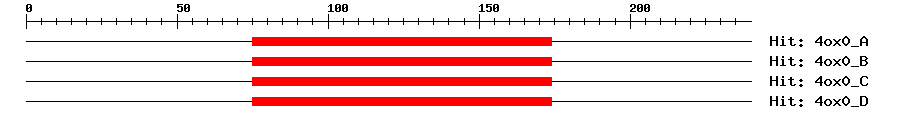

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
4ox0_A7e-23751741103Developmental protein SEPALLATA 3
4ox0_B7e-23751741103Developmental protein SEPALLATA 3
4ox0_C7e-23751741103Developmental protein SEPALLATA 3
4ox0_D7e-23751741103Developmental protein SEPALLATA 3
Search in ModeBase
Expression -- UniGene ? help Back to Top
UniGene ID E-value Expressed in
Zm.44240.0ear| endosperm| glume| meristem| pericarp| tassel
Expression -- Microarray ? help Back to Top
Source ID
Expression AtlasGRMZM2G087095
Expression -- Description ? help Back to Top
Source Description
UniprotTISSUE SPECIFICITY: Highly expressed in leaves and at low levels in roots and spikelets (rice flower). {ECO:0000269|Ref.7}.
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor.
Cis-element ? help Back to Top
SourceLink
PlantRegMapGRMZM2G087095_P01
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankBT0424060.0BT042406.1 Zea mays full-length cDNA clone ZM_BFb0221D10 mRNA, complete cds.
GenBankEU9617990.0EU961799.1 Zea mays clone 238290 MADS-box transcription factor 34 mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqNP_001105149.21e-179MADS24
SwissprotQ6Q9H61e-120MAD34_ORYSJ; MADS-box transcription factor 34
TrEMBLB4FZ681e-178B4FZ68_MAIZE; MADS transcription factor
STRINGGRMZM2G087095_P011e-179(Zea mays)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MonocotsOGMP136182630
Representative plantOGRP1617761
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G02310.19e-79MIKC_MADS family protein
Publications ? help Back to Top
  1. Alexandrov NN, et al.
    Insights into corn genes derived from large-scale cDNA sequencing.
    Plant Mol. Biol., 2009. 69(1-2): p. 179-94
    [PMID:18937034]
  2. Kobayashi K,Maekawa M,Miyao A,Hirochika H,Kyozuka J
    PANICLE PHYTOMER2 (PAP2), encoding a SEPALLATA subfamily MADS-box protein, positively controls spikelet meristem identity in rice.
    Plant Cell Physiol., 2010. 51(1): p. 47-57
    [PMID:19933267]
  3. Gao X, et al.
    The SEPALLATA-like gene OsMADS34 is required for rice inflorescence and spikelet development.
    Plant Physiol., 2010. 153(2): p. 728-40
    [PMID:20395452]
  4. Khanday I,Yadav SR,Vijayraghavan U
    Rice LHS1/OsMADS1 controls floret meristem specification by coordinated regulation of transcription factors and hormone signaling pathways.
    Plant Physiol., 2013. 161(4): p. 1970-83
    [PMID:23449645]
  5. Lin X, et al.
    The pleiotropic SEPALLATA-like gene OsMADS34 reveals that the 'empty glumes' of rice (Oryza sativa) spikelets are in fact rudimentary lemmas.
    New Phytol., 2014. 202(2): p. 689-702
    [PMID:24372518]
  6. Conrad LJ, et al.
    The polycomb group gene EMF2B is essential for maintenance of floral meristem determinacy in rice.
    Plant J., 2014. 80(5): p. 883-94
    [PMID:25279942]
  7. Liu M,Li H,Su Y,Li W,Shi C
    G1/ELE Functions in the Development of Rice Lemmas in Addition to Determining Identities of Empty Glumes.
    Front Plant Sci, 2016. 7: p. 1006
    [PMID:27462334]
