Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID GRMZM2G117961_P01
Common NameLOC103628959, MADS45, Zm.147307
Organism
Zea mays
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; Liliopsida; Petrosaviidae; commelinids; Poales; Poaceae; PACMAD clade; Panicoideae; Andropogonodae; Andropogoneae; Tripsacinae; Zea
Family MIKC_MADS
Protein Properties Length: 221aa    MW: 25142.9 Da    PI: 7.5007
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
GRMZM2G117961_P01genomeMaizeSequenceView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF77.68.8e-251056248
                       ---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEE CS
             SRF-TF  2 rienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklye 48
                       rien   rqvtf+kRr+g+lKKA ELSvLCda v +i+fs +gkly+
  GRMZM2G117961_P01 10 RIENPVHRQVTFCKRRAGLLKKARELSVLCDAHVGIIVFSAHGKLYD 56
                       8********************************************97 PP
2K-box49.22.2e-1782173999
              K-box   9 leeakaeslqqelakLkkeienLqreqRhllGedLe.sLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenkaLrkkle 99
                          +++    +qe   L++ei+ Lq+ +R + G+  +  ++++eL+ Le+ Le  + +iRs K+++++++i+ l+ ke +lq +n+ L++k+
  GRMZM2G117961_P01  82 CGDNNRMDAKQETMVLQQEINLLQKGLRYIYGNRTNeHMNVEELNALERYLEIWMYNIRSAKMQIMIQEIQALKSKEGMLQAANEVLQEKIV 173
                        5677888899**********************998626***************************************************996 PP

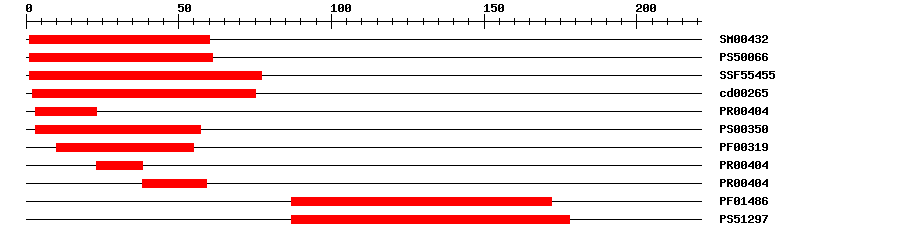

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SMARTSM004325.1E-35160IPR002100Transcription factor, MADS-box
PROSITE profilePS5006629.408161IPR002100Transcription factor, MADS-box
SuperFamilySSF554551.44E-27177IPR002100Transcription factor, MADS-box
CDDcd002658.99E-39275No hitNo description
PRINTSPR004043.2E-26323IPR002100Transcription factor, MADS-box
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PfamPF003199.2E-241055IPR002100Transcription factor, MADS-box
PRINTSPR004043.2E-262338IPR002100Transcription factor, MADS-box
PRINTSPR004043.2E-263859IPR002100Transcription factor, MADS-box
PfamPF014868.0E-2187172IPR002487Transcription factor, K-box
PROSITE profilePS5129710.84987178IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0010228Biological Processvegetative to reproductive phase transition of meristem
GO:0048364Biological Processroot development
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Plant Ontology ? help Back to Top
PO Term PO Category PO Description
PO:0000037anatomyshoot apex
PO:0006310anatomytassel floret
PO:0006339anatomyjuvenile vascular leaf
PO:0006340anatomyadult vascular leaf
PO:0006341anatomyprimary shoot system
PO:0006354anatomyear floret
PO:0006505anatomycentral spike of ear inflorescence
PO:0008018anatomytransition vascular leaf
PO:0009001anatomyfruit
PO:0009009anatomyplant embryo
PO:0009025anatomyvascular leaf
PO:0009054anatomyinflorescence bract
PO:0009066anatomyanther
PO:0009074anatomystyle
PO:0009084anatomypericarp
PO:0009089anatomyendosperm
PO:0020040anatomyleaf base
PO:0020104anatomyleaf sheath
PO:0020126anatomytassel inflorescence
PO:0020127anatomyprimary root
PO:0020136anatomyear inflorescence
PO:0020142anatomystem internode
PO:0020148anatomyshoot apical meristem
PO:0025142anatomyleaf tip
PO:0025287anatomyseedling coleoptile
PO:0001007developmental stagepollen development stage
PO:0001009developmental stageD pollen mother cell meiosis stage
PO:0001052developmental stagevascular leaf expansion stage
PO:0001053developmental stagevascular leaf post-expansion stage
PO:0001083developmental stageinflorescence development stage
PO:0001094developmental stageplant embryo coleoptilar stage
PO:0001095developmental stageplant embryo true leaf formation stage
PO:0001180developmental stageplant proembryo stage
PO:0007001developmental stageearly whole plant fruit ripening stage
PO:0007003developmental stageIL.03 full inflorescence length reached stage
PO:0007006developmental stageIL.00 inflorescence just visible stage
PO:0007015developmental stageradicle emergence stage
PO:0007016developmental stagewhole plant flowering stage
PO:0007022developmental stageseed imbibition stage
PO:0007026developmental stageFL.00 first flower(s) open stage
PO:0007031developmental stagemid whole plant fruit ripening stage
PO:0007032developmental stagewhole plant fruit formation stage up to 10%
PO:0007045developmental stagecoleoptile emergence stage
PO:0007063developmental stageLP.07 seven leaves visible stage
PO:0007065developmental stageLP.05 five leaves visible stage
PO:0007072developmental stageLP.18 eighteen leaves visible stage
PO:0007094developmental stageLP.01 one leaf visible stage
PO:0007101developmental stageLP.09 nine leaves visible stage
PO:0007104developmental stageLP.15 fifteen leaves visible stage
PO:0007106developmental stageLP.03 three leaves visible stage
PO:0007112developmental stage1 main shoot growth stage
PO:0007116developmental stageLP.11 eleven leaves visible stage
PO:0007123developmental stageLP.06 six leaves visible stage
PO:0007633developmental stageendosperm development stage
PO:0021004developmental stageinflorescence initiation stage
Sequence ? help Back to Top
Protein Sequence    Length: 221 aa     Download sequence    Send to blast
MARGKVQLRR IENPVHRQVT FCKRRAGLLK KARELSVLCD AHVGIIVFSA HGKLYDLATS  60
GTMEELIERY RTASSREAAD GCGDNNRMDA KQETMVLQQE INLLQKGLRY IYGNRTNEHM  120
NVEELNALER YLEIWMYNIR SAKMQIMIQE IQALKSKEGM LQAANEVLQE KIVEQSSLLD  180
VGMVVADQQN GHFSTVPLVE EMISNPLTIL SGYSNCRGYS F

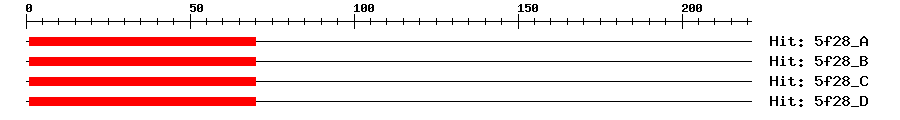

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
5f28_A6e-15170169MEF2C
5f28_B6e-15170169MEF2C
5f28_C6e-15170169MEF2C
5f28_D6e-15170169MEF2C
Search in ModeBase
Expression -- Microarray ? help Back to Top
Source ID
Expression AtlasGRMZM2G117961
Expression -- Description ? help Back to Top
Source Description
UniprotTISSUE SPECIFICITY: Expressed in leaves and spikelets (rice flower). {ECO:0000269|Ref.7}.
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor.
UniProtProbable transcription factor.
Cis-element ? help Back to Top
SourceLink
PlantRegMapGRMZM2G117961_P01
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankKJ7278960.0KJ727896.1 Zea mays clone pUT5990 MADS transcription factor (MADS45) mRNA, partial cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_008648375.11e-164MADS-box transcription factor 26
SwissprotA2YQK91e-138MAD26_ORYSI; MADS-box transcription factor 26
SwissprotQ0J8G81e-138MAD26_ORYSJ; MADS-box transcription factor 26
TrEMBLK7UH321e-163K7UH32_MAIZE; MADS transcription factor (Fragment)
STRINGGRMZM2G117961_P011e-164(Zea mays)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MonocotsOGMP149136112
Representative plantOGRP1617761
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G71692.16e-62AGAMOUS-like 12
Publications ? help Back to Top
  1. Kikuchi S, et al.
    Collection, mapping, and annotation of over 28,000 cDNA clones from japonica rice.
    Science, 2003. 301(5631): p. 376-9
    [PMID:12869764]
  2. Lee S, et al.
    Further characterization of a rice AGL12 group MADS-box gene, OsMADS26.
    Plant Physiol., 2008. 147(1): p. 156-68
    [PMID:18354041]
  3. Khong GN, et al.
    OsMADS26 Negatively Regulates Resistance to Pathogens and Drought Tolerance in Rice.
    Plant Physiol., 2015. 169(4): p. 2935-49
    [PMID:26424158]
