Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID GRMZM2G163813_P01
Common Namepco114323, SBP19, ZEAMMB73_807788
Organism
Zea mays
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; Liliopsida; Petrosaviidae; commelinids; Poales; Poaceae; PACMAD clade; Panicoideae; Andropogonodae; Andropogoneae; Tripsacinae; Zea
Family SBP
Protein Properties Length: 192aa    MW: 21578.3 Da    PI: 11.0477
Description SBP family protein
Gene Model
Gene Model ID Type Source Coding Sequence
GRMZM2G163813_P01genomeMaizeSequenceView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SBP131.92.1e-4161138178
                        --SSTT-----TT--HHHHHTT--HHHHT-S-EEETTEEEEE-TTTSSEEETTT--SS--S-STTTT-------S--- CS
                SBP   1 lCqvegCeadlseakeyhrrhkvCevhskapvvlvsgleqrfCqqCsrfhelsefDeekrsCrrrLakhnerrrkkqa 78
                        +CqvegC  dls++keyhr+h+vCe+h+k+p v+v+g+e+rfCqqCsrfh+lsefD++krsCrrrL++hn+rrrk+q+
  GRMZM2G163813_P01  61 RCQVEGCGLDLSRVKEYHRKHRVCEAHTKSPRVVVAGQERRFCQQCSRFHALSEFDQKKRSCRRRLSDHNARRRKPQP 138
                        6**************************************************************************997 PP

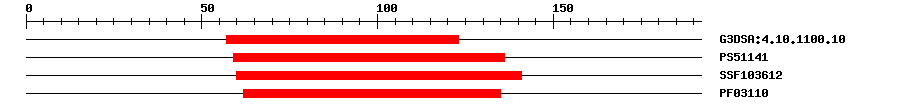

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:4.10.1100.104.2E-3357123IPR004333Transcription factor, SBP-box
PROSITE profilePS5114132.42859136IPR004333Transcription factor, SBP-box
SuperFamilySSF1036127.16E-4060141IPR004333Transcription factor, SBP-box
PfamPF031101.0E-3162135IPR004333Transcription factor, SBP-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
Plant Ontology ? help Back to Top
PO Term PO Category PO Description
PO:0000037anatomyshoot apex
PO:0006310anatomytassel floret
PO:0006339anatomyjuvenile vascular leaf
PO:0006340anatomyadult vascular leaf
PO:0006341anatomyprimary shoot system
PO:0006354anatomyear floret
PO:0006505anatomycentral spike of ear inflorescence
PO:0008018anatomytransition vascular leaf
PO:0009001anatomyfruit
PO:0009009anatomyplant embryo
PO:0009025anatomyvascular leaf
PO:0009054anatomyinflorescence bract
PO:0009066anatomyanther
PO:0009074anatomystyle
PO:0009084anatomypericarp
PO:0009089anatomyendosperm
PO:0020040anatomyleaf base
PO:0020104anatomyleaf sheath
PO:0020126anatomytassel inflorescence
PO:0020127anatomyprimary root
PO:0020136anatomyear inflorescence
PO:0020142anatomystem internode
PO:0020148anatomyshoot apical meristem
PO:0025142anatomyleaf tip
PO:0025287anatomyseedling coleoptile
PO:0001007developmental stagepollen development stage
PO:0001009developmental stageD pollen mother cell meiosis stage
PO:0001052developmental stagevascular leaf expansion stage
PO:0001053developmental stagevascular leaf post-expansion stage
PO:0001083developmental stageinflorescence development stage
PO:0001094developmental stageplant embryo coleoptilar stage
PO:0001095developmental stageplant embryo true leaf formation stage
PO:0001180developmental stageplant proembryo stage
PO:0007001developmental stageearly whole plant fruit ripening stage
PO:0007003developmental stageIL.03 full inflorescence length reached stage
PO:0007006developmental stageIL.00 inflorescence just visible stage
PO:0007015developmental stageradicle emergence stage
PO:0007016developmental stagewhole plant flowering stage
PO:0007022developmental stageseed imbibition stage
PO:0007026developmental stageFL.00 first flower(s) open stage
PO:0007031developmental stagemid whole plant fruit ripening stage
PO:0007032developmental stagewhole plant fruit formation stage up to 10%
PO:0007045developmental stagecoleoptile emergence stage
PO:0007063developmental stageLP.07 seven leaves visible stage
PO:0007065developmental stageLP.05 five leaves visible stage
PO:0007072developmental stageLP.18 eighteen leaves visible stage
PO:0007094developmental stageLP.01 one leaf visible stage
PO:0007101developmental stageLP.09 nine leaves visible stage
PO:0007104developmental stageLP.15 fifteen leaves visible stage
PO:0007106developmental stageLP.03 three leaves visible stage
PO:0007112developmental stage1 main shoot growth stage
PO:0007116developmental stageLP.11 eleven leaves visible stage
PO:0007123developmental stageLP.06 six leaves visible stage
PO:0007633developmental stageendosperm development stage
PO:0021004developmental stageinflorescence initiation stage
Sequence ? help Back to Top
Protein Sequence    Length: 192 aa     Download sequence    Send to blast
MEWTAPKRAA SPPSPPLLWD WGGDHAGATG SGSGSSGDAP ARRGGREREA KRARADDGEV  60
RCQVEGCGLD LSRVKEYHRK HRVCEAHTKS PRVVVAGQER RFCQQCSRFH ALSEFDQKKR  120
SCRRRLSDHN ARRRKPQPDA FAFASARLPS SSFDFPGRKR RGLLRKDKSI SLFPDFPSCY  180
LHNKFSNMIG GK
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1ul4_A2e-26621351184squamosa promoter binding protein-like 4
Search in ModeBase
Nucleic Localization Signal ? help Back to Top
NLS
No. Start End Sequence
1117134KKRSCRRRLSDHNARRRK
Expression -- UniGene ? help Back to Top
UniGene ID E-value Expressed in
Zm.51340.0meristem| shoot
Expression -- Microarray ? help Back to Top
Source ID
Expression AtlasGRMZM2G163813
Expression -- Description ? help Back to Top
Source Description
UniprotTISSUE SPECIFICITY: Expressed in stems, leaf sheaths, and young panicles. {ECO:0000269|PubMed:16861571}.
Functional Description ? help Back to Top
Source Description
UniProtTrans-acting factor that binds specifically to the consensus nucleotide sequence 5'-TNCGTACAA-3' (By similarity). May be involved in panicle development. {ECO:0000250}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapGRMZM2G163813_P01
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Negatively regulated by microRNAs miR156b and miR156h. {ECO:0000305|PubMed:16861571}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankBT0357790.0BT035779.1 Zea mays full-length cDNA clone ZM_BFb0083B18 mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqNP_001132092.11e-138SBP-transcription factor 19 isoform 2
SwissprotQ6H5095e-59SPL4_ORYSJ; Squamosa promoter-binding-like protein 4
TrEMBLB4FF911e-137B4FF91_MAIZE; SBP transcription factor
STRINGGRMZM2G163813_P021e-106(Zea mays)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT5G43270.32e-40squamosa promoter binding protein-like 2
Publications ? help Back to Top
  1. Kikuchi S, et al.
    Collection, mapping, and annotation of over 28,000 cDNA clones from japonica rice.
    Science, 2003. 301(5631): p. 376-9
    [PMID:12869764]
