Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID GRMZM2G370777_P01
Common NameZEAMMB73_462449, Zm.96176
Organism
Zea mays
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; Liliopsida; Petrosaviidae; commelinids; Poales; Poaceae; PACMAD clade; Panicoideae; Andropogonodae; Andropogoneae; Tripsacinae; Zea
Family MIKC_MADS
Protein Properties Length: 228aa    MW: 25450.5 Da    PI: 5.2224
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
GRMZM2G370777_P01genomeMaizeSequenceView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF86.41.6e-27959151
                       S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
             SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                       krie+   rqvtfskRr g++KKAeELSvLCda+va+i+fsstgkl  ++s
  GRMZM2G370777_P01  9 KRIESAAARQVTFSKRRRGLFKKAEELSVLCDADVALIVFSSTGKLSQFAS 59
                       79*********************************************9986 PP
2K-box55.52.5e-19901701898
              K-box  18 qqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenkaLrkkl 98
                        + ++a+L++++ +    +R++ Ge+Le Ls++eLqqLe++Le++l ++ ++K++ +leqi++l +k  +l een++Lr+++
  GRMZM2G370777_P01  90 HSKYANLNEQLVEASLRLRQMRGEELEGLSVEELQQLEKNLESGLHRVLQTKDQQFLEQISDLEQKSTQLAEENRQLRNQV 170
                        344556666666666889************************************************************997 PP
Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5006628.623161IPR002100Transcription factor, MADS-box
SMARTSM004322.0E-36160IPR002100Transcription factor, MADS-box
CDDcd002654.19E-39275No hitNo description
PRINTSPR004048.0E-25323IPR002100Transcription factor, MADS-box
SuperFamilySSF554554.06E-30374IPR002100Transcription factor, MADS-box
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PfamPF003191.7E-251057IPR002100Transcription factor, MADS-box
PRINTSPR004048.0E-252338IPR002100Transcription factor, MADS-box
PRINTSPR004048.0E-253859IPR002100Transcription factor, MADS-box
PROSITE profilePS5129713.58286176IPR002487Transcription factor, K-box
PfamPF014863.3E-1792170IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 228 aa     Download sequence    Send to blast
MARERREIKR IESAAARQVT FSKRRRGLFK KAEELSVLCD ADVALIVFSS TGKLSQFASS  60
SMNEIIDKYS THSKNLGKAE QPSLDLNLEH SKYANLNEQL VEASLRLRQM RGEELEGLSV  120
EELQQLEKNL ESGLHRVLQT KDQQFLEQIS DLEQKSTQLA EENRQLRNQV SHIPPVGKQS  180
VADAENVIAE DGQSSESVMT ALHSGSSQDN DDGSDVSLKL GLPCVAWK

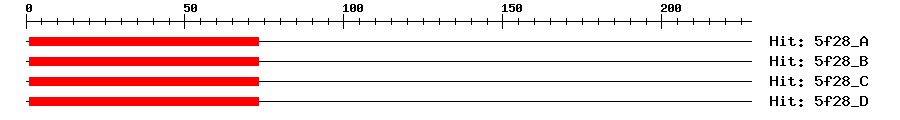

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
5f28_A2e-20173173MEF2C
5f28_B2e-20173173MEF2C
5f28_C2e-20173173MEF2C
5f28_D2e-20173173MEF2C
Search in ModeBase
Expression -- UniGene ? help Back to Top
UniGene ID E-value Expressed in
Zm.961760.0endosperm| leaf| meristem| ovary| pericarp| shoot
Expression -- Microarray ? help Back to Top
Source ID
Expression AtlasGRMZM2G370777
Expression -- Description ? help Back to Top
Source Description
UniprotDEVELOPMENTAL STAGE: Expressed in the L1 cell layer of the embryo 2 days after pollination. {ECO:0000269|PubMed:15682279}.
UniprotTISSUE SPECIFICITY: Expressed in palea and stamen primordia. {ECO:0000269|PubMed:15682279}.
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor. May be required for spikelet (rice flower) development. {ECO:0000269|PubMed:15682279}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapGRMZM2G370777_P01
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankBT0613790.0BT061379.1 Zea mays full-length cDNA clone ZM_BFb0141C08 mRNA, complete cds.
GenBankHQ8586610.0HQ858661.1 Zea mays clone UT600 MADS transcription factor mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqNP_001105148.11e-164MADS19
SwissprotQ9XJ661e-140MAD22_ORYSJ; MADS-box transcription factor 22
TrEMBLC0HGC31e-164C0HGC3_MAIZE; MADS transcription factor
STRINGSb04g033930.11e-159(Sorghum bicolor)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT2G22540.13e-63MIKC_MADS family protein
Publications ? help Back to Top
  1. Lee S,Choi SC,An G
    Rice SVP-group MADS-box proteins, OsMADS22 and OsMADS55, are negative regulators of brassinosteroid responses.
    Plant J., 2008. 54(1): p. 93-105
    [PMID:18182025]
  2. Lee S,Jeong DH,An G
    A possible working mechanism for rice SVP-group MADS-box proteins as negative regulators of brassinosteroid responses.
    Plant Signal Behav, 2008. 3(7): p. 471-4
    [PMID:19704489]
