Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID GRMZM2G481280_P01
Organism
Zea mays
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; Liliopsida; Petrosaviidae; commelinids; Poales; Poaceae; PACMAD clade; Panicoideae; Andropogonodae; Andropogoneae; Tripsacinae; Zea
Family bHLH
Protein Properties Length: 112aa    MW: 11850.4 Da    PI: 8.4862
Description bHLH family protein
Gene Model
Gene Model ID Type Source Coding Sequence
GRMZM2G481280_P01genomeMaizeSequenceView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1HLH39.21.3e-1269112552
                        HHHHHHHHHHHHHHHHHHHHCTSCC.C...TTS-STCHHHHHHHHHHHH CS
                HLH   5 hnerErrRRdriNsafeeLrellPk.askapskKlsKaeiLekAveYIk 52
                        h  +Er+RRdr+++ f eL  l+P+ +      K +K +i+ +Av+YI+
  GRMZM2G481280_P01  69 HIVAERKRRDRMRDYFGELLALMPQiP-----AKSDKGTIVGHAVDYIQ 112
                        889**********************88.....8***************7 PP

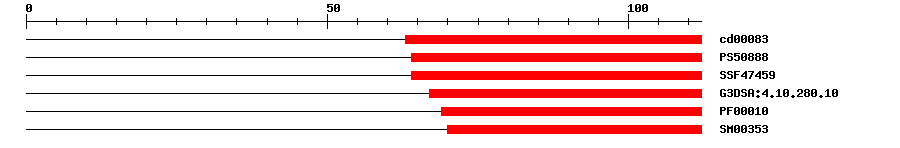

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
CDDcd000831.28E-1263112No hitNo description
PROSITE profilePS5088814.10764112IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
SuperFamilySSF474591.7E-1264112IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
Gene3DG3DSA:4.10.280.101.1E-1167112IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
PfamPF000106.9E-1069112IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
SMARTSM003530.001670112IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0046983Molecular Functionprotein dimerization activity
Plant Ontology ? help Back to Top
PO Term PO Category PO Description
PO:0000037anatomyshoot apex
PO:0006310anatomytassel floret
PO:0006339anatomyjuvenile vascular leaf
PO:0006340anatomyadult vascular leaf
PO:0006341anatomyprimary shoot system
PO:0006354anatomyear floret
PO:0006505anatomycentral spike of ear inflorescence
PO:0008018anatomytransition vascular leaf
PO:0009001anatomyfruit
PO:0009009anatomyplant embryo
PO:0009025anatomyvascular leaf
PO:0009054anatomyinflorescence bract
PO:0009066anatomyanther
PO:0009074anatomystyle
PO:0009084anatomypericarp
PO:0009089anatomyendosperm
PO:0020040anatomyleaf base
PO:0020104anatomyleaf sheath
PO:0020126anatomytassel inflorescence
PO:0020127anatomyprimary root
PO:0020136anatomyear inflorescence
PO:0020142anatomystem internode
PO:0020148anatomyshoot apical meristem
PO:0025142anatomyleaf tip
PO:0025287anatomyseedling coleoptile
PO:0001007developmental stagepollen development stage
PO:0001009developmental stageD pollen mother cell meiosis stage
PO:0001052developmental stagevascular leaf expansion stage
PO:0001053developmental stagevascular leaf post-expansion stage
PO:0001083developmental stageinflorescence development stage
PO:0001094developmental stageplant embryo coleoptilar stage
PO:0001095developmental stageplant embryo true leaf formation stage
PO:0001180developmental stageplant proembryo stage
PO:0007001developmental stageearly whole plant fruit ripening stage
PO:0007003developmental stageIL.03 full inflorescence length reached stage
PO:0007006developmental stageIL.00 inflorescence just visible stage
PO:0007015developmental stageradicle emergence stage
PO:0007016developmental stagewhole plant flowering stage
PO:0007022developmental stageseed imbibition stage
PO:0007026developmental stageFL.00 first flower(s) open stage
PO:0007031developmental stagemid whole plant fruit ripening stage
PO:0007032developmental stagewhole plant fruit formation stage up to 10%
PO:0007045developmental stagecoleoptile emergence stage
PO:0007063developmental stageLP.07 seven leaves visible stage
PO:0007065developmental stageLP.05 five leaves visible stage
PO:0007072developmental stageLP.18 eighteen leaves visible stage
PO:0007094developmental stageLP.01 one leaf visible stage
PO:0007101developmental stageLP.09 nine leaves visible stage
PO:0007104developmental stageLP.15 fifteen leaves visible stage
PO:0007106developmental stageLP.03 three leaves visible stage
PO:0007112developmental stage1 main shoot growth stage
PO:0007116developmental stageLP.11 eleven leaves visible stage
PO:0007123developmental stageLP.06 six leaves visible stage
PO:0007633developmental stageendosperm development stage
PO:0021004developmental stageinflorescence initiation stage
Sequence ? help Back to Top
Protein Sequence    Length: 112 aa     Download sequence    Send to blast
MEYRHSPAAP PNAKGGSGSG CCPENKDVAA PNLSSAAEEV SATVATSDDD GLCKGNKNVA  60
AASKKLKPHI VAERKRRDRM RDYFGELLAL MPQIPAKSDK GTIVGHAVDY IQ
Nucleic Localization Signal ? help Back to Top
NLS
No. Start End Sequence
17277ERKRRD
Expression -- Microarray ? help Back to Top
Source ID
Expression AtlasGRMZM2G481280
Cis-element ? help Back to Top
SourceLink
PlantRegMapGRMZM2G481280_P01
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_008650124.21e-62transcription factor bHLH95
TrEMBLA0A1D6LER06e-65A0A1D6LER0_MAIZE; Uncharacterized protein
STRINGGRMZM2G481280_P011e-77(Zea mays)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MonocotsOGMP20053691
Representative plantOGRP1986822
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G49770.16e-12bHLH family protein
