Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID GRMZM5G805387_P03
Common Namem18, ZEAMMB73_279785
Organism
Zea mays
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; Liliopsida; Petrosaviidae; commelinids; Poales; Poaceae; PACMAD clade; Panicoideae; Andropogonodae; Andropogoneae; Tripsacinae; Zea
Family MIKC_MADS
Protein Properties Length: 212aa    MW: 24877.4 Da    PI: 9.9186
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
GRMZM5G805387_P03genomeMaizeSequenceView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF84.85e-27959151
                       S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
             SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                       krien++nrqvtfskRr+g+ KKA E+ vLCd+ev v+ifss gkly+y+s
  GRMZM5G805387_P03  9 KRIENSTNRQVTFSKRRAGLVKKAREIGVLCDTEVGVVIFSSGGKLYDYCS 59
                       79***********************************************96 PP
2K-box66.49.7e-2371167197
              K-box   1 yqkssgksleeakaeslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenk 92
                        yq++sgk l+ +k+++l+ e++++kke++n+q ++Rhl+GedL+sL+++eL  +e+ L+++ ++ R+k++++++++  + ++ e+e++  +
  GRMZM5G805387_P03  71 YQTNSGKILWGEKHKNLSAEIDRVKKENDNMQIQLRHLKGEDLNSLQHRELIAIEEGLQNGQTNMREKQMDYWRMHKTNGKMLEDEHKILTF 162
                        79999999****************************************************************************99988877 PP

              K-box  93 aLrkk 97
                        +++++
  GRMZM5G805387_P03 163 RMHQQ 167
                        77766 PP

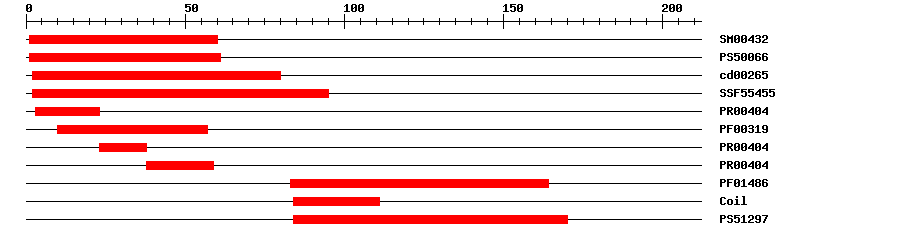

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SMARTSM004323.2E-39160IPR002100Transcription factor, MADS-box
PROSITE profilePS5006631.258161IPR002100Transcription factor, MADS-box
CDDcd002658.71E-41280No hitNo description
SuperFamilySSF554553.79E-32295IPR002100Transcription factor, MADS-box
PRINTSPR004046.5E-28323IPR002100Transcription factor, MADS-box
PfamPF003195.1E-241057IPR002100Transcription factor, MADS-box
PRINTSPR004046.5E-282338IPR002100Transcription factor, MADS-box
PRINTSPR004046.5E-283859IPR002100Transcription factor, MADS-box
PfamPF014861.5E-1483164IPR002487Transcription factor, K-box
PROSITE profilePS5129711.89884170IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Plant Ontology ? help Back to Top
PO Term PO Category PO Description
PO:0000037anatomyshoot apex
PO:0006310anatomytassel floret
PO:0006339anatomyjuvenile vascular leaf
PO:0006340anatomyadult vascular leaf
PO:0006341anatomyprimary shoot system
PO:0006354anatomyear floret
PO:0006505anatomycentral spike of ear inflorescence
PO:0008018anatomytransition vascular leaf
PO:0009001anatomyfruit
PO:0009009anatomyplant embryo
PO:0009025anatomyvascular leaf
PO:0009054anatomyinflorescence bract
PO:0009066anatomyanther
PO:0009074anatomystyle
PO:0009084anatomypericarp
PO:0009089anatomyendosperm
PO:0020040anatomyleaf base
PO:0020104anatomyleaf sheath
PO:0020126anatomytassel inflorescence
PO:0020127anatomyprimary root
PO:0020136anatomyear inflorescence
PO:0020142anatomystem internode
PO:0020148anatomyshoot apical meristem
PO:0025287anatomyseedling coleoptile
PO:0001007developmental stagepollen development stage
PO:0001009developmental stageD pollen mother cell meiosis stage
PO:0001052developmental stagevascular leaf expansion stage
PO:0001053developmental stagevascular leaf post-expansion stage
PO:0001094developmental stageplant embryo coleoptilar stage
PO:0001095developmental stageplant embryo true leaf formation stage
PO:0001180developmental stageplant proembryo stage
PO:0007001developmental stageearly whole plant fruit ripening stage
PO:0007003developmental stageIL.03 full inflorescence length reached stage
PO:0007006developmental stageIL.00 inflorescence just visible stage
PO:0007015developmental stageradicle emergence stage
PO:0007016developmental stagewhole plant flowering stage
PO:0007022developmental stageseed imbibition stage
PO:0007026developmental stageFL.00 first flower(s) open stage
PO:0007031developmental stagemid whole plant fruit ripening stage
PO:0007032developmental stagewhole plant fruit formation stage up to 10%
PO:0007045developmental stagecoleoptile emergence stage
PO:0007063developmental stageLP.07 seven leaves visible stage
PO:0007065developmental stageLP.05 five leaves visible stage
PO:0007072developmental stageLP.18 eighteen leaves visible stage
PO:0007094developmental stageLP.01 one leaf visible stage
PO:0007101developmental stageLP.09 nine leaves visible stage
PO:0007104developmental stageLP.15 fifteen leaves visible stage
PO:0007106developmental stageLP.03 three leaves visible stage
PO:0007112developmental stage1 main shoot growth stage
PO:0007116developmental stageLP.11 eleven leaves visible stage
PO:0007123developmental stageLP.06 six leaves visible stage
PO:0007633developmental stageendosperm development stage
PO:0021004developmental stageinflorescence initiation stage
Sequence ? help Back to Top
Protein Sequence    Length: 212 aa     Download sequence    Send to blast
MGRGKIKIKR IENSTNRQVT FSKRRAGLVK KAREIGVLCD TEVGVVIFSS GGKLYDYCSP  60
RTSLSRILEK YQTNSGKILW GEKHKNLSAE IDRVKKENDN MQIQLRHLKG EDLNSLQHRE  120
LIAIEEGLQN GQTNMREKQM DYWRMHKTNG KMLEDEHKIL TFRMHQQAVD LSGRMRELEI  180
GYHQVQHDRD FISQMPFTFR VQPNHPNLQE DE
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1tqe_P5e-19171169Myocyte-specific enhancer factor 2B
1tqe_Q5e-19171169Myocyte-specific enhancer factor 2B
1tqe_R5e-19171169Myocyte-specific enhancer factor 2B
1tqe_S5e-19171169Myocyte-specific enhancer factor 2B
6c9l_A5e-19171169Myocyte-specific enhancer factor 2B
6c9l_B5e-19171169Myocyte-specific enhancer factor 2B
6c9l_C5e-19171169Myocyte-specific enhancer factor 2B
6c9l_D5e-19171169Myocyte-specific enhancer factor 2B
6c9l_E5e-19171169Myocyte-specific enhancer factor 2B
6c9l_F5e-19171169Myocyte-specific enhancer factor 2B
Search in ModeBase
Expression -- UniGene ? help Back to Top
UniGene ID E-value Expressed in
Zm.3360.0ear| endosperm| ovary| pedicel| pericarp| pollen| shoot| silk
Expression -- Microarray ? help Back to Top
Source ID
Expression AtlasGRMZM5G805387
Expression -- Description ? help Back to Top
Source Description
UniprotTISSUE SPECIFICITY: Highly expressed in lodicules, at intermediate levels in stamens, and weakly in carpels. Expressed in pollen. {ECO:0000269|PubMed:10394955, ECO:0000269|PubMed:12905025, ECO:0000269|Ref.1}.
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor involved in the development of floral organs. B-class protein required for normal development of lodicules and stamens (whorls 2 and 3). May function as a heterodimer with MADS16. {ECO:0000269|PubMed:9869408}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapGRMZM5G805387_P03
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAJ2929600.0AJ292960.1 Zea mays mRNA for putative MADS-domain transcription factor (m18 gene).
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqNP_001288511.11e-157MADS-box transcription factor 4-like
SwissprotQ407031e-124MADS4_ORYSJ; MADS-box transcription factor 4
TrEMBLQ9AR501e-157Q9AR50_MAIZE; MADS18
STRINGGRMZM5G805387_P031e-158(Zea mays)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MonocotsOGMP34343877
Representative plantOGRP53021222
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT5G20240.11e-71MIKC_MADS family protein
Publications ? help Back to Top
  1. Münster T, et al.
    Characterization of three GLOBOSA-like MADS-box genes from maize: evidence for ancient paralogy in one class of floral homeotic B-function genes of grasses.
    Gene, 2001. 262(1-2): p. 1-13
    [PMID:11179662]
  2. Ronai Z, et al.
    Transcription factor binding study by capillary zone electrophoretic mobility shift assay.
    Electrophoresis, 2003. 24(1-2): p. 96-100
    [PMID:12652578]
  3. Kikuchi S, et al.
    Collection, mapping, and annotation of over 28,000 cDNA clones from japonica rice.
    Science, 2003. 301(5631): p. 376-9
    [PMID:12869764]
  4. Kang HG,An G
    Morphological alterations by ectopic expression of the rice OsMADS4 gene in tobacco plants.
    Plant Cell Rep., 2005. 24(2): p. 120-6
    [PMID:15703945]
  5. Cheng CH, et al.
    A fine physical map of the rice chromosome 5.
    Mol. Genet. Genomics, 2005. 274(4): p. 337-45
    [PMID:16261349]
  6. Chen C, et al.
    Adapting rice anther culture to gene transformation and RNA interference.
    Sci. China, C, Life Sci., 2006. 49(5): p. 414-28
    [PMID:17172048]
  7. Yoshida H, et al.
    superwoman1-cleistogamy, a hopeful allele for gene containment in GM rice.
    Plant Biotechnol. J., 2007. 5(6): p. 835-46
    [PMID:17764519]
  8. Yao SG,Ohmori S,Kimizu M,Yoshida H
    Unequal genetic redundancy of rice PISTILLATA orthologs, OsMADS2 and OsMADS4, in lodicule and stamen development.
    Plant Cell Physiol., 2008. 49(5): p. 853-7
    [PMID:18378529]
  9. Seok HY, et al.
    Rice ternary MADS protein complexes containing class B MADS heterodimer.
    Biochem. Biophys. Res. Commun., 2010. 401(4): p. 598-604
    [PMID:20888318]
  10. Wang H, et al.
    OsMADS32 interacts with PI-like proteins and regulates rice flower development.
    J Integr Plant Biol, 2015. 57(5): p. 504-13
    [PMID:25081486]
