Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID GSBRNA2T00006114001
Common NameGSBRNA2T00006114001
Organism
Brassica napus
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassiceae; Brassica
Family MIKC_MADS
Protein Properties Length: 242aa    MW: 27416.5 Da    PI: 9.3479
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
GSBRNA2T00006114001genomeGenoscopeView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF99.99.9e-32958150
                         S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE CS
               SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeys 50
                         krienk+nrqvtfskRrng+lKKA+ELSvLCdaeva+i+fss+gklye+
  GSBRNA2T00006114001  9 KRIENKINRQVTFSKRRNGLLKKAYELSVLCDAEVALIVFSSRGKLYEFG 58
                         79**********************************************95 PP
2K-box94.32e-31761601599
                K-box  15 eslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenkaLrkkle 99
                          ++++qe+akLk+++e+L r++RhllGed++++ +k+Lq Le+qLe +l+  R++K+++++e++e+l+kke++l ++nk+L+ k+e
  GSBRNA2T00006114001  76 KNWCQEVAKLKAKYESLVRTNRHLLGEDIGEMGVKQLQALERQLEAALTATRQRKTQVMMEEMEDLRKKERQLGDINKQLKIKFE 160
                          79*******************************************************************************9987 PP

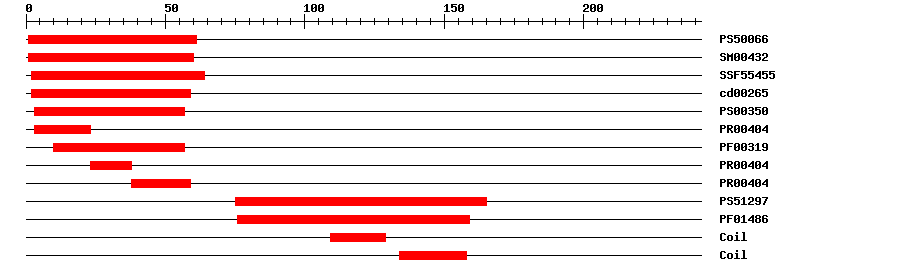

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5006633.389161IPR002100Transcription factor, MADS-box
SMARTSM004326.3E-42160IPR002100Transcription factor, MADS-box
SuperFamilySSF554559.55E-30264IPR002100Transcription factor, MADS-box
CDDcd002651.60E-40259No hitNo description
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PRINTSPR004041.0E-32323IPR002100Transcription factor, MADS-box
PfamPF003191.9E-271057IPR002100Transcription factor, MADS-box
PRINTSPR004041.0E-322338IPR002100Transcription factor, MADS-box
PRINTSPR004041.0E-323859IPR002100Transcription factor, MADS-box
PROSITE profilePS5129714.88975165IPR002487Transcription factor, K-box
PfamPF014862.6E-2976159IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 242 aa     Download sequence    Send to blast
MGRGRVEMKR IENKINRQVT FSKRRNGLLK KAYELSVLCD AEVALIVFSS RGKLYEFGSV  60
GLYLVGILKG CVFYPKNWCQ EVAKLKAKYE SLVRTNRHLL GEDIGEMGVK QLQALERQLE  120
AALTATRQRK TQVMMEEMED LRKKERQLGD INKQLKIKFE AGGHAFKSFQ DFWPNSAASM  180
AGDPNNSKFP VQPSHPDSVD CNTEPFLQIG FQQHYYVQGE GSSVPKSNVA CETNFVQDWV  240
L*

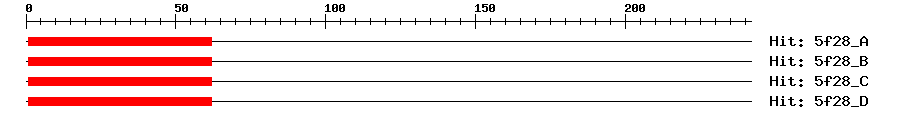

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
5f28_A3e-19162162MEF2C
5f28_B3e-19162162MEF2C
5f28_C3e-19162162MEF2C
5f28_D3e-19162162MEF2C
Search in ModeBase
Expression -- UniGene ? help Back to Top
UniGene ID E-value Expressed in
Bna.114460.0flower| leaf| seed
Expression -- Description ? help Back to Top
Source Description
UniprotTISSUE SPECIFICITY: Preferentially expressed in flowers.
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor. Forms a heterodimer via the K-box domain with AG, that could be involved in genes regulation during floral meristem development.
Cis-element ? help Back to Top
SourceLink
PlantRegMapGSBRNA2T00006114001
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAJ5084090.0AJ508409.1 Brassica oleracea var. botrytis mRNA for MADS-box protein AGL6-a (agl6-a gene), short splice variant.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_013691306.11e-163agamous-like MADS-box protein AGL6
SwissprotP293861e-149AGL6_ARATH; Agamous-like MADS-box protein AGL6
TrEMBLA0A078G1P90.0A0A078G1P9_BRANA; BnaC04g04380D protein
STRINGBra004927.1-P1e-178(Brassica rapa)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM43022654
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT2G45650.11e-138AGAMOUS-like 6
Publications ? help Back to Top
  1. Duarte JM, et al.
    Expression pattern shifts following duplication indicative of subfunctionalization and neofunctionalization in regulatory genes of Arabidopsis.
    Mol. Biol. Evol., 2006. 23(2): p. 469-78
    [PMID:16280546]
  2. Chalhoub B, et al.
    Plant genetics. Early allopolyploid evolution in the post-Neolithic Brassica napus oilseed genome.
    Science, 2014. 345(6199): p. 950-3
    [PMID:25146293]
  3. Dreni L,Zhang D
    Flower development: the evolutionary history and functions of the AGL6 subfamily MADS-box genes.
    J. Exp. Bot., 2016. 67(6): p. 1625-38
    [PMID:26956504]
