Transcription Factor Information

Basic Information | Signature Domain | Sequence |

Basic Information? help Back to Top

TF ID

GSBRNA2T00012206001

Common Name

GSBRNA2T00012206001

Organism

Brassica napus

Taxonomic ID

3708

Taxonomic Lineage

cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassiceae; Brassica

Family

bHLH

Protein Properties

Length: 212aa MW: 23241.9 Da PI: 7.1469

Description

bHLH family protein

Gene Model

Gene Model ID	Type	Source	Coding Sequence
GSBRNA2T00012206001	genome	Genoscope	View CDS

Signature Domain? help Back to Top

No.	Domain	Score	E-value	Start	End	HMM Start	HMM End
1	HLH	36.9	6.4e-12	151	196	5	55
HHHHHHHHHHHHHHHHHHHHCTSCC.C...TTS-STCHHHHHHHHHHHHHHH CS HLH 5 hnerErrRRdriNsafeeLrellPk.askapskKlsKaeiLekAveYIksLq 55 h+++Er RR+ri +++ L+el+P+ + K +Ka++L + ++Y+k Lq GSBRNA2T00012206001 151 HSIAERLRRERIAERMKALQELVPNgN------KTDKASMLDEIIDYVKFLQ 196 99*********************55......****************9 PP

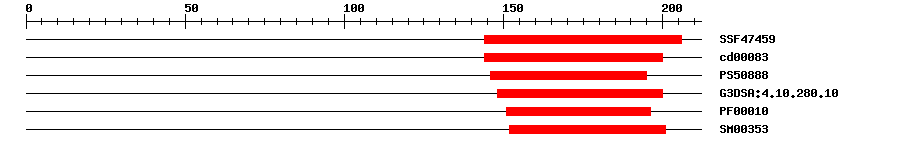

Protein Features ? help Back to Top

Database	Entry ID	E-value	Start	End	InterPro ID	Description
SuperFamily	SSF47459	7.07E-17	144	206	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
CDD	cd00083	2.45E-14	144	200	No hit	No description
PROSITE profile	PS50888	17.409	146	195	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
Gene3D	G3DSA:4.10.280.10	8.3E-16	148	200	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
Pfam	PF00010	2.6E-9	151	196	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
SMART	SM00353	4.0E-14	152	201	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain

Gene Ontology ? help Back to Top
GO Term	GO Category	GO Description
GO:0046983	Molecular Function	protein dimerization activity

Sequence ? help Back to Top
Protein Sequence Length: 212 aa Download sequence Send to blast
MLDSLLTPST SSHMQTSATT FDHEDFLNHI FASAPWPSVD ETHAPQPPPS DVFVDSRNQQ 60 IMMMPLSSHH QNDNVDGSSA HALYSGFSAT GSRPFHIPQG SGGGPMHQQG QTQRQPQQQA 120 SASTDTGGTA VSPSQSRTKV RARRGQATDP HSIAERLRRE RIAERMKALQ ELVPNGNKTD 180 KASMLDEIID YVKFLQLQVK VNLSFIFLLH S*

Nucleic Localization Signal ? help Back to Top

No.	Start	End	Sequence
1	155	160	RLRRER

Cis-element ? help Back to Top
Source	Link
PlantRegMap	GSBRNA2T00012206001

Regulation -- Description ? help Back to Top
Source	Description
UniProt	INDUCTION: By cold, UV, ethylene (ACC), flagellin, jasmonic acid (JA), and salicylic acid (SA) treatments. {ECO:0000269\|PubMed:12679534}.

Regulation -- PlantRegMap ? help Back to Top
Source	Upstream Regulator	Target Gene
PlantRegMap	Retrieve	-

Annotation -- Protein ? help Back to Top
Source	Hit ID	E-value	Description
Refseq	XP_013747024.1	1e-148	transcription factor bHLH66-like isoform X1
Swissprot	Q9ZUG9	9e-88	BH066_ARATH; Transcription factor bHLH66
TrEMBL	A0A078G4H1	1e-154	A0A078G4H1_BRANA; BnaC04g36670D protein
STRING	Bo4g154370.1	1e-131	(Brassica oleracea)

Orthologous Group ? help Back to Top
Lineage	Orthologous Group ID	Taxa Number	Gene Number
Malvids	OGEM3042	27	63

Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID	E-value	Description
AT2G24260.1	4e-77	LJRHL1-like 1

Publications ? help Back to Top
Skinner MK,Rawls A,Wilson-Rawls J,Roalson EH Basic helix-loop-helix transcription factor gene family phylogenetics and nomenclature. Differentiation, 2010. 80(1): p. 1-8 [PMID:20219281] Ding Y, et al. Four distinct types of dehydration stress memory genes in Arabidopsis thaliana. BMC Plant Biol., 2013. 13: p. 229 [PMID:24377444] Chalhoub B, et al. Plant genetics. Early allopolyploid evolution in the post-Neolithic Brassica napus oilseed genome. Science, 2014. 345(6199): p. 950-3 [PMID:25146293] Zhang J, et al. Sperm cells are passive cargo of the pollen tube in plant fertilization. Nat Plants, 2017. 3: p. 17079 [PMID:28585562]
