Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID GSBRNA2T00023050001
Common NameGSBRNA2T00023050001
Organism
Brassica napus
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassiceae; Brassica
Family E2F/DP
Protein Properties Length: 170aa    MW: 18668.6 Da    PI: 5.0573
Description E2F/DP family protein
Gene Model
Gene Model ID Type Source Coding Sequence
GSBRNA2T00023050001genomeGenoscopeView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1E2F_TDP74.98.4e-243297171
              E2F_TDP  1 rkeksLrlltqkflkllekseegivtlnevakeLvsedvknkrRRiYDilNVLealnliekkekneirwkg 71
                         rk+ksL+ll+++fl+l+++   +++ l++++++L    v  +rRRiYDi+NVLe+++++++++kn+++wkg
  GSBRNA2T00023050001 32 RKQKSLGLLCTNFLALYNRHGIETIGLDDASSKL---GV--ERRRIYDIVNVLESVGVLTRRAKNQYTWKG 97
                         79*****************999************...**..****************************98 PP

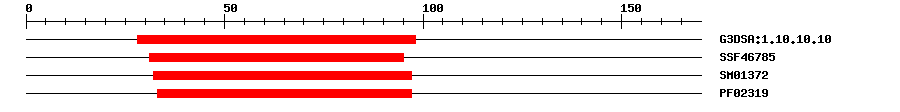

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:1.10.10.102.1E-262898IPR011991Winged helix-turn-helix DNA-binding domain
SuperFamilySSF467853.01E-173195IPR011991Winged helix-turn-helix DNA-binding domain
SMARTSM013722.5E-283297IPR003316E2F/DP family, winged-helix DNA-binding domain
PfamPF023196.0E-213397IPR003316E2F/DP family, winged-helix DNA-binding domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0005667Cellular Componenttranscription factor complex
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 170 aa     Download sequence    Send to blast
MSDLPPEKTN MELSSSSSMP GSSSSLHHSY SRKQKSLGLL CTNFLALYNR HGIETIGLDD  60
ASSKLGVERR RIYDIVNVLE SVGVLTRRAK NQYTWKGFAA IPAALKELQE EGAKDTFHRF  120
YVNENVKGSD DEDDEEESSS QPLSTSQTDT SKPSLPDSSK IGTFCSNLE*
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
4yo2_A6e-1931117393Transcription factor E2F8
Search in ModeBase
Expression -- Description ? help Back to Top
Source Description
UniprotDEVELOPMENTAL STAGE: Expressed in a cell cycle-dependent manner. Not detected during early S phase. Expressed at both the G1/S and S/G2 transitions, with a peak during G2. {ECO:0000269|PubMed:11786543, ECO:0000269|PubMed:18787127}.
UniprotTISSUE SPECIFICITY: Expressed exclusively in mitotically dividing cells. Highly expressed in young leaves and mature flowers. Lower expression in young stalk and in young and mature flowers. {ECO:0000269|PubMed:11867638, ECO:0000269|PubMed:15649366}.
Functional Description ? help Back to Top
Source Description
UniProtInhibitor of E2F-dependent activation of gene expression. Binds specifically the E2 recognition site without interacting with DP proteins and prevents transcription activation by E2F/DP heterodimers. Controls the timing of endocycle onset and inhibits endoreduplication. {ECO:0000269|PubMed:11786543, ECO:0000269|PubMed:11867638, ECO:0000269|PubMed:15649366, ECO:0000269|PubMed:18787127}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapGSBRNA2T00023050001
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_009150874.11e-113PREDICTED: E2F transcription factor-like E2FE
RefseqXP_013716161.11e-113E2F transcription factor-like E2FE
SwissprotQ8LSZ43e-74E2FE_ARATH; E2F transcription factor-like E2FE
TrEMBLA0A078J5L31e-121A0A078J5L3_BRANA; BnaAnng14930D protein
STRINGBra033767.1-P1e-111(Brassica rapa)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM2661233
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G48160.13e-69DP-E2F-like 1
Publications ? help Back to Top
  1. Chandran D, et al.
    Atypical E2F transcriptional repressor DEL1 acts at the intersection of plant growth and immunity by controlling the hormone salicylic acid.
    Cell Host Microbe, 2014. 15(4): p. 506-13
    [PMID:24721578]
  2. Chalhoub B, et al.
    Plant genetics. Early allopolyploid evolution in the post-Neolithic Brassica napus oilseed genome.
    Science, 2014. 345(6199): p. 950-3
    [PMID:25146293]
  3. Wang Z, et al.
    Del1 Knockout Mice Developed More Severe Osteoarthritis Associated with Increased Susceptibility of Chondrocytes to Apoptosis.
    PLoS ONE, 2016. 11(8): p. e0160684
    [PMID:27505251]
  4. Heyman J,Polyn S,Eekhout T,De Veylder L
    Tissue-Specific Control of the Endocycle by the Anaphase Promoting Complex/Cyclosome Inhibitors UVI4 and DEL1.
    Plant Physiol., 2017. 175(1): p. 303-313
    [PMID:28698355]
