Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID GSBRNA2T00057732001
Common NameGSBRNA2T00057732001
Organism
Brassica napus
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassiceae; Brassica
Family E2F/DP
Protein Properties Length: 582aa    MW: 65584.4 Da    PI: 7.5129
Description E2F/DP family protein
Gene Model
Gene Model ID Type Source Coding Sequence
GSBRNA2T00057732001genomeGenoscopeView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1E2F_TDP71.97e-233297171
              E2F_TDP  1 rkeksLrlltqkflkllekseegivtlnevakeLvsedvknkrRRiYDilNVLealnliekkekneirwkg 71
                         rk+ksL+ll+++fl+l+++   +++ l++++++L    v  +rRRiYDi+NVLe+++++++++kn+++wkg
  GSBRNA2T00057732001 32 RKQKSLGLLCTNFLALYNRHGIETIGLDDASSKL---GV--ERRRIYDIVNVLESVGVLTRRAKNQYTWKG 97
                         79*****************999************...**..****************************98 PP
2E2F_TDP78.56e-25164244171
              E2F_TDP   1 rkeksLrlltqkflkllekseegivtlnevakeLvse.....dvknkrRRiYDilNVLealnliek.....kekneirwkg 71
                          r+eksL+lltq+f+kl+ +s+++i++l+e+ak L+ +      +++k+RR+YDi+NVL+++nliek     ++k++++w g
  GSBRNA2T00057732001 164 RREKSLGLLTQNFIKLFICSQATIISLDEAAKLLLGDahntsIMRTKVRRLYDIANVLSSMNLIEKthtldSRKPAFKWLG 244
                          689**************************************999************************9999*******87 PP

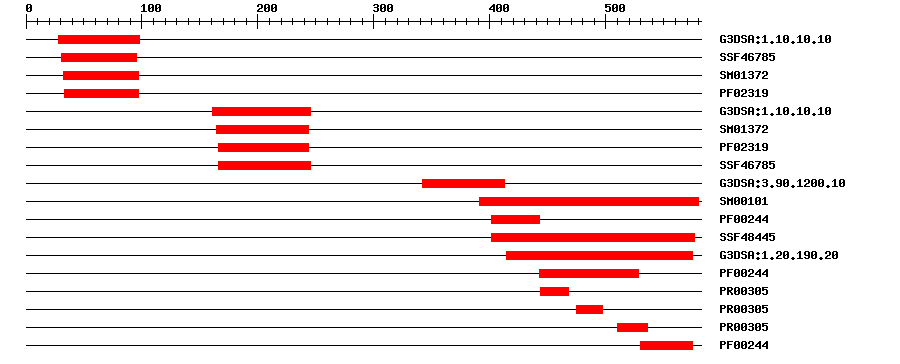

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:1.10.10.102.0E-252898IPR011991Winged helix-turn-helix DNA-binding domain
SuperFamilySSF467854.01E-163195IPR011991Winged helix-turn-helix DNA-binding domain
SMARTSM013722.5E-283297IPR003316E2F/DP family, winged-helix DNA-binding domain
PfamPF023195.0E-203397IPR003316E2F/DP family, winged-helix DNA-binding domain
Gene3DG3DSA:1.10.10.104.1E-23161245IPR011991Winged helix-turn-helix DNA-binding domain
SMARTSM013723.2E-32164244IPR003316E2F/DP family, winged-helix DNA-binding domain
PfamPF023199.7E-20166244IPR003316E2F/DP family, winged-helix DNA-binding domain
SuperFamilySSF467852.24E-13166245IPR011991Winged helix-turn-helix DNA-binding domain
Gene3DG3DSA:3.90.1200.105.6E-5342413No hitNo description
SMARTSM001011.2E-48391580IPR02341014-3-3 domain
PfamPF002441.9E-7401443IPR02341014-3-3 domain
SuperFamilySSF484451.44E-48401576IPR02341014-3-3 domain
Gene3DG3DSA:1.20.190.201.8E-44414575No hitNo description
PfamPF002442.4E-23443528IPR02341014-3-3 domain
PRINTSPR003054.0E-19444468IPR00030814-3-3 protein
PRINTSPR003054.0E-19475497IPR00030814-3-3 protein
PRINTSPR003054.0E-19510536IPR00030814-3-3 protein
PfamPF002443.1E-8530575IPR02341014-3-3 domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0005667Cellular Componenttranscription factor complex
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0019904Molecular Functionprotein domain specific binding
Sequence ? help Back to Top
Protein Sequence    Length: 582 aa     Download sequence    Send to blast
MSDLPPEKTN MELSSSSSMP GPSSSLHHSY SRKQKSLGLL CTNFLALYNR HGIETIGLDD  60
ASSKLGVERR RIYDIVNVLE SVGVLTRRAK NQYTWKGFAA IPAALKELQE EGAKDTFHRF  120
YINENVKGSD DEDDEEESSS QPLSSSQTDT SKPSLPDSSK IDNRREKSLG LLTQNFIKLF  180
ICSQATIISL DEAAKLLLGD AHNTSIMRTK VRRLYDIANV LSSMNLIEKT HTLDSRKPAF  240
KWLGYNGEPT FTLSSDLMMQ AESKKRVFGT DLSNVSVKRS KTHESATERS LKMKHHAIAE  300
SSYNRIFDAH ESRHGSRGYE FGPFAPATGT YPTAPLEDSS KRAFDVENLV SDYRPSYQNQ  360
VLKDLFGHYM DAWKSWIAMQ RCWSLMILVG YMYKDVVPGR EYLHDMVEFL DKVAKTVDTA  420
ELTPEERNLL SIAYKNLIAG RRDHRVKIES EITEICDRIF NLIDSHLLPS ASTADSKVFY  480
LKMKGGYHRY LSDSKTGAEK IKAVKRTLEV YKSAQAIALN DLPSTNTLIS TKAALKTAKA  540
AFEAAITEMH GVREESYEET ALIMNLILDR ITLWTDELKW S*
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
4dx0_A1e-533915751624114-3-3-like protein E
Search in ModeBase
Expression -- Description ? help Back to Top
Source Description
UniprotDEVELOPMENTAL STAGE: Expressed in a cell cycle-dependent manner. Not detected during early S phase. Expressed at both the G1/S and S/G2 transitions, with a peak during G2. {ECO:0000269|PubMed:11786543, ECO:0000269|PubMed:18787127}.
UniprotTISSUE SPECIFICITY: Expressed exclusively in mitotically dividing cells. Highly expressed in young leaves and mature flowers. Lower expression in young stalk and in young and mature flowers. {ECO:0000269|PubMed:11867638, ECO:0000269|PubMed:15649366}.
Functional Description ? help Back to Top
Source Description
UniProtInhibitor of E2F-dependent activation of gene expression. Binds specifically the E2 recognition site without interacting with DP proteins and prevents transcription activation by E2F/DP heterodimers. Controls the timing of endocycle onset and inhibits endoreduplication. {ECO:0000269|PubMed:11786543, ECO:0000269|PubMed:11867638, ECO:0000269|PubMed:15649366, ECO:0000269|PubMed:18787127}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapGSBRNA2T00057732001
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_013583773.10.0PREDICTED: E2F transcription factor-like E2FE
RefseqXP_013672120.20.0E2F transcription factor-like E2FE
RefseqXP_013680925.20.0E2F transcription factor-like E2FE
SwissprotQ8LSZ40.0E2FE_ARATH; E2F transcription factor-like E2FE
TrEMBLA0A078JH830.0A0A078JH83_BRANA; BnaC01g43490D protein
STRINGBo1g074680.10.0(Brassica oleracea)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM63042743
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G48160.20.0DP-E2F-like 1
Publications ? help Back to Top
  1. Chandran D, et al.
    Atypical E2F transcriptional repressor DEL1 acts at the intersection of plant growth and immunity by controlling the hormone salicylic acid.
    Cell Host Microbe, 2014. 15(4): p. 506-13
    [PMID:24721578]
  2. Chalhoub B, et al.
    Plant genetics. Early allopolyploid evolution in the post-Neolithic Brassica napus oilseed genome.
    Science, 2014. 345(6199): p. 950-3
    [PMID:25146293]
  3. Wang Z, et al.
    Del1 Knockout Mice Developed More Severe Osteoarthritis Associated with Increased Susceptibility of Chondrocytes to Apoptosis.
    PLoS ONE, 2016. 11(8): p. e0160684
    [PMID:27505251]
  4. Heyman J,Polyn S,Eekhout T,De Veylder L
    Tissue-Specific Control of the Endocycle by the Anaphase Promoting Complex/Cyclosome Inhibitors UVI4 and DEL1.
    Plant Physiol., 2017. 175(1): p. 303-313
    [PMID:28698355]
