Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID GSBRNA2T00057970001
Common NameGSBRNA2T00057970001
Organism
Brassica napus
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassiceae; Brassica
Family MYB_related
Protein Properties Length: 139aa    MW: 16090.8 Da    PI: 10.6148
Description MYB_related family protein
Gene Model
Gene Model ID Type Source Coding Sequence
GSBRNA2T00057970001genomeGenoscopeView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding27.66.6e-094083145
                         TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHH CS
      Myb_DNA-binding  1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwq 45
                         rg+++ eE+e + ++++      W++Ia++++ gRt k +k+ w+
  GSBRNA2T00057970001 40 RGNFSVEEEETITELHQSIEASMWSKIASKLP-GRTYKVIKNAWN 83
                         89******************************.********9998 PP
Protein Features ? help Back to Top

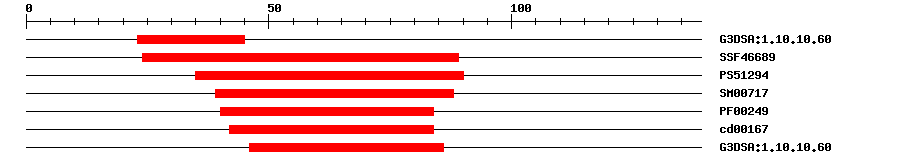

3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:1.10.10.603.4E-82345IPR009057Homeodomain-like
SuperFamilySSF466894.25E-142489IPR009057Homeodomain-like
PROSITE profilePS5129411.5663590IPR017930Myb domain
SMARTSM007170.00373988IPR001005SANT/Myb domain
PfamPF002491.1E-74084IPR001005SANT/Myb domain
CDDcd001671.26E-44284No hitNo description
Gene3DG3DSA:1.10.10.601.5E-144686IPR009057Homeodomain-like
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 139 aa     Download sequence    Send to blast
MGKEERHVVT KPKSLPLNKL VIDKSCRLQW INYLRPDVKR GNFSVEEEET ITELHQSIEA  60
SMWSKIASKL PGRTYKVIKN AWNTGLTIHV QVKQTQGRLY FFTSLKSNEL QSKFSNNNYK  120
KIISLIKIMK KTSIYFIA*
Expression -- Description ? help Back to Top
Source Description
UniprotDEVELOPMENTAL STAGE: In nonelongating internodes, highly expressed in interfascicular fibers and xylem cells but not in parenchymatous pith cells. In elongating internodes, predominantly expressed in protoxylem vessels. {ECO:0000269|PubMed:19122102}.
UniprotTISSUE SPECIFICITY: Expressed in leaves (PubMed:9839469). Specifically expressed in fibers and vessels undergoing secondary wall thickening, especially in inflorescence stems (PubMed:19122102). {ECO:0000269|PubMed:19122102, ECO:0000269|PubMed:9839469}.
Functional Description ? help Back to Top
Source Description
UniProtTranscriptional activator that binds DNA to the AC cis-elements 5'-ACCTACC-3', 5'-ACCAACC-3' and 5'-ACCTAAC-3' of promoters and specifically activates lignin biosynthetic genes during secondary wall formation mediated by SND1. {ECO:0000269|PubMed:19122102}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapGSBRNA2T00057970001
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Slightly induced by light (PubMed:9839469). Regulated by the SND1 close homologs NST1, NST2, VND6, and VND7 and their downstream targets MYB46 and MYB83 (PubMed:19122102, PubMed:22197883). {ECO:0000269|PubMed:19122102, ECO:0000269|PubMed:22197883, ECO:0000269|PubMed:9839469}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankEU5794552e-54EU579455.1 Brassica oleracea clone BAC B77C13, complete sequence.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_013585304.12e-26PREDICTED: myb-related protein Zm1-like
RefseqXP_018515313.12e-26PREDICTED: myb-related protein Myb4-like
SwissprotQ9SA473e-26MYB58_ARATH; Transcription factor MYB58
TrEMBLA0A078HBG21e-96A0A078HBG2_BRANA; BnaA06g11070D protein
TrEMBLA0A3P5YQH01e-96A0A3P5YQH0_BRACM; Uncharacterized protein
STRINGBra026048.1-P8e-26(Brassica rapa)
STRINGBo5g021910.17e-26(Brassica oleracea)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G16490.11e-28myb domain protein 58
Publications ? help Back to Top
  1. Chalhoub B, et al.
    Plant genetics. Early allopolyploid evolution in the post-Neolithic Brassica napus oilseed genome.
    Science, 2014. 345(6199): p. 950-3
    [PMID:25146293]
  2. Fernández-Pérez F,Vivar T,Pomar F,Pedreño MA,Novo-Uzal E
    Peroxidase 4 is involved in syringyl lignin formation in Arabidopsis thaliana.
    J. Plant Physiol., 2015. 175: p. 86-94
    [PMID:25506770]
  3. Noda S, et al.
    The expression of a rice secondary wall-specific cellulose synthase gene, OsCesA7, is directly regulated by a rice transcription factor, OsMYB58/63.
    Planta, 2015. 242(3): p. 589-600
    [PMID:26070439]
  4. Takeuchi M,Kegasa T,Watanabe A,Tamura M,Tsutsumi Y
    Expression analysis of transporter genes for screening candidate monolignol transporters using Arabidopsis thaliana cell suspensions during tracheary element differentiation.
    J. Plant Res., 2018. 131(2): p. 297-305
    [PMID:28921082]
