Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID GSBRNA2T00072845001
Common NameGSBRNA2T00072845001
Organism
Brassica napus
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassiceae; Brassica
Family MYB_related
Protein Properties Length: 285aa    MW: 31713.8 Da    PI: 9.5118
Description MYB_related family protein
Gene Model
Gene Model ID Type Source Coding Sequence
GSBRNA2T00072845001genomeGenoscopeView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding44.83e-143983147
                         TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHH CS
      Myb_DNA-binding  1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqky 47
                         r +WT+eE++++++a +++  + Wk+I   +g  +t  q++s+ qky
  GSBRNA2T00072845001 39 RESWTEEEHDKFLEALQLFDRD-WKKIEDFVG-SKTVIQIRSHAQKY 83
                         789*****************77.*********.*************9 PP

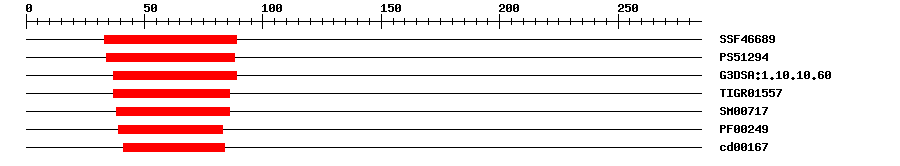

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SuperFamilySSF466891.12E-173389IPR009057Homeodomain-like
PROSITE profilePS5129416.2913488IPR017930Myb domain
Gene3DG3DSA:1.10.10.602.5E-73789IPR009057Homeodomain-like
TIGRFAMsTIGR015578.2E-193786IPR006447Myb domain, plants
SMARTSM007171.1E-113886IPR001005SANT/Myb domain
PfamPF002496.6E-123983IPR001005SANT/Myb domain
CDDcd001672.00E-94184No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 285 aa     Download sequence    Send to blast
MSSSTSRNQT AAEAQPSTDV VAEGSSKKVR KPYTITKSRE SWTEEEHDKF LEALQLFDRD  60
WKKIEDFVGS KTVIQIRSHA QKYFLKVQKN GTLAHVPPPR PKRKAAHPYP QKASKSAQMQ  120
LQVSTSWDDA SMLLNRVISP HQELATFRGP QGTLFPDIGP KGILNVSSPS TSGLGSSSRT  180
FSGSEIVAKQ PPVLHVVPDF SEVYNFIGSV FDPETRLDHV EKLKEMDPIN FETVLLLMRN  240
LTFNLSNPEF ESARKVLSSH EVNTELPSVT TGSFFENSKS YKSS*
Expression -- UniGene ? help Back to Top
UniGene ID E-value Expressed in
Bna.117581e-128flower
Functional Description ? help Back to Top
Source Description
UniProtTranscriptional activator of evening element (EE)-containing clock-controlled genes. Forms a negative feedback loop with APRR5. Regulates the pattern of histone H3 acetylation of the TOC1 promoter. {ECO:0000269|PubMed:21205033, ECO:0000269|PubMed:21474993, ECO:0000269|PubMed:21483796, ECO:0000269|PubMed:23638299}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapGSBRNA2T00072845001
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Circadian-regulation. Peak of expression in the afternoon. Down-regulated by cold. {ECO:0000269|PubMed:21205033, ECO:0000269|PubMed:22902701, ECO:0000269|PubMed:23638299}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAJ9372131e-107AJ937213.1 Arabidopsis thaliana mRNA for myb transcription factor LHY-CCA1-like5 (lcl5 gene), variant 1.
GenBankAY5503071e-107AY550307.1 Arabidopsis thaliana MYB transcription factor (At3g09600) mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_009123299.10.0PREDICTED: protein REVEILLE 8-like isoform X1
SwissprotQ8RWU31e-161RVE8_ARATH; Protein REVEILLE 8
TrEMBLA0A078HVA90.0A0A078HVA9_BRANA; BnaA01g32200D protein
STRINGBra034074.1-P0.0(Brassica rapa)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM93032633
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G09600.11e-135MYB_related family protein
Publications ? help Back to Top
  1. Manfield IW, et al.
    Arabidopsis Co-expression Tool (ACT): web server tools for microarray-based gene expression analysis.
    Nucleic Acids Res., 2006. 34(Web Server issue): p. W504-9
    [PMID:16845059]
  2. Ding Y, et al.
    Four distinct types of dehydration stress memory genes in Arabidopsis thaliana.
    BMC Plant Biol., 2013. 13: p. 229
    [PMID:24377444]
  3. Fogelmark K,Troein C
    Rethinking transcriptional activation in the Arabidopsis circadian clock.
    PLoS Comput. Biol., 2014. 10(7): p. e1003705
    [PMID:25033214]
  4. Chalhoub B, et al.
    Plant genetics. Early allopolyploid evolution in the post-Neolithic Brassica napus oilseed genome.
    Science, 2014. 345(6199): p. 950-3
    [PMID:25146293]
  5. Xing H, et al.
    LNK1 and LNK2 recruitment to the evening element require morning expressed circadian related MYB-like transcription factors.
    Plant Signal Behav, 2015. 10(3): p. e1010888
    [PMID:25848708]
  6. Gray JA,Shalit-Kaneh A,Chu DN,Hsu PY,Harmer SL
    The REVEILLE Clock Genes Inhibit Growth of Juvenile and Adult Plants by Control of Cell Size.
    Plant Physiol., 2017. 173(4): p. 2308-2322
    [PMID:28254761]
