Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID GSBRNA2T00098678001
Common NameGSBRNA2T00098678001
Organism
Brassica napus
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassiceae; Brassica
Family GRF
Protein Properties Length: 365aa    MW: 40500.8 Da    PI: 8.4039
Description GRF family protein
Gene Model
Gene Model ID Type Source Coding Sequence
GSBRNA2T00098678001genomeGenoscopeView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1WRC80.12.1e-25143187145
                  WRC   1 daepgrCrRtDGKkWRCsrrvlegkklCErHlhrgrsrsrkskee 45
                          d+epgrC+RtDGKkWRCsr+v++g+k+C+rH+hrgr+rsrk++e+
  GSBRNA2T00098678001 143 DPEPGRCKRTDGKKWRCSRDVVGGHKYCDRHIHRGRNRSRKPVET 187
                          79****************************************986 PP
2QLQ51.82.6e-1877111337
                  QLQ   3 FTaaQlqlLksQilAyKyLaanqPvPpeLlqaiqk 37
                          F+ aQ+q+L+ Q+l+y+y++a++ vP+eLl++i+k
  GSBRNA2T00098678001  77 FSLAQWQELELQALIYRYMLAGASVPQELLLPIKK 111
                          9********************************86 PP

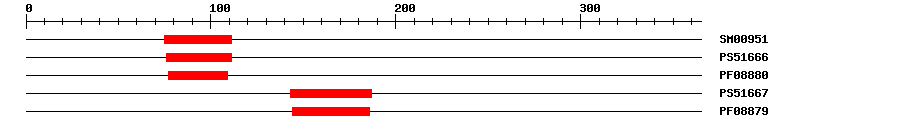

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SMARTSM009519.2E-1175111IPR014978Glutamine-Leucine-Glutamine, QLQ
PROSITE profilePS5166620.23876111IPR014978Glutamine-Leucine-Glutamine, QLQ
PfamPF088806.6E-1377109IPR014978Glutamine-Leucine-Glutamine, QLQ
PROSITE profilePS5166725.647143187IPR014977WRC domain
PfamPF088793.5E-21144186IPR014977WRC domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0005524Molecular FunctionATP binding
Sequence ? help Back to Top
Protein Sequence    Length: 365 aa     Download sequence    Send to blast
MDLQLKQWRS QQQNESEEQS SATKISNFFL DQIRSQTASS AAAALPLFVA EPTSSTSVSC  60
FSPNTSSSRF LKMGNFFSLA QWQELELQAL IYRYMLAGAS VPQELLLPIK KSLFQSPLNF  120
LHHPQQQNFP HHQPWYWGRG AMDPEPGRCK RTDGKKWRCS RDVVGGHKYC DRHIHRGRNR  180
SRKPVETAKP ATTTAASSFV LGEDLGHGPN SLFFSSDSSH SSTKHLHLTS HQSCSSGMKQ  240
ESNKKRPYEA HSGLRSDDGN TLRPFFDDWP RSSDSTSSPM SSSNCHLSIS MPGNTSSDVS  300
LKLSTGDEVE EASNNEREQQ QNMNWWSSGG NHHNMGGPLA EALRSASSTS SVLHQMGISA  360
QVFH*
Expression -- Description ? help Back to Top
Source Description
UniprotDEVELOPMENTAL STAGE: Expressed during the early stages of leaf development and expression decreases with the maturation of the leaf. {ECO:0000269|PubMed:20023165}.
UniprotTISSUE SPECIFICITY: Strongly expressed in actively growing and developing tissues, such as roots, upper stems, and shoot tips containing the shoot apical meristem (SAM) and flower buds. Also expressed in mature flowers, but weakly expressed in mature stems and leaves. {ECO:0000269|PubMed:12974814}.
Functional Description ? help Back to Top
Source Description
UniProtTranscription activator that plays a role in the regulation of cell expansion in leaf and cotyledons tissues. Component of a network formed by miR396, the GRFs and their interacting factors (GIFs) acting in the regulation of meristem function, at least partially through the control of cell proliferation. {ECO:0000250}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapGSBRNA2T00098678001
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: microRNA 396 (miR396a or miR396b) negatively regulates growth-regulating factors (GRF1-4 and GRF7-9). {ECO:0000269|PubMed:15200956, ECO:0000269|PubMed:19453503, ECO:0000269|PubMed:20023165}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_022553251.10.0growth-regulating factor 4-like
SwissprotQ8L8A71e-169GRF4_ARATH; Growth-regulating factor 4
TrEMBLA0A397YQK00.0A0A397YQK0_BRACM; Uncharacterized protein
STRINGBra028541.1-P0.0(Brassica rapa)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM19262667
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G52910.11e-131growth-regulating factor 4
Publications ? help Back to Top
  1. Kuijt SJ, et al.
    Interaction between the GROWTH-REGULATING FACTOR and KNOTTED1-LIKE HOMEOBOX families of transcription factors.
    Plant Physiol., 2014. 164(4): p. 1952-66
    [PMID:24532604]
  2. Chalhoub B, et al.
    Plant genetics. Early allopolyploid evolution in the post-Neolithic Brassica napus oilseed genome.
    Science, 2014. 345(6199): p. 950-3
    [PMID:25146293]
  3. Cao Y,Han Y,Jin Q,Lin Y,Cai Y
    Comparative Genomic Analysis of the GRF Genes in Chinese Pear (Pyrus bretschneideri Rehd), Poplar (Populous), Grape (Vitis vinifera), Arabidopsis and Rice (Oryza sativa).
    Front Plant Sci, 2016. 7: p. 1750
    [PMID:27933074]
