Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID GSBRNA2T00111624001
Common NameGSBRNA2T00111624001
Organism
Brassica napus
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassiceae; Brassica
Family G2-like
Protein Properties Length: 101aa    MW: 11616.1 Da    PI: 5.8971
Description G2-like family protein
Gene Model
Gene Model ID Type Source Coding Sequence
GSBRNA2T00111624001genomeGenoscopeView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1G2-like90.81.2e-282982256
              G2-like  2 prlrWtpeLHerFveaveqLGGsekAtPktilelmkvkgLtlehvkSHLQkYRla 56
                          r++W+++LHerF++ave+L G+++A+Pk+i+e+m+v+gLt+ +v+SHLQkYRl+
  GSBRNA2T00111624001 29 SRVVWSQQLHERFLDAVEHL-GINHAVPKRIMEFMDVDGLTRVEVASHLQKYRLY 82
                         69******************.9*******************************85 PP

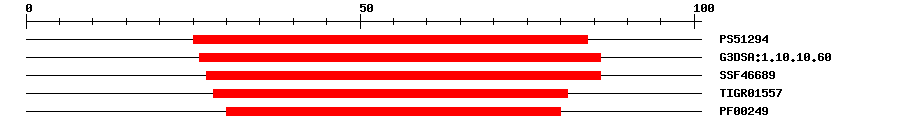

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5129411.6212584IPR017930Myb domain
Gene3DG3DSA:1.10.10.606.1E-282686IPR009057Homeodomain-like
SuperFamilySSF466894.48E-202786IPR009057Homeodomain-like
TIGRFAMsTIGR015575.2E-262881IPR006447Myb domain, plants
PfamPF002491.1E-73080IPR001005SANT/Myb domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 101 aa     Download sequence    Send to blast
MREDDSNWFA GWEKELPSQL QLPSSQANSR VVWSQQLHER FLDAVEHLGI NHAVPKRIME  60
FMDVDGLTRV EVASHLQKYR LYLQKMHEDD LMHAGVGSIS *
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
5lxu_A9e-233084357Transcription factor LUX
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtTranscription factor that is essential for the generation of the circadian clock oscillation. Is necessary for activation of CCA1 and LHY expression. Is coregulated with TOC1 and seems to be repressed by CCA1 and LHY by direct binding of these proteins to the evening element in the LUX promoter. Directly regulates the expression of PRR9, a major component of the morning transcriptional feedback circuit, by binding specific sites on PRR9 promoter. Binds to its own promoter, inducing a negative auto-regulatory feedback loop within the core clock. Binds to ELF3 and associates with ELF4 in a diurnal complex which is required for the expression of the growth-promoting transcription factors PIF4 and PIF5 and subsequent hypocotyl growth in the early evening. {ECO:0000269|PubMed:16006522, ECO:0000269|PubMed:16164597, ECO:0000269|PubMed:21236673, ECO:0000269|PubMed:21753751, ECO:0000269|PubMed:22311777}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapGSBRNA2T00111624001
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Circadian oscillation with peaks at subjective dusk. {ECO:0000269|PubMed:16006522, ECO:0000269|PubMed:16164597, ECO:0000269|PubMed:17132630, ECO:0000269|PubMed:21753751}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAC1894311e-143AC189431.2 Brassica rapa subsp. pekinensis cultivar Inbred line 'Chiifu' clone KBrB068B07, complete sequence.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_006298091.15e-28transcription factor MYBC1
SwissprotQ9SNB44e-22PCL1_ARATH; Transcription factor LUX
TrEMBLA0A3P6A9214e-68A0A3P6A921_BRACM; Uncharacterized protein
STRINGBra001378.1-P6e-63(Brassica rapa)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM15903712
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G10760.14e-28G2-like family protein
Publications ? help Back to Top
  1. Higham CF,Husmeier D
    A Bayesian approach for parameter estimation in the extended clock gene circuit of Arabidopsis thaliana.
    BMC Bioinformatics, 2013. 14 Suppl 10: p. S3
    [PMID:24267177]
  2. Chalhoub B, et al.
    Plant genetics. Early allopolyploid evolution in the post-Neolithic Brassica napus oilseed genome.
    Science, 2014. 345(6199): p. 950-3
    [PMID:25146293]
