Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID GSBRNA2T00124300001
Common NameGSBRNA2T00124300001
Organism
Brassica napus
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassiceae; Brassica
Family MYB
Protein Properties Length: 299aa    MW: 34607.1 Da    PI: 9.5204
Description MYB family protein
Gene Model
Gene Model ID Type Source Coding Sequence
GSBRNA2T00124300001genomeGenoscopeView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding38.82.1e-1272118147
                          TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-.HHHHHHHHHHH CS
      Myb_DNA-binding   1 rgrWTteEdellvdavkqlGggtWktIartmgkgRt.lkqcksrwqky 47
                          rg W ++Ed +l+++v++ G+ +W++Ia++++ gR+ +k+c++rw++
  GSBRNA2T00124300001  72 RGHWRPDEDAKLKKLVALDGPQNWNLIAEKLQ-GRSaGKSCRLRWFNQ 118
                          899*****************************.999459******996 PP
2Myb_DNA-binding57.23.8e-18125168146
                          TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHH CS
      Myb_DNA-binding   1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqk 46
                          r ++++eE+e+l +a++++G++ W+ Iar ++ gRt++++k++w+
  GSBRNA2T00124300001 125 RRAFSEEEEERLMQAHNLYGNK-WAMIARFFP-GRTDNSVKNHWHV 168
                          678*******************.*********.***********96 PP

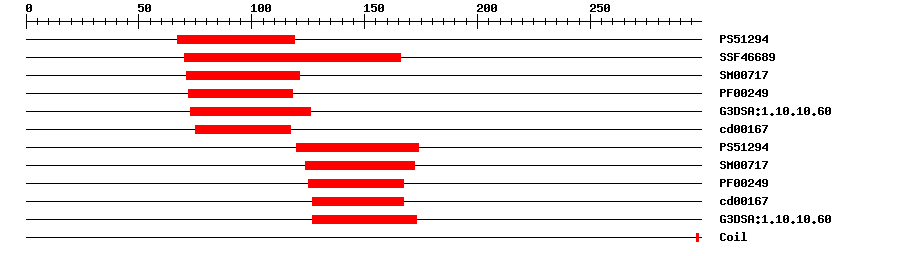

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5129414.75467119IPR017930Myb domain
SuperFamilySSF466897.81E-2670166IPR009057Homeodomain-like
SMARTSM007179.1E-871121IPR001005SANT/Myb domain
PfamPF002494.7E-1272118IPR001005SANT/Myb domain
Gene3DG3DSA:1.10.10.601.0E-2273126IPR009057Homeodomain-like
CDDcd001671.27E-975117No hitNo description
PROSITE profilePS5129425.911120174IPR017930Myb domain
SMARTSM007177.6E-15124172IPR001005SANT/Myb domain
PfamPF002493.6E-15125167IPR001005SANT/Myb domain
CDDcd001671.59E-11127167No hitNo description
Gene3DG3DSA:1.10.10.603.6E-21127173IPR009057Homeodomain-like
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 299 aa     Download sequence    Send to blast
MSEDHRRWMD QTASCGYFSL DISNYQHIGH SYASNREEEI KNPNQSNYGK RSKKDTRVCG  60
SFRHSSKASV VRGHWRPDED AKLKKLVALD GPQNWNLIAE KLQGRSAGKS CRLRWFNQLD  120
PRINRRAFSE EEEERLMQAH NLYGNKWAMI ARFFPGRTDN SVKNHWHVIM ARKFRGQSSV  180
YRRRKTVIPL KPLVNPNPQY SCNDFDPSRS DTIHLVSNDK NHLMLPIPCF PGYAHGNESP  240
LMLGMLENQM MVDDHSARTR EATTFDFLNQ TEKCEMLGEG MNEQKKPHFF DFLGLGTV*
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1gv2_A2e-29701742105MYB PROTO-ONCOGENE PROTEIN
Search in ModeBase
Expression -- Description ? help Back to Top
Source Description
UniprotTISSUE SPECIFICITY: Expressed in organ boundaries. {ECO:0000269|PubMed:19542355}.
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor that involved in boundary specification, meristem initiation and maintenance, and organ patterning. Functions in both lateral organ separation and axillary meristem formation. {ECO:0000269|PubMed:19542355}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapGSBRNA2T00124300001
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_018508498.10.0PREDICTED: myb-related protein 330-like
RefseqXP_022545310.10.0transcription factor MYB105-like
SwissprotQ9SEZ41e-152MY105_ARATH; Transcription factor MYB105
TrEMBLA0A078EZ160.0A0A078EZ16_BRANA; BnaA07g24240D protein
TrEMBLA0A3P6BD590.0A0A3P6BD59_BRACM; Uncharacterized protein
STRINGBra003995.1-P0.0(Brassica rapa)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM12102896
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G69560.11e-154myb domain protein 105
Publications ? help Back to Top
  1. Duarte JM, et al.
    Expression pattern shifts following duplication indicative of subfunctionalization and neofunctionalization in regulatory genes of Arabidopsis.
    Mol. Biol. Evol., 2006. 23(2): p. 469-78
    [PMID:16280546]
  2. Chalhoub B, et al.
    Plant genetics. Early allopolyploid evolution in the post-Neolithic Brassica napus oilseed genome.
    Science, 2014. 345(6199): p. 950-3
    [PMID:25146293]
