Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID GSBRNA2T00125127001
Common NameGSBRNA2T00125127001, LOC106384221
Organism
Brassica napus
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassiceae; Brassica
Family MYB
Protein Properties Length: 467aa    MW: 52275.8 Da    PI: 8.3435
Description MYB family protein
Gene Model
Gene Model ID Type Source Coding Sequence
GSBRNA2T00125127001genomeGenoscopeView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding48.61.8e-1558101448
                          S-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHHT CS
      Myb_DNA-binding   4 WTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqkyl 48
                          WTteEde+l ++v ++  ++Wk++a+ ++  Rt+ qc +rwqk+l
  GSBRNA2T00125127001  58 WTTEEDEILRQGVCRFKAKSWKKVAEFLP-DRTEVQCMHRWQKVL 101
                          *****************************.************986 PP
2Myb_DNA-binding59.85.7e-19107153148
                          TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHHT CS
      Myb_DNA-binding   1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqkyl 48
                          +g WT++Ede +v++v+++G++ W++I++ ++ gR +kqc++rw+++l
  GSBRNA2T00125127001 107 KGHWTQQEDETIVELVEKYGPKKWSLISQSLP-GRIGKQCRERWYNHL 153
                          789*****************************.*************97 PP
3Myb_DNA-binding56.56.4e-18159202146
                          TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHH CS
      Myb_DNA-binding   1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqk 46
                          + +WT+eE++ l++a+  +G++ W+ Ia+ ++ gRt++++k++w++
  GSBRNA2T00125127001 159 KEAWTPEEELALLNAHVIYGNK-WAEIAKVLP-GRTDNSIKNHWNS 202
                          579*******************.*********.***********96 PP

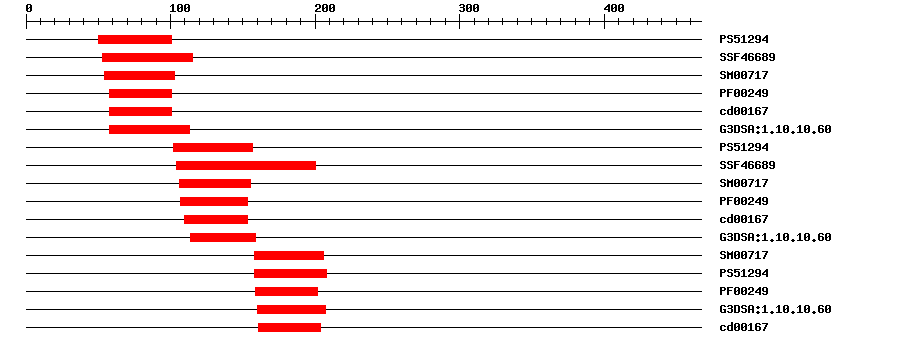

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5129415.13450101IPR017930Myb domain
SuperFamilySSF466892.21E-1853115IPR009057Homeodomain-like
SMARTSM007171.6E-1254103IPR001005SANT/Myb domain
PfamPF002494.5E-1458101IPR001005SANT/Myb domain
CDDcd001676.56E-1258101No hitNo description
Gene3DG3DSA:1.10.10.604.2E-2158113IPR009057Homeodomain-like
PROSITE profilePS5129431.33102157IPR017930Myb domain
SuperFamilySSF466897.55E-32104200IPR009057Homeodomain-like
SMARTSM007172.6E-18106155IPR001005SANT/Myb domain
PfamPF002498.5E-18107153IPR001005SANT/Myb domain
CDDcd001673.57E-15110153No hitNo description
Gene3DG3DSA:1.10.10.603.8E-26114159IPR009057Homeodomain-like
SMARTSM007171.5E-17158206IPR001005SANT/Myb domain
PROSITE profilePS5129422.389158208IPR017930Myb domain
PfamPF002493.6E-16159202IPR001005SANT/Myb domain
Gene3DG3DSA:1.10.10.609.9E-24160207IPR009057Homeodomain-like
CDDcd001675.00E-13161204No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 467 aa     Download sequence    Send to blast
MEDECIESKQ STAVSPSSVS EGSSSSFLKS PGAVPTATVS STHRRTSGPM RRTKGAGWTT  60
EEDEILRQGV CRFKAKSWKK VAEFLPDRTE VQCMHRWQKV LDPNLNKGHW TQQEDETIVE  120
LVEKYGPKKW SLISQSLPGR IGKQCRERWY NHLNPGINKE AWTPEEELAL LNAHVIYGNK  180
WAEIAKVLPG RTDNSIKNHW NSSLKKKSEF LLANGSLPPT PKYATTKPTP AKPVMAATSS  240
AKNGVLDGAT TQFKKPDEEG KDQTNSSVLP QEVVAASPVT SVSEYACSPQ LPNPENGYPL  300
YYKPQREYYY MASEADKQRM YGYEYGCSLS TPPVIFFTPL PPCRKDYSNG SGPTSLESFL  360
REAARTFPNM PSIIRKRPRK FVVAPGHNKT DEEEAAKEVV DEKVSPDCEE EEEKQKDGLN  420
AYYISPPYRI GSKRRAVLKS RQLEFISPEA ERGDDETKSP EKDKVA*
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1h88_C1e-63582079158MYB PROTO-ONCOGENE PROTEIN
1h89_C1e-63582079158MYB PROTO-ONCOGENE PROTEIN
Search in ModeBase
Expression -- Description ? help Back to Top
Source Description
UniprotDEVELOPMENTAL STAGE: Expressed both in proliferating and maturing stages of leaves. {ECO:0000269|PubMed:26069325}.
Functional Description ? help Back to Top
Source Description
UniProtTranscription factor that binds 5'-AACGG-3' motifs in gene promoters (By similarity). Transcription repressor that regulates organ growth. Binds to the promoters of G2/M-specific genes and to E2F target genes to prevent their expression in post-mitotic cells and to restrict the time window of their expression in proliferating cells (PubMed:26069325). {ECO:0000250|UniProtKB:Q94FL9, ECO:0000269|PubMed:26069325}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapGSBRNA2T00125127001
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Slightly induced by ethylene, auxin (IAA), jasmonic acid (JA) and salicylic acid (SA). {ECO:0000269|PubMed:16463103}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAC1893940.0AC189394.2 Brassica rapa subsp. pekinensis cultivar Inbred line 'Chiifu' clone KBrB055G10, complete sequence.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_022553894.10.0transcription factor MYB3R-3
SwissprotQ8H1P90.0MB3R3_ARATH; Transcription factor MYB3R-3
TrEMBLA0A078F0G30.0A0A078F0G3_BRANA; BnaC03g35980D protein
STRINGBo3g062020.10.0(Brassica oleracea)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM16672887
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G09370.11e-175myb domain protein 3r-3
Publications ? help Back to Top
  1. Ding Y, et al.
    Four distinct types of dehydration stress memory genes in Arabidopsis thaliana.
    BMC Plant Biol., 2013. 13: p. 229
    [PMID:24377444]
  2. Chalhoub B, et al.
    Plant genetics. Early allopolyploid evolution in the post-Neolithic Brassica napus oilseed genome.
    Science, 2014. 345(6199): p. 950-3
    [PMID:25146293]
  3. Kobayashi K, et al.
    Transcriptional repression by MYB3R proteins regulates plant organ growth.
    EMBO J., 2015. 34(15): p. 1992-2007
    [PMID:26069325]
  4. Chen P, et al.
    Arabidopsis R1R2R3-Myb proteins are essential for inhibiting cell division in response to DNA damage.
    Nat Commun, 2017. 8(1): p. 635
    [PMID:28935922]
