Transcription Factor Information

Basic Information | Signature Domain | Sequence |

Basic Information? help Back to Top

TF ID

GSBRNA2T00150984001

Common Name

GSBRNA2T00150984001

Organism

Brassica napus

Taxonomic ID

3708

Taxonomic Lineage

cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassiceae; Brassica

Family

bHLH

Protein Properties

Length: 164aa MW: 18170.1 Da PI: 10.5914

Description

bHLH family protein

Gene Model

Gene Model ID	Type	Source	Coding Sequence
GSBRNA2T00150984001	genome	Genoscope	View CDS

Signature Domain? help Back to Top

No.	Domain	Score	E-value	Start	End	HMM Start	HMM End
1	HLH	41	3.5e-13	4	50	3	54
HHHHHHHHHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHH CS HLH 3 rahnerErrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksL 54 ++h+ +ErrRR riN fe Lr++lP++ K +Ka++L ++v+Y k+L GSBRNA2T00150984001 4 KKHSDAERRRRLRINCQFEALRTILPNL-----IKQDKASVLGETVRYFKEL 50 68***********************9.....6**************99 PP

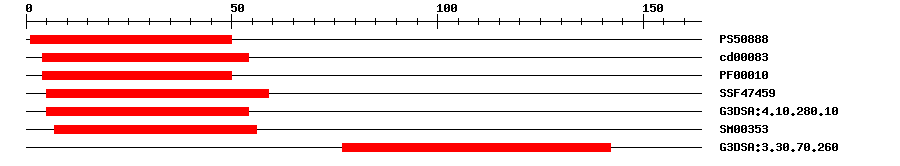

Protein Features ? help Back to Top

Database	Entry ID	E-value	Start	End	InterPro ID	Description
PROSITE profile	PS50888	15.32	1	50	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
CDD	cd00083	5.27E-10	4	54	No hit	No description
Pfam	PF00010	5.9E-11	4	50	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
SuperFamily	SSF47459	5.23E-13	5	59	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
Gene3D	G3DSA:4.10.280.10	2.4E-13	5	54	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
SMART	SM00353	9.9E-12	7	56	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
Gene3D	G3DSA:3.30.70.260	4.7E-5	77	142	No hit	No description

Gene Ontology ? help Back to Top
GO Term	GO Category	GO Description
GO:0046983	Molecular Function	protein dimerization activity

Sequence ? help Back to Top
Protein Sequence Length: 164 aa Download sequence Send to blast
MAAKKHSDAE RRRRLRINCQ FEALRTILPN LIKQDKASVL GETVRYFKEL KKLVNEIPTT 60 PSLEDSLRLG QCKNRDFARV VFSCSDREGL MSEVAESMKA ADAKAVRAEM MTVGGRTKCV 120 LFVQGVNGNE GLVKLKKALK PVVNRKPEAT NNNNAGSLLP QQQ*

Cis-element ? help Back to Top
Source	Link
PlantRegMap	GSBRNA2T00150984001

Regulation -- PlantRegMap ? help Back to Top
Source	Upstream Regulator	Target Gene
PlantRegMap	Retrieve	-

Annotation -- Nucleotide ? help Back to Top
Source	Hit ID	E-value	Description
GenBank	AJ577587	1e-132	AJ577587.1 Arabidopsis thaliana mRNA for putative bHLH131 transcription factor (bHLH131 gene).

Annotation -- Protein ? help Back to Top
Source	Hit ID	E-value	Description
Refseq	XP_018509548.1	1e-112	PREDICTED: transcription factor bHLH131
Swissprot	P0CB25	7e-84	BH131_ARATH; Transcription factor bHLH131
TrEMBL	A0A397YC67	1e-112	A0A397YC67_BRACM; Uncharacterized protein
STRING	Bra010635.1-P	1e-112	(Brassica rapa)

Orthologous Group ? help Back to Top
Lineage	Orthologous Group ID	Taxa Number	Gene Number
Malvids	OGEM13939	20	25

Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID	E-value	Description
AT4G38070.1	8e-80	bHLH family protein

Publications ? help Back to Top
Chalhoub B, et al. Plant genetics. Early allopolyploid evolution in the post-Neolithic Brassica napus oilseed genome. Science, 2014. 345(6199): p. 950-3 [PMID:25146293]
