Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID GSMUA_Achr9P01370_001
Organism
Musa acuminata
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; Liliopsida; Petrosaviidae; commelinids; Zingiberales; Musaceae; Musa
Family MIKC_MADS
Protein Properties Length: 243aa    MW: 27687.7 Da    PI: 8.6536
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
GSMUA_Achr9P01370_001genomeCIRADView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF99.51.3e-31959151
                           S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
                 SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                           krienk+nrqvtf+kRrng+lKKA+ELSvLCdaeva+i+fs++gklye++s
  GSMUA_Achr9P01370_001  9 KRIENKINRQVTFAKRRNGLLKKAYELSVLCDAEVALIVFSNRGKLYEFCS 59
                           79***********************************************96 PP
2K-box98.88e-33841721199
                  K-box  11 eakaeslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenkaLrkkl 98
                            +++ +++qqe+ kLk+++e Lqr+qR+llGedL++Ls+keL+qLe+qL+ sl++iRs++++ +l+q+ +lq++e++l e+nkaL+ ++
  GSMUA_Achr9P01370_001  84 SREIQTSQQEYLKLKARVEALQRSQRNLLGEDLGPLSIKELEQLERQLDASLRQIRSTRTQCMLDQLADLQRREQMLCEANKALKIRM 171
                            67799*******************************************************************************9776 PP

                  K-box  99 e 99
                            +
  GSMUA_Achr9P01370_001 172 D 172
                            5 PP

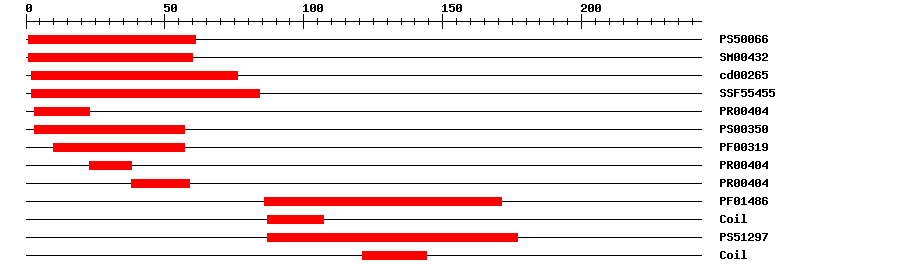

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5006633.473161IPR002100Transcription factor, MADS-box
SMARTSM004321.1E-41160IPR002100Transcription factor, MADS-box
CDDcd002651.64E-45276No hitNo description
SuperFamilySSF554556.93E-34284IPR002100Transcription factor, MADS-box
PRINTSPR004048.6E-33323IPR002100Transcription factor, MADS-box
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PfamPF003191.5E-261057IPR002100Transcription factor, MADS-box
PRINTSPR004048.6E-332338IPR002100Transcription factor, MADS-box
PRINTSPR004048.6E-333859IPR002100Transcription factor, MADS-box
PfamPF014863.8E-2786171IPR002487Transcription factor, K-box
PROSITE profilePS5129715.2687177IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0001708Biological Processcell fate specification
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0010093Biological Processspecification of floral organ identity
GO:0048481Biological Processplant ovule development
GO:0048833Biological Processspecification of floral organ number
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 243 aa     Download sequence    Send to blast
MGRGRVELKR IENKINRQVT FAKRRNGLLK KAYELSVLCD AEVALIVFSN RGKLYEFCSS  60
SSMLKTLERY QKCNYGAPET NIISREIQTS QQEYLKLKAR VEALQRSQRN LLGEDLGPLS  120
IKELEQLERQ LDASLRQIRS TRTQCMLDQL ADLQRREQML CEANKALKIR MDEGNQANQQ  180
QLWDPNAQAV AYCRHQPQPQ GDGFFQPIEC EPTLQIGYHP DQMAIAAAAP GPSVSSYVPG  240
WLA

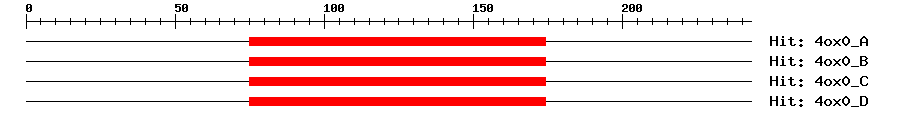

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
4ox0_A3e-40751741104Developmental protein SEPALLATA 3
4ox0_B3e-40751741104Developmental protein SEPALLATA 3
4ox0_C3e-40751741104Developmental protein SEPALLATA 3
4ox0_D3e-40751741104Developmental protein SEPALLATA 3
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor involved in flower development. {ECO:0000250|UniProtKB:Q0HA25}.
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00605ChIP-seqTransfer from AT1G24260Download
Motif logo
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankKM2617780.0KM261778.1 Musa acuminata MADS-box transcription factor 2 isoform 1 (MalMADS2.1) mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_009415892.10.0PREDICTED: agamous-like MADS-box protein AGL9 homolog isoform X1
SwissprotQ8LLR01e-141MADS4_VITVI; Agamous-like MADS-box protein MADS4
TrEMBLM0TWJ41e-179M0TWJ4_MUSAM; Uncharacterized protein
STRINGGSMUA_Achr9P01370_0011e-180(Musa acuminata)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MonocotsOGMP34833469
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G24260.11e-111MIKC_MADS family protein
Publications ? help Back to Top
  1. Jaillon O, et al.
    The grapevine genome sequence suggests ancestral hexaploidization in major angiosperm phyla.
    Nature, 2007. 449(7161): p. 463-7
    [PMID:17721507]
  2. Díaz-Riquelme J,Lijavetzky D,Martínez-Zapater JM,Carmona MJ
    Genome-wide analysis of MIKCC-type MADS box genes in grapevine.
    Plant Physiol., 2009. 149(1): p. 354-69
    [PMID:18997115]
  3. Grimplet J,Martínez-Zapater JM,Carmona MJ
    Structural and functional annotation of the MADS-box transcription factor family in grapevine.
    BMC Genomics, 2016. 17: p. 80
    [PMID:26818751]
